购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HL021R6BTTRFIXED IND 1.6NH 339MA 137MOHM SM KYOCERA AVX |
8,692 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.6 nH | ±0.1nH | 339 mA | - | Unshielded | 137mOhm Max | 25 @ 450MHz | 13.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL021R2BTTRFIXED IND 1.2NH 343MA 107MOHM SM KYOCERA AVX |
7,247 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.2 nH | ±0.1nH | 343 mA | - | Unshielded | 107mOhm Max | 24 @ 450MHz | 16.35GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLQ022R2BTTRFIXED IND 2.2NH 245MA 200MOHM SM KYOCERA AVX |
4,667 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.2 nH | ±0.1nH | 245 mA | - | Unshielded | 200mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL021R5BTTRFIXED IND 1.5NH 340MA 128MOHM SM KYOCERA AVX |
8,500 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.5 nH | ±0.1nH | 340 mA | - | Unshielded | 128mOhm Max | 25 @ 450MHz | 14GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL022R4BTTRFIXED IND 2.4NH 330MA 192MOHM SM KYOCERA AVX |
6,619 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.4 nH | ±0.1nH | 330 mA | - | Unshielded | 192mOhm Max | 27 @ 450MHz | 9.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
LMLP0405M6R8DTASFIXED IND 6.8UH 1.5A 175MOHM SMD KYOCERA AVX |
2,931 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 1.5 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.157" W (4.45mm x 4.00mm) | 0.079" (2.00mm) |
|
L06035R6CGWTRFIXED IND 5.6NH 300MA 250MOHM SM KYOCERA AVX |
7,211 |
|
规格书 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 5.6 nH | ±0.2nH | 300 mA | - | Unshielded | 250mOhm Max | 26 @ 450MHz | 5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
LMLP07C7M1R0DTASFIXED IND 1UH 15A 6.5 MOHM SMD KYOCERA AVX |
2,168 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 15 A | 20A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

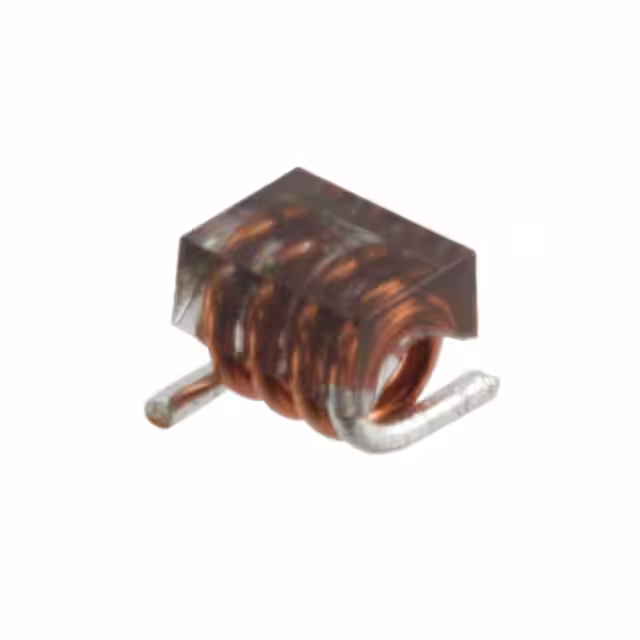

AL12A08N0GTRFIXED IND 8NH 4A 2.6 MOHM SMD KYOCERA AVX |
376 |
|
规格书 |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±2% | 4 A | - | Unshielded | 2.6mOhm Max | 140 @ 150MHz | 5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
LCCI0402J18NGTARFIXED IND 18NH 300MA 650MOHM SMD KYOCERA AVX |
50,000 |
|
规格书 |
LCCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 8 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
