购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L02011R8BHSTR\500FIXED IND 1.8NH 250MA 500MOHM SM KYOCERA AVX |
4,677 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.8 nH | ±0.1nH | 250 mA | - | Unshielded | 500mOhm Max | 7 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|

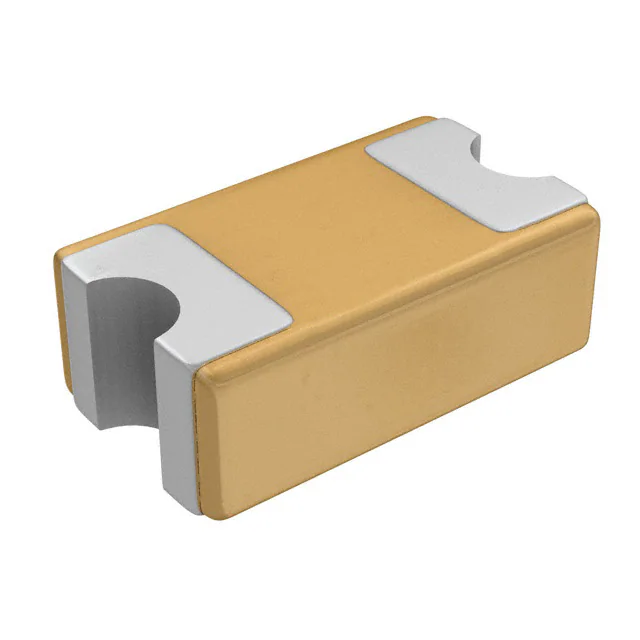

HLC02320HTTRFIXED IND 32NH 175MA 2.2 OHM SMD KYOCERA AVX |
2,670 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 32 nH | ±3% | 175 mA | - | Unshielded | 2.2Ohm Max | 28 @ 450MHz | 2GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC022R0BTTRFIXED IND 2NH 596MA 180 MOHM SMD KYOCERA AVX |
3,004 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2 nH | ±0.1nH | 596 mA | - | Unshielded | 180mOhm Max | 26 @ 450MHz | 17GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L02012R7BHSTR\500FIXED IND 2.7NH 180MA 700MOHM SM KYOCERA AVX |
2,625 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.1nH | 180 mA | - | Unshielded | 700mOhm Max | 7 @ 450MHz | 14GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
LMLP07A7MR68DTASFIXED IND 680NH 15.5A 5.5MOHM SM KYOCERA AVX |
50,698 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LMLP0506M3R3DTASFIXED IND 3.3UH 5A 38 MOHM SMD KYOCERA AVX |
4,463 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 5 A | 6A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
LMLP0506M6R8DTASFIXED IND 6.8UH 3A 90 MOHM SMD KYOCERA AVX |
2,235 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3 A | 4A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
LMLP0506M4R7DTASFIXED IND 4.7UH 3.5A 60MOHM SMD KYOCERA AVX |
1,901 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 3.5 A | 5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
LMLP0506M100DTASFIXED IND 10UH 2.5A 125MOHM SMD KYOCERA AVX |
1,339 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 2.5 A | 3.5A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
L04021R5BHNTRFIXED IND 1.5NH 400MA 200MOHM SM KYOCERA AVX |
10,318 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.5 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 20 @ 450MHz | 18GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
