| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9409TFIXED IND 10UH 2.7A 42.9MOHM SMD iNRCORE, LLC |
2,650 |
|
规格书 |
PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.7 A | 2.7A | Shielded | 42.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL8161NLTFIXED IND 4.2UH 11.4A 5.4MOHM SM iNRCORE, LLC |
2,410 |
|
规格书 |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

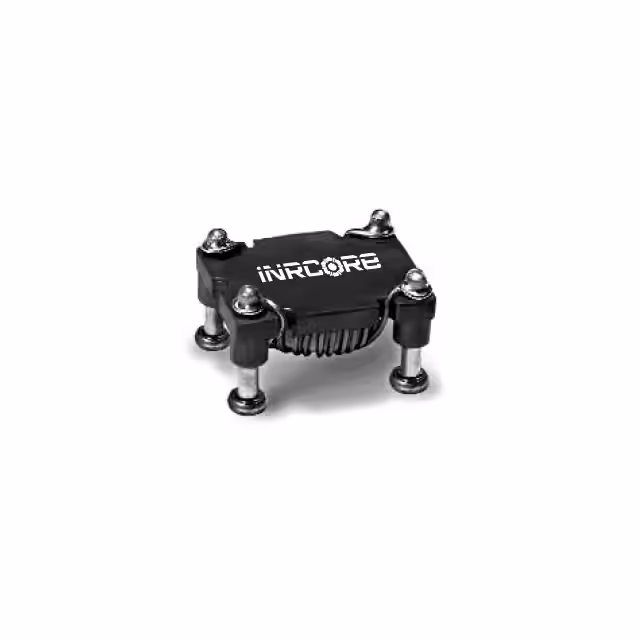

PL8161TFIXED IND 4.2UH 11.4A 5.4MOHM SM iNRCORE, LLC |
1,834 |
|
规格书 |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
PL8113FIXED IND 167UH 940MA 380MOHM SM iNRCORE, LLC |
4,124 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 167 µH | - | 940 mA | - | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
|
PL8113NLFIXED IND 167UH 940MA 380MOHM SM iNRCORE, LLC |
3,749 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 167 µH | - | 940 mA | - | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
|
PL9505NLTFIXED IND 6UH 1.7A 41.9 MOHM SMD iNRCORE, LLC |
3,491 |
|
- |
PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±30% | 1.7 A | 1.7A | Shielded | 41.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL8111FIXED IND 12.3UH 2.8A 43.4 MOHM iNRCORE, LLC |
3,462 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 12.3 µH | - | 2.8 A | - | Unshielded | 43.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
|
PL8111NLFIXED IND 12.3UH 2.8A 43.4 MOHM iNRCORE, LLC |
2,554 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 12.3 µH | - | 2.8 A | - | Unshielded | 43.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
PL8112FIXED IND 35.3UH 1.4A 166MOHM SM iNRCORE, LLC |
4,787 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 35.3 µH | - | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
|
PL8112NLFIXED IND 35.3UH 1.4A 166MOHM SM iNRCORE, LLC |
1,039 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 35.3 µH | - | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
