购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8141NLFIXED IND 25.9UH 5.1A 32MOHM SMD iNRCORE, LLC |
4,414 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 25.9 µH | - | 5.1 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
PL8160FIXED IND 2.8UH 13.9A 3.6MOHM SM iNRCORE, LLC |
2,474 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 2.8 µH | - | 13.9 A | - | Unshielded | 3.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8160NLFIXED IND 2.8UH 13.9A 3.6MOHM SM iNRCORE, LLC |
3,477 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 2.8 µH | - | 13.9 A | - | Unshielded | 3.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|

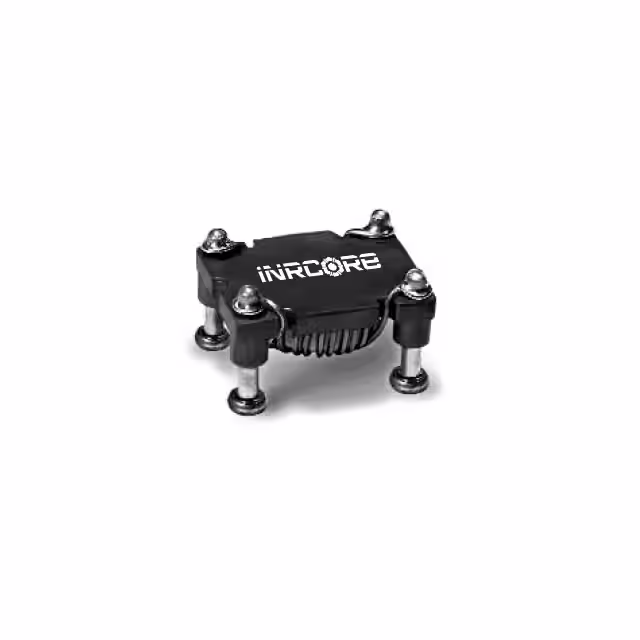

PL8124NLTFIXED IND 292UH 900MA 560MOHM SM iNRCORE, LLC |
1,696 |
|
规格书 |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
PL8124TFIXED IND 292UH 900MA 560MOHM SM iNRCORE, LLC |
4,924 |
|
规格书 |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
PL8140FIXED IND 16UH 7.2A 18.7MOHM SMD iNRCORE, LLC |
1,069 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 16 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8140NLFIXED IND 16UH 7.2A 18.7MOHM SMD iNRCORE, LLC |
4,213 |
|
规格书 |
SLED | Nonstandard | Tube | Active | Toroidal | - | 16 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

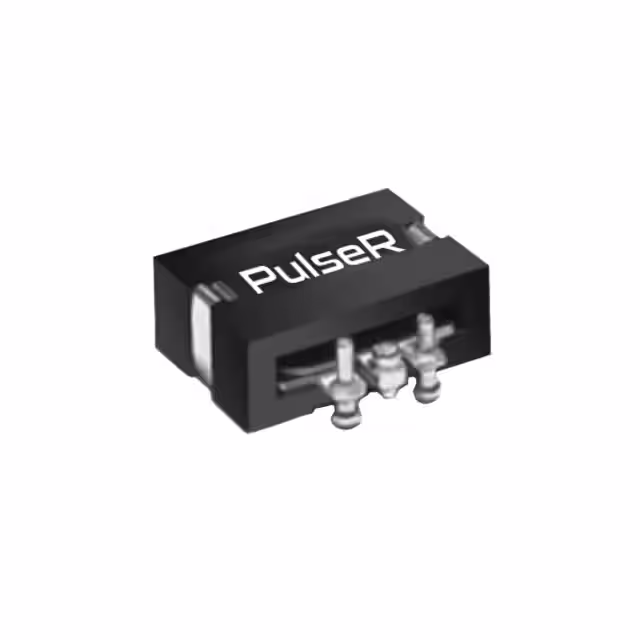

PL10102TFIXED IND 910NH 39A 0.48MOHM SMD iNRCORE, LLC |
1,423 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 910 nH | ±15% | 39 A | 46A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
