购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC03-27NJ-RC27nH +/-5% Ceramic Core Chip Allied Components International |
1,315 |
|
规格书 |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | - | 600mA | Unshielded | 140mOhm Max | 40 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|

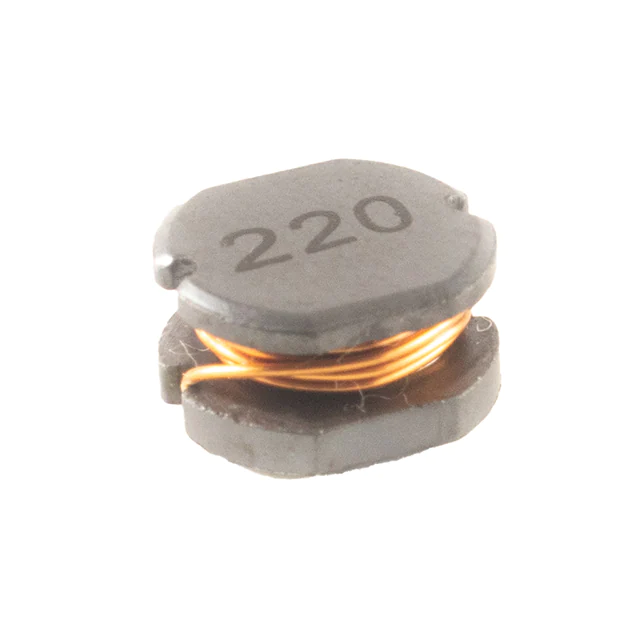

PC1005-391K-RC390uH +/-10% Power Chip Inductor Allied Components International |
2,965 |
|
规格书 |
PC1005 | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±10% | 480 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|

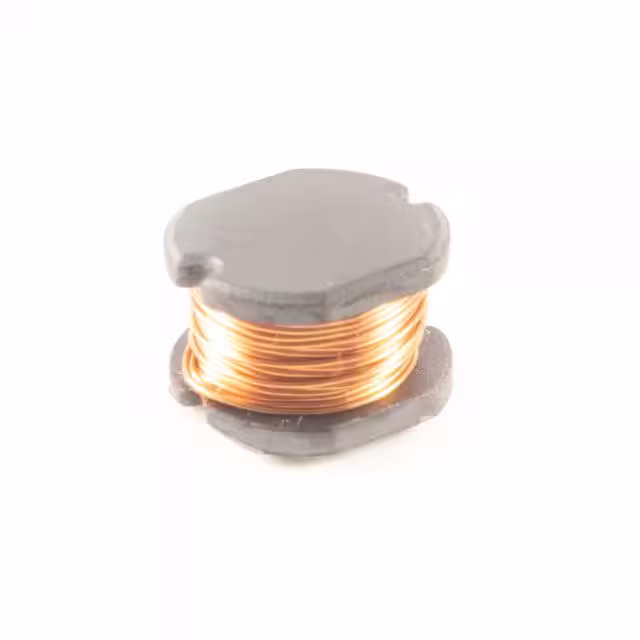

PC1006-531K-RC530uH +/-10% Power Chip Inductor Allied Components International |
1,882 |
|
规格书 |
PC1006 | Nonstandard | Tape & Reel (TR) | Active | - | - | 530 µH | ±10% | - | 620mA | Unshielded | 1.7Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.272" (6.90mm) |
|
|
CC03-390NJ-RC390nH +/-5% Ceramic Core Chip Allied Components International |
3,514 |
|
规格书 |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | - | 100mA | Unshielded | 3.6Ohm Max | 24 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
CC03-3N9S-RC3.9nH +/-0.3nH Ceramic Core Chip Allied Components International |
2,926 |
|
规格书 |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±0.3nH | - | 700mA | Unshielded | 70mOhm Max | 22 @ 250MHz | 6.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|

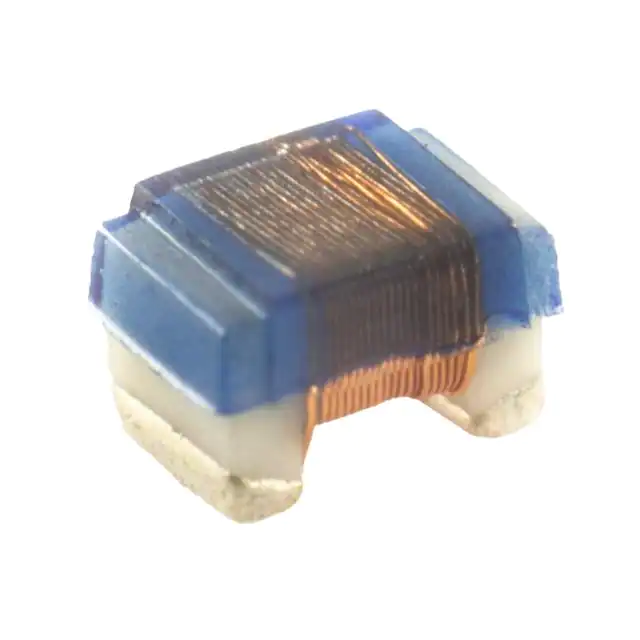

CC05-390NJ-RC390nH +/-5% Ceramic Core Chip Allied Components International |
3,088 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | - | 290mA | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 560MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
CC05-33NJ-RC33nH +/-5% Ceramic Core Chip Allied Components International |
1,660 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | - | 500mA | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
FWPQ2814L-150K15uH +/-10% Flat Wire SMD Power Allied Components International |
2,038 |
|
规格书 |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 15 µH | ±10% | 30 A | 11A | Shielded | 1.62mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-330K33uH +/-10% Flat Wire SMD Power Allied Components International |
4,212 |
|
规格书 |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 33 µH | ±10% | 30 A | 3.3A | Shielded | 1.62mOhm Max | - | 7MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
|
|
FWPQ2814L-6R8K6.8uH +/-10% Flat Wire SMD Power Allied Components International |
1,947 |
|
规格书 |
FWPQ2814L | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 6.8 µH | ±10% | 30 A | 27.8A | Shielded | 1.62mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.571" (14.50mm) |
