场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMS0309ASMOSFET N-CH 30V 21A/49A 8PQFN onsemi |
5,921 | - |
|
规格书 |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 49A (Tc) | 4.5V, 10V | 3.5mOhm @ 21A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
NVMYS025N06CLTWGMOSFET N-CH 60V 8.5A/21A 4LFPAK onsemi |
2,450 | - |
|
规格书 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8.5A (Ta), 21A (Tc) | 4.5V, 10V | 27.5mOhm @ 7.5A, 10V | 2V @ 13µA | 5.8 nC @ 10 V | ±20V | 330 pF @ 25 V | - | 3.8W (Ta), 24W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
NVTFS052P04M8LTAGMOSFET P-CH 40V 4.7A/13.2A 8WDFN onsemi |
1,244 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 4.7A (Ta), 13.2A (Tc) | 4.5V, 10V | 69mOhm @ 5A, 10V | 2.4V @ 95µA | 6.3 nC @ 10 V | ±20V | 424 pF @ 20 V | - | 2.9W (Ta), 23W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
NVTFS5124PLWFTAGMOSFET P-CH 60V 2.4A 8WDFN onsemi |
4,155 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.4A (Ta) | 4.5V, 10V | 260mOhm @ 3A, 10V | 2.5V @ 250µA | 6 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 3W (Ta), 18W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
NTMFS5C456NLT1GMOSFET N-CH 40V 5DFN onsemi |
4,434 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 3.6W (Ta), 55W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTMFS4C05NT1GMOSFET N-CH 30V 11.9A 5DFN onsemi |
8,400 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.9A (Ta) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 14 nC @ 4.5 V | ±20V | 1972 pF @ 15 V | - | 770mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
FDMS0308ASMOSFET N-CH 30V 24A/49A 8PQFN onsemi |
6,754 | - |
|
规格书 |
PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 49A (Tc) | 4.5V, 10V | 2.8mOhm @ 24A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|

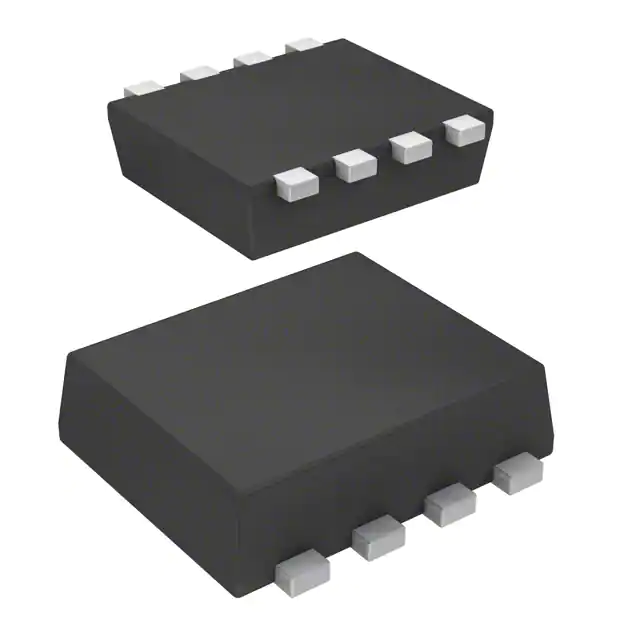

ECH8420-TL-HMOSFET N-CH 20V 14A 8ECH onsemi |
4,470 | - |
|
规格书 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 1.8V, 4.5V | 6.8mOhm @ 7A, 4.5V | - | 29 nC @ 4.5 V | ±12V | 2430 pF @ 10 V | - | 1.6W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
FDME820NZTMOSFET N-CH 20V 9A MICROFET onsemi |
11,297 | - |
|
规格书 |
PowerTrench® | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Ta) | 1.8V, 4.5V | 18mOhm @ 9A, 4.5V | 1V @ 250µA | 8.5 nC @ 4.5 V | ±12V | 865 pF @ 10 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MicroFet 1.6x1.6 Thin |
|
|
NVLJWS011N06CLTAGT6 60V LL 2X2 WDFNW6 onsemi |
2,874 | - |
|
规格书 |
- | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta), 48A (Tc) | 4.5V, 10V | 9mOhm @ 10A, 10V | 2V @ 34µA | 13.6 nC @ 10 V | ±20V | 912 pF @ 25 V | - | 2.9W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 6-WDFNW (2.05x2.05) |
