场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVTFS027N10MCLTAGPTNG 100V LL U8FL onsemi |
1,700 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.4A (Ta), 28A (Tc) | 4.5V, 10V | 26mOhm @ 7A, 10V | 3V @ 38µA | 11.5 nC @ 10 V | ±20V | 800 pF @ 50 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

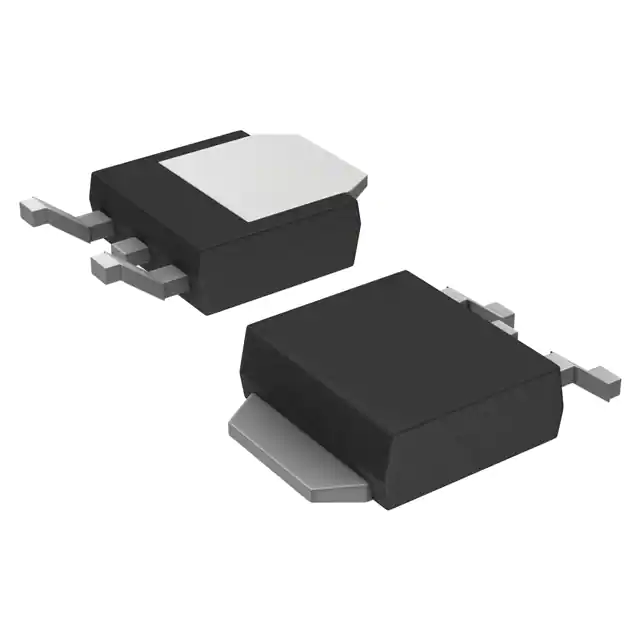

SVD5867NLT4GMOSFET N-CH 60V 22A DPAK-3 onsemi |
4,220 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Tc) | 4.5V, 10V | 39mOhm @ 11A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 675 pF @ 25 V | - | 3.3W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK-3 |
|
NTMFS5C673NT1GMOSFET N-CH 60V 14A/50A 5DFN onsemi |
495 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 50A (Tc) | 10V | 10.7mOhm @ 7A, 10V | 4V @ 35µA | 9.6 nC @ 10 V | ±20V | 680 pF @ 30 V | - | 3.6W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NVTFS6H880NLWFTAGMOSFET N-CH 80V 6.6A/22A 8WDFN onsemi |
1,248 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 6.6A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 5A, 10V | 2V @ 20µA | 9 nC @ 10 V | ±20V | 431 pF @ 40 V | - | 3.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
FDMS7694MOSFET N-CH 30V 13.2A/20A 8PQFN onsemi |
2,927 | - |
|
规格书 |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.2A (Ta), 20A (Tc) | 4.5V, 10V | 9.5mOhm @ 13.2A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1410 pF @ 15 V | - | 2.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
NTMFS4C025NT1GMOSFET N-CH 30V 20A/69A 5DFN onsemi |
1,969 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 69A (Tc) | 4.5V, 10V | 3.41mOhm @ 30A, 10V | 2.1V @ 250µA | 26 nC @ 10 V | ±20V | 1683 pF @ 15 V | - | 2.55W (Ta), 30.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NTTFS5C460NLTAGMOSFET N CH 40V 19A/74A 8WDFN onsemi |
2,859 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | - | - | 19A (Ta), 74A (Tc) | - | 4.8mOhm @ 35A, 10V | 2V @ 40µA | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NTMFS6H852NLT1GMOSFET N-CH 80V 11A/42A 5DFN onsemi |
376 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta), 42A (Tc) | 4.5V, 10V | 13.1mOhm @ 10A, 10V | 2V @ 45µA | 17 nC @ 10 V | ±20V | 906 pF @ 40 V | - | 3.6W (Ta), 54W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NVLJWS022N06CLTAGT6 60V LL 2X2 WDFNW6 onsemi |
3,000 | - |
|
规格书 |
- | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.2A (Ta), 25A (Tc) | 4.5V, 10V | 21mOhm @ 8A, 10V | 2V @ 77µA | 7.6 nC @ 10 V | ±20V | 440 pF @ 25 V | - | 2.4W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 6-WDFNW (2.05x2.05) |
|
|
NVTFS4C25NTAGMOSFET N-CH 30V 10.1A/22.1A 8DFN onsemi |
1,182 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.1A (Ta), 22.1A (Tc) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.2V @ 250µA | 10.3 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 3W (Ta), 14.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
