购物车场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCU15N10-TPMOSFET N-CH |
7,853 |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 100mOhm @ 5A, 10V | 2.9V @ 250µA | 11 nC @ 10 V | ±20V | 612 pF @ 50 V | - | 28W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
MCU02N80-TPMOSFET N-CH |
3,890 |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 2.4A | 10V | 6.3Ohm @ 1.2A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±30V | 550 pF @ 25 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
MCQ4407A-TPMOSFET P-CH |
9,889 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 12A | 4.5V, 10V | 15mOhm @ 10A, 10V | 3V @ 250µA | 24 nC @ 10 V | ±20V | 1750 pF @ 15 V | - | 3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
MCP20N70-BPMOSFET N-CH |
3,775 |
|
规格书 |

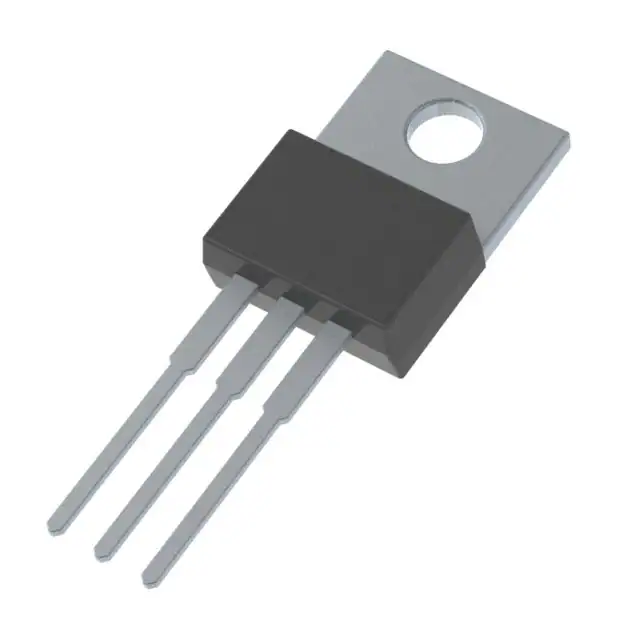

- | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 20A | 10V | 210mOhm @ 10A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±30V | 2328 pF @ 50 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
MCP04N80-BPMOSFET N-CH |
3,209 |
|
规格书 |
- | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A | 10V | 1.2Ohm @ 2A, 10V | 4.5V @ 250µA | 13 nC @ 10 V | ±30V | 598 pF @ 50 V | - | 63W | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
MCU40P04-TPMOSFET P-CH |
2,723 |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A | 10V | 14mOhm @ 12A, 10V | 3V @ 250µA | 72 nC @ 10 V | ±20V | 2960 pF @ 20 V | - | 1.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
LSIC1MO120G0120MOSFET SIC 1200V 18A TO247-4L |
9,987 |
|
规格书 |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 27A (Tc) | 20V | 150mOhm @ 14A, 20V | 4V @ 7mA | 63 nC @ 20 V | +22V, -6V | 1130 pF @ 800 V | - | 156W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|
LSIC1MO120G0080MOSFET SIC 1200V 25A TO247-4L |
7,766 |
|
规格书 |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 39A (Tc) | 20V | 100mOhm @ 20A, 20V | 4V @ 10mA | 92 nC @ 20 V | +22V, -6V | 170 pF @ 800 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|

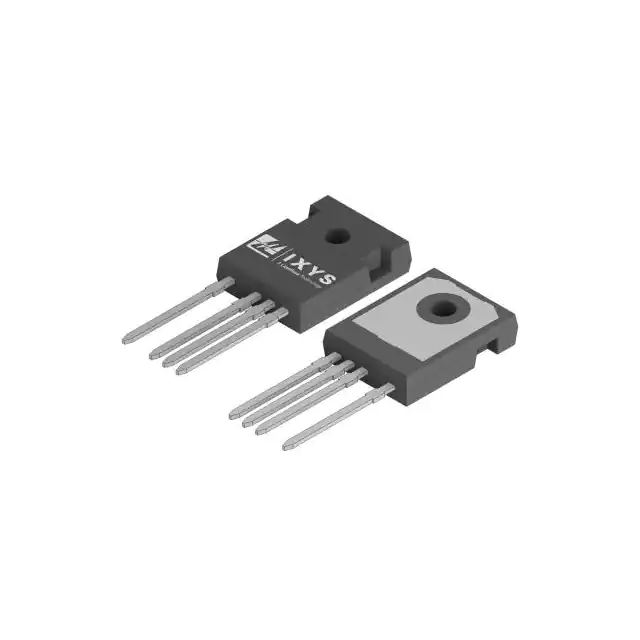

LSIC1MO120G0160MOSFET SIC 1200V 14A TO247-4L |
6,871 |
|
规格书 |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 22A (Tc) | 20V | 200mOhm @ 10A, 20V | 4V @ 5mA | 50 nC @ 20 V | +22V, -6V | 890 pF @ 800 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|
AUXNSF2804STRL7PMOSFET N-CH |
9,055 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TK430A60F,S4X(SMOSFET N-CH |
6,663 |
|
规格书 |

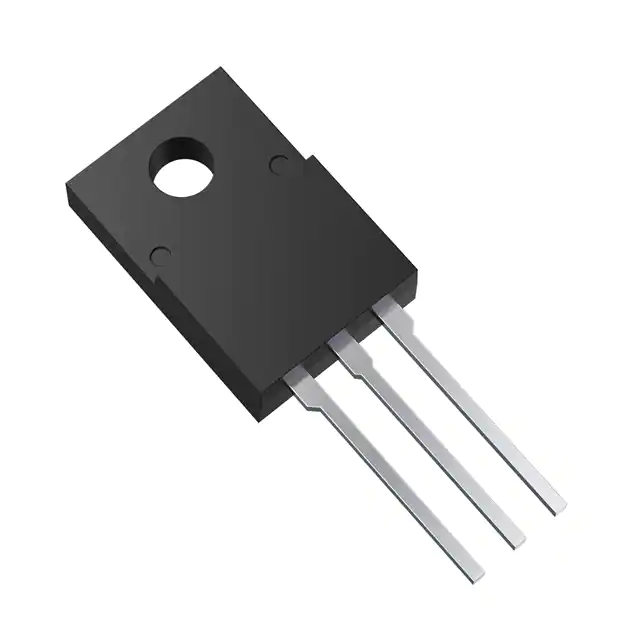

U-MOSIX | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Ta) | 10V | 430mOhm @ 6.5A, 10V | 4V @ 1.75mA | 48 nC @ 10 V | ±30V | 1940 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
TK370A60F,S4X(SMOSFET N-CH |
4,152 |
|
规格书 |
U-MOSIX | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Ta) | 10V | 370mOhm @ 7.5A, 10V | 4V @ 2.04mA | 55 nC @ 10 V | ±30V | 2200 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
FQD9N25TM-SBEK002MOSFET N-CH 250V 7.4A TO252AA |
6,769 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 7.4A (Tc) | 10V | 420mOhm @ 3.7A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 2.5W (Ta), 55W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FDP13AN06A0-SW82126MOSFET N-CH 60V TO220-3 |
3,392 |
|
- |
- | TO-220-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 10.9A (Ta), 62A (Tc) | 6V, 10V | 13.5mOhm @ 62A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 1350 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IGT40R070D1ATMA1GAN HV |
2,653 |
|
规格书 |
CoolGaN™ | 8-PowerSFN | Bulk | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 400 V | 31A (Tc) | - | - | 1.6V @ 2.6mA | - | -10V | 382 pF @ 320 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HSOF-8-3 |
|
|
IGOT60R070D1E8220AUMA1GAN HV |
9,087 |
|
- |
CoolGaN™ | 20-PowerSOIC (0.433", 11.00mm Width) | Bulk | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 31A (Tc) | - | - | 1.6V @ 2.6mA | - | -10V | 380 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-87 |
|
|
IGT60R070D1E8220ATMA1GAN HV |
3,479 |
|
- |
CoolGaN™ | 8-PowerSFN | Bulk | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 31A (Tc) | - | - | 1.6V @ 2.6mA | - | -10V | 380 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HSOF-8-3 |
|
|
IGO60R070D1E8220AUMA1GAN HV |
4,134 |
|
- |
CoolGaN™ | 20-PowerSOIC (0.433", 11.00mm Width) | Bulk | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 31A (Tc) | - | - | 1.6V @ 2.6mA | - | -10V | 380 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-85 |
|
|
PHM2230DLS/1XMOSFET |
8,234 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSMN0R7-25YLD/1XMOSFET |
2,768 |
|
规格书 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
