购物车场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPCC8104,L1Q(CMMOSFET P-CH 30V 20A 8TSON |
5,080 |
|
- |

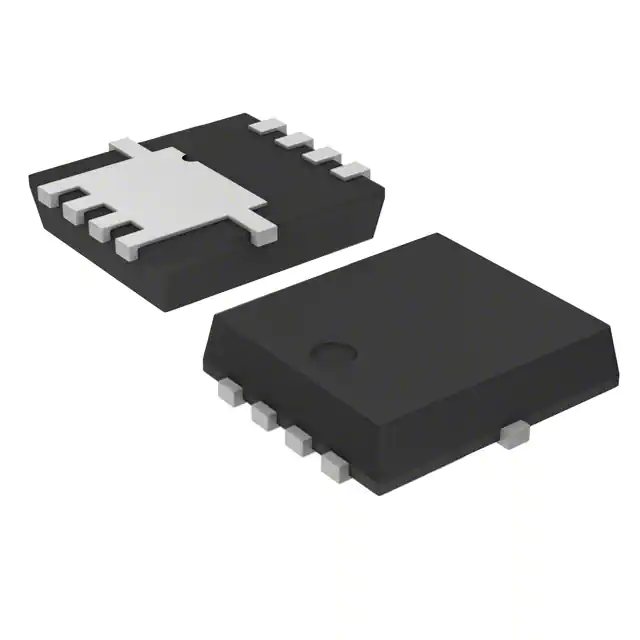

U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 8.8mOhm @ 10A, 10V | 2V @ 500µA | 58 nC @ 10 V | +20V, -25V | 2260 pF @ 10 V | - | 700mW (Ta), 27W (Tc) | 150°C | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
TPCC8105,L1Q(CMMOSFET P-CH 30V 23A 8TSON |
2,514 |
|
- |
U-MOSVI | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Ta) | 4.5V, 10V | 7.8mOhm @ 11.5A, 10V | 2V @ 500µA | 76 nC @ 10 V | +20V, -25V | 3240 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C | - | - | Surface Mount | 8-TSON Advance (3.3x3.3) |
|
|
TPCC8136.LQMOSFET P-CH 20V 9.4A 8TSON |
3,328 |
|
- |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 9.4A (Ta) | 1.8V, 4.5V | 16mOhm @ 9.4A, 4.5V | 1.2V @ 1mA | 36 nC @ 5 V | ±12V | 2350 pF @ 10 V | - | 700mW (Ta), 18W (Tc) | 150°C | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TK40J20D,S1F(OMOSFET N-CH 200V 40A TO3P |
7,100 |
|
- |
π-MOSVIII | TO-3P-3, SC-65-3 | Tray | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 40A (Ta) | 10V | 44mOhm @ 20A, 10V | 3.5V @ 1mA | 100 nC @ 10 V | ±20V | 4300 pF @ 100 V | - | 260W (Tc) | 150°C | - | - | Through Hole | TO-3P(N) |
|
|
TPCC8104,L1QMOSFET P-CH 30V 20A 8TSON |
7,515 |
|
- |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 8.8mOhm @ 10A, 10V | 2V @ 500µA | 58 nC @ 10 V | +20V, -25V | 2260 pF @ 10 V | - | 700mW (Ta), 27W (Tc) | 150°C | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TK12J60W,S1VE(SMOSFET N-CH 600V 11.5A TO3P |
6,276 |
|
- |
- | TO-3P-3, SC-65-3 | Tray | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11.5A (Ta) | 10V | 300mOhm @ 5.8A, 10V | 3.7V @ 600µA | 25 nC @ 10 V | ±30V | 890 pF @ 300 V | - | 110W (Tc) | 150°C | - | - | Through Hole | TO-3P(N) |
|
TPCA8128,L1QMOSFET P-CH 30V 34A 8SOP |
6,835 |
|
- |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 4.8mOhm @ 17A, 10V | 2V @ 500µA | 115 nC @ 10 V | +20V, -25V | 4800 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
STP48N30M8MOSFET N-CH 300V TO220 |
5,350 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STD18N65M2-EPMOSFET N-CH 650V 11A DPAK |
4,242 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 375mOhm @ 5.5A, 10V | 4V @ 250µA | 14.4 nC @ 10 V | ±25V | 700 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
HAF1004-90STR-EMOSFET P-CHANNEL 60V 5A DPAK |
3,162 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDS4141SN00136PMOSFET P-CH 40V 10.8A 8SOIC |
9,085 |
|
- |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10.8A (Ta) | 4.5V, 10V | 13mOhm @ 10.5A, 10V | 3V @ 250µA | 49 nC @ 10 V | ±20V | 2670 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
64-4095PBFMOSFET N-CH SMD D2PAK |
9,941 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AUIRF2804L-313MOSFET N-CH 40V 195A TO262 |
4,448 |
|
- |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 2.3mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-262 |
|
|
AUIRFSL4010-306MOSFET N-CH 100V 180A TO262 |
6,419 |
|
- |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.7mOhm @ 106A, 10V | 4V @ 250µA | 215 nC @ 10 V | ±20V | 9575 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-262 |
|
|
AUIRFSL4010-313MOSFET N-CH 100V 180A TO262 |
8,751 |
|
- |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.7mOhm @ 106A, 10V | 4V @ 250µA | 215 nC @ 10 V | ±20V | 9575 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-262 |
|
|
PCF6294WIC MOSFET N-CH 30V |
6,498 |
|
规格书 |
- | - | Bulk | Obsolete | - | - | - | 13A (Tj) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDC658APGMOSFET P-CH 30V 4A SSOT6 |
4,239 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDS9435ANBAD008MOSFET P-CH 30V 5.3A 8-SOIC |
7,701 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | 5.3A (Tj) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDC637ANNB5E023AMOSFET N-CH 20V 6.2A SSOT-6 |
7,789 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCAC35N10Y-TPMOSFET N-CH 100 35A DFN5060 |
5,841 |
|
规格书 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tj) | - | 17.1mOhm @ 20A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 1223 pF @ 50 V | - | 35W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060 |
