铁氧体磁芯

型号	库存	价格	数量	规格书	系列	包装	产品状态	核心类型	供应商设备封装	材质	直径	电感因子 (Al)	容差	气隙	有效磁导率 (µe)	初始磁导率 (µi)	磁芯因子 (ΣI/A) mm⁻¹	有效长度 (le) mm	有效面积 (Ae) mm²	最小磁芯横截面积 (Amin) mm²	有效磁体积 (Ve) mm³	表面处理	高度	长度	宽度

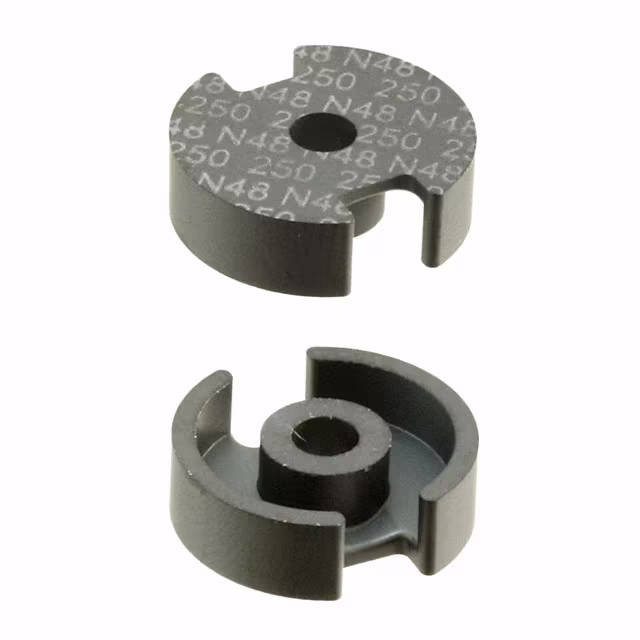

B65541T0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	978	-	立即询价	规格书	P14/8	Box	Active	P (Pot Core)	P 14 x 8	N48	0.563" (14.30mm)	250 nH	±3%	Gapped	159.0	-	0.8	20.0	25.0	20.0	500.0	Uncoated	0.167" (4.25mm)	-	-

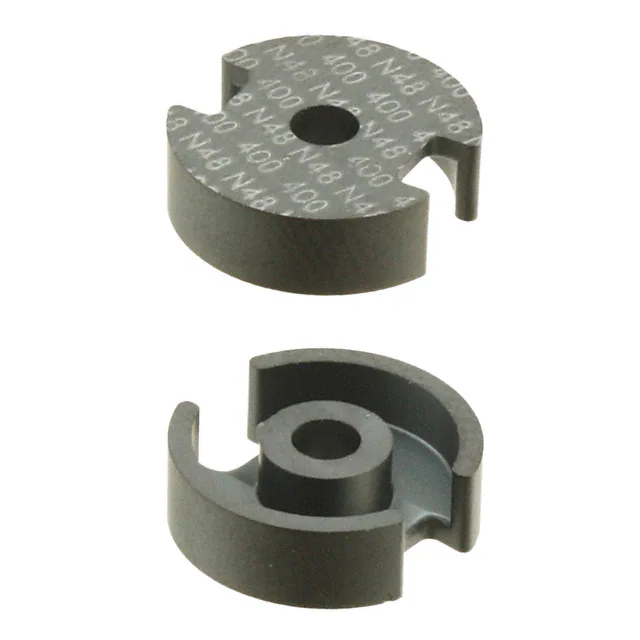

B65541T0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	854	-	立即询价	规格书	P14/8	Box	Active	P (Pot Core)	P 14 x 8	N48	0.563" (14.30mm)	400 nH	±3%	Gapped	255.0	-	0.8	20.0	25.0	20.0	500.0	Uncoated	0.167" (4.25mm)	-	-

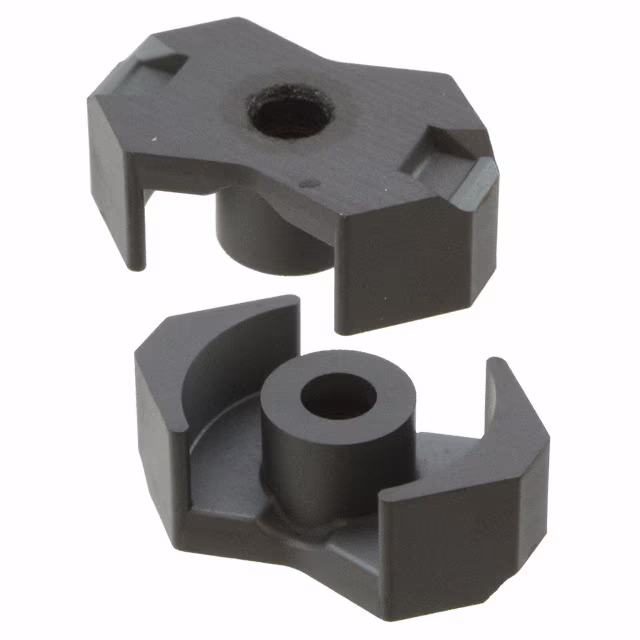

B65807N0160G048 FERRITE CORE RM N48 2PCS EPCOS - TDK Electronics	1,130	-	立即询价	规格书	RM6	Box	Active	RM	RM 6	N48	-	-	-	Gapped	-	-	0.86	26.9	31.3	-	840.0	Uncoated	0.246" (6.25mm)	0.701" (17.90mm)	0.323" (8.20mm)
PQ26/25-3C96 FERRITE CORE PQ 3C96 2PC SET Ferroxcube	524	-	立即询价	规格书	-	Bulk	Active	PQ	PQ 26 x 25	3C96	-	-	±25%	Ungapped	1690.0	-	0.451	54.3	120.0	108.0	6530.0	Uncoated	0.972" (24.70mm)	1.075" (27.30mm)	0.748" (19.00mm)

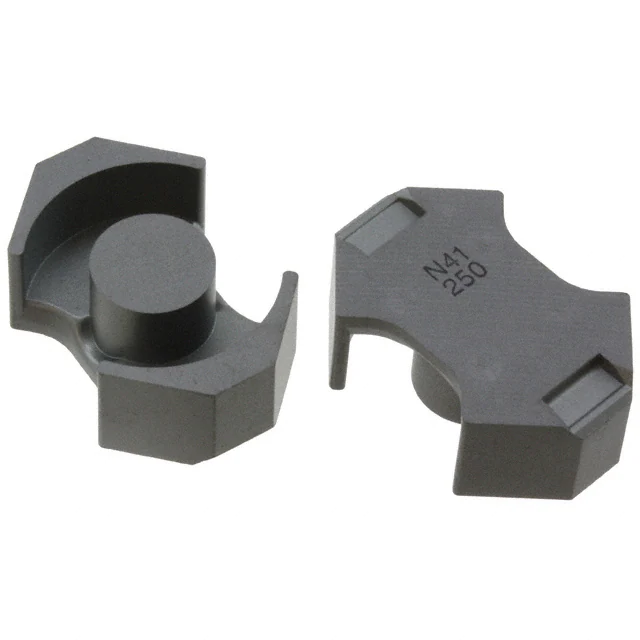

B65811J0250J041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	278	-	立即询价	规格书	RM8	Box	Active	RM	RM 8	N41	-	250 nH	±5%	Gapped	118.0	2800	0.59	38.0	64.0	55.0	2430.0	Uncoated	0.324" (8.25mm)	0.913" (23.20mm)	0.433" (11.00mm)

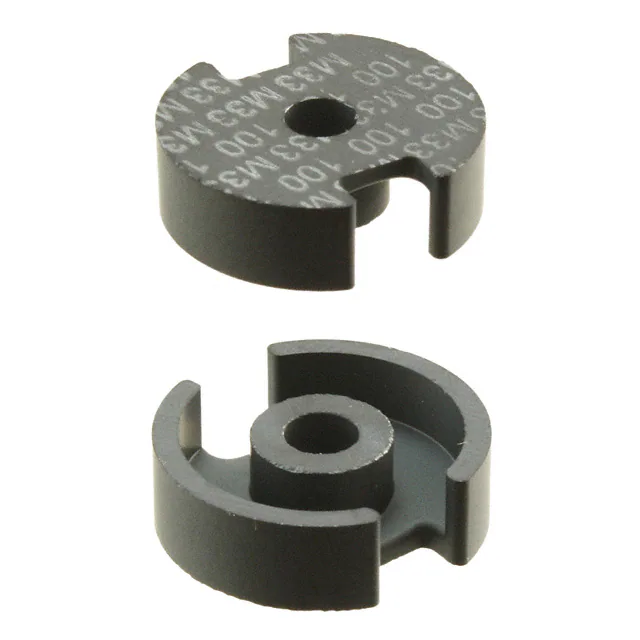

B65541T0100A033 FERRITE CORE P 100NH M33 2PCS EPCOS - TDK Electronics	4,838	-	立即询价	规格书	P14/8	Box	Active	P (Pot Core)	P 14 x 8	M33	0.563" (14.30mm)	100 nH	±3%	Gapped	64.0	750	0.8	20.0	25.0	20.0	500.0	Uncoated	0.167" (4.25mm)	-	-
5961001221 FERRITE CORE TOROID 145NH 61 Fair-Rite Products Corp.	161	-	立即询价	规格书	-	Box	Active	Toroid	-	61	1.187" (30.15mm)	145 nH	±25%	Ungapped	-	125	1.07	73.0	68.0	-	5000.0	Plastic	0.576" (14.64mm)	-	-

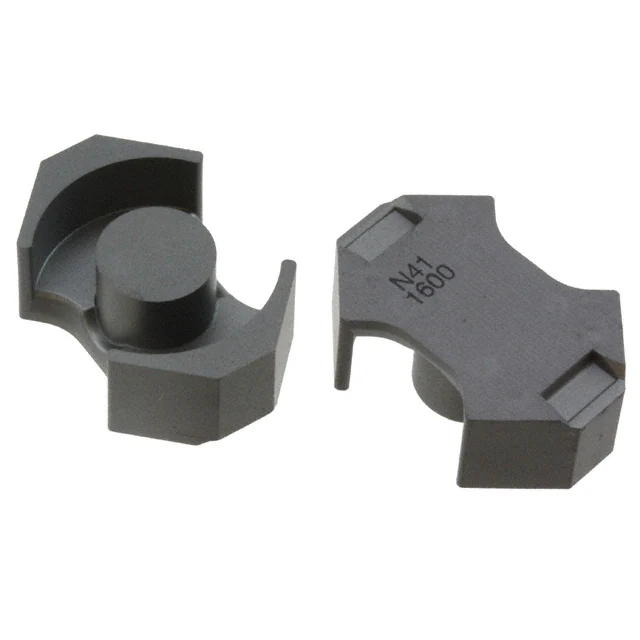

B65811J1600K041 FERRITE CORE RM 1.6UH N41 2PCS EPCOS - TDK Electronics	800	-	立即询价	规格书	RM8	Box	Active	RM	RM 8	N41	-	1.6 µH	±10%	Gapped	756.0	2800	0.59	38.0	64.0	55.0	2430.0	Uncoated	0.324" (8.25mm)	0.913" (23.20mm)	0.433" (11.00mm)
TX20/10/7-4C65 FERRITE CORE TOROID 4C65 Ferroxcube	124	-	立即询价	规格书	-	Bulk	Active	Toroid	TX 20 x 10 x 7	4C65	0.797" (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465.0	Epoxy	0.291" (7.40mm)	-	-
ER41/7.6/32-3C92 FERRITE CORE ER 3C92 Ferroxcube	263	-	立即询价	规格书	-	Bulk	Active	ER	ER 41 x 7.6 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.300" (7.60mm)	1.600" (40.64mm)	1.260" (32.00mm)

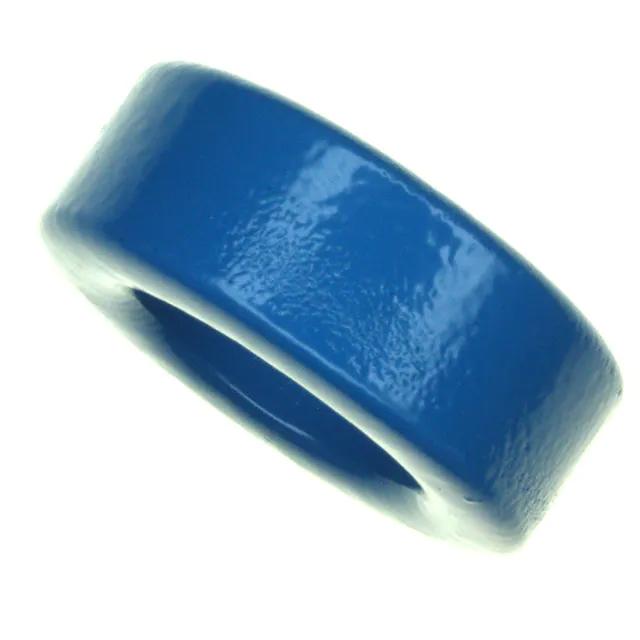

B64290L0048X830 FERRITE CORE TOROID 5.46UH N30 EPCOS - TDK Electronics	1,138	-	立即询价	规格书	TX34/20.5/12.5	Tray	Active	Toroid	-	N30	1.397" (35.50mm)	5.46 µH	±25%	Ungapped	-	4300	0.99	82.06	82.6	-	6778.0	Epoxy	0.535" (13.60mm)	-	-

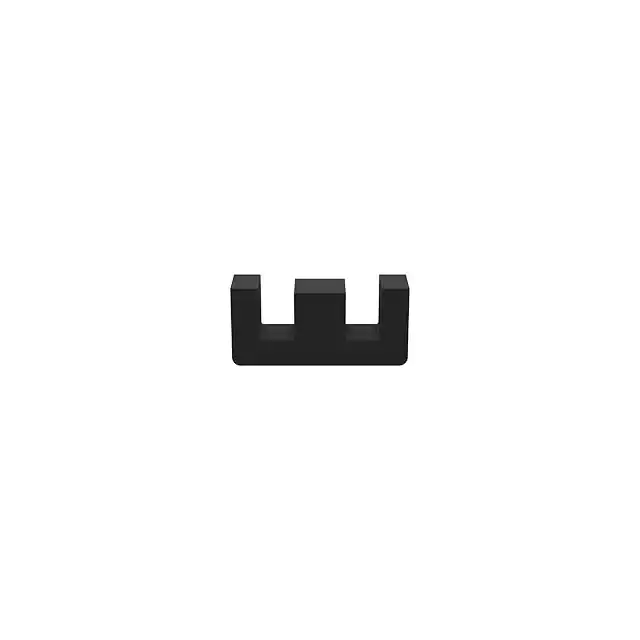

B66329G1500X187 FERRITE CORE E N87 EPCOS - TDK Electronics	249	-	立即询价	规格书	E42/21/20	Box	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97.0	234.0	229.0	22700.0	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.787" (20.00mm)

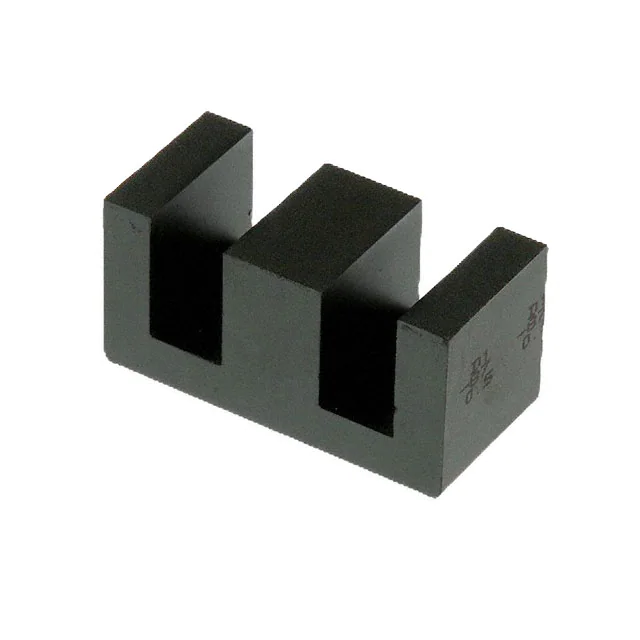

B66329G0500X187 FERRITE CORE E N87 EPCOS - TDK Electronics	566	-	立即询价	规格书	E42/21/20	Box	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97.0	234.0	229.0	22700.0	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.787" (20.00mm)
B64290L0616X087 FERRITE CORE TOROID 4.68UH N87 EPCOS - TDK Electronics	291	-	立即询价	规格书	TX25.3/14.8/20	Box	Active	Toroid	-	N87	1.047" (26.60mm)	4.68 µH	±25%	Ungapped	-	2200	0.59	60.07	102.5	-	6157.0	Epoxy	0.839" (21.30mm)	-	-

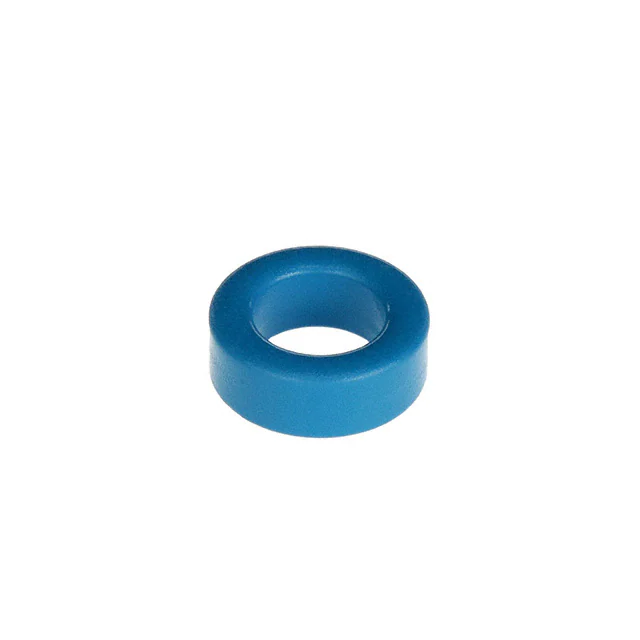

B64290L0048X087 FERRITE CORE TOROID 2.79UH N87 EPCOS - TDK Electronics	1,175	-	立即询价	规格书	TX34/20.5/12.5	Box	Active	Toroid	-	N87	1.397" (35.50mm)	2.79 µH	±25%	Ungapped	-	2200	0.99	82.06	82.6	-	6778.0	Epoxy	0.535" (13.60mm)	-	-

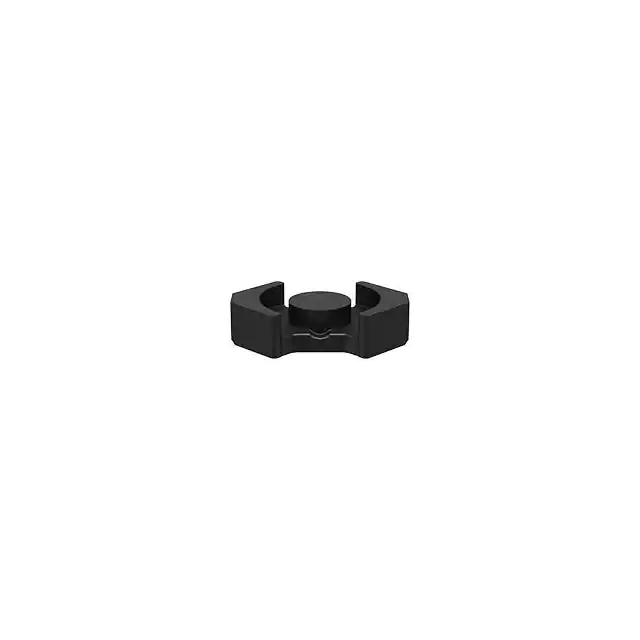

B65811P0000R087 FERRITE CORE RM 4.1UH N87 2PCS EPCOS - TDK Electronics	398	-	立即询价	规格书	RM8/LP	Tray	Active	RM	RM 8 LP	N87	-	4.1 µH	-20%, +30%	Ungapped	1440.0	2200	0.44	28.7	64.9	55.4	1860.0	Uncoated	0.228" (5.80mm)	0.913" (23.20mm)	0.433" (11.00mm)
E55/28/21-3C92 FERRITE CORE E 3C92 Ferroxcube	184	-	立即询价	规格书	-	Bulk	Active	E	E 55 x 28 x 21	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083" (27.50mm)	2.213" (56.20mm)	0.827" (21.00mm)
0077076A7 FERRITE CORE TOROID 56NH KOOL MU Magnetics, a division of Spang & Co.	2,098	-	立即询价	规格书	-	Bulk	Active	Toroid	-	Kool Mu	1.445" (36.70mm)	56 nH	±8%	Ungapped	-	60	-	89.8	67.8	-	6090.0	Coated	0.447" (11.35mm)	-	-

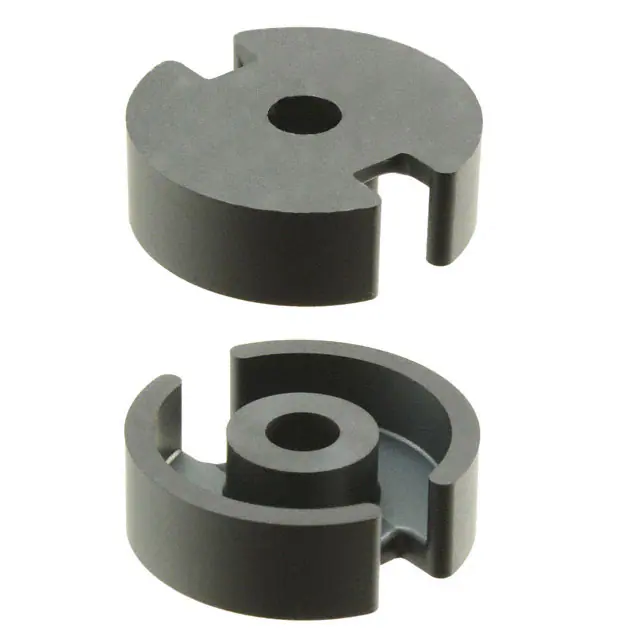

B65661W0000R030 FERRITE CORE P 8.3UH N30 2PCS EPCOS - TDK Electronics	608	-	立即询价	规格书	P22/13	Box	Active	P (Pot Core)	P 22 x 13	N30	0.866" (22.00mm)	8.3 µH	-20%, +30%	Ungapped	3020.0	4300	0.46	33.2	72.6	58.1	2410.0	Uncoated	0.268" (6.80mm)	-	-

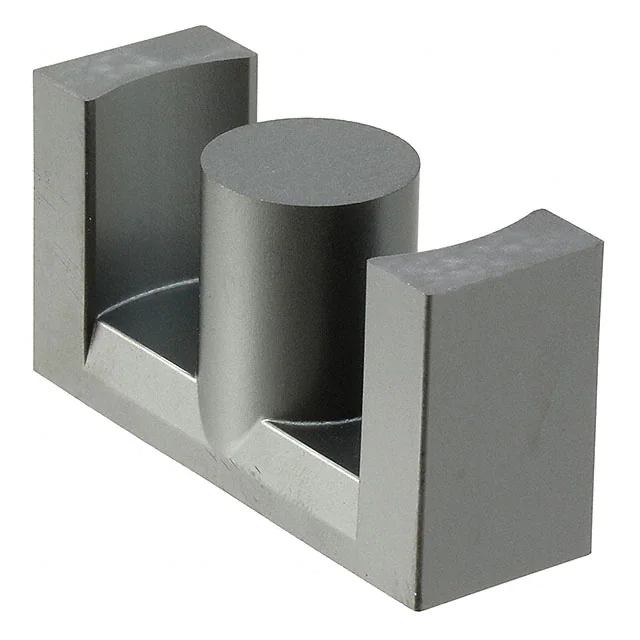

B66365G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	445	-	立即询价	规格书	ETD44/22/15	Box	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886" (22.50mm)	1.724" (43.80mm)	0.598" (15.20mm)

共 10616 记录«上一页 1... 21 22 23 242526 27 28...531 下一页»
