铁氧体磁芯

型号	库存	价格	数量	规格书	系列	包装	产品状态	核心类型	供应商设备封装	材质	直径	电感因子 (Al)	容差	气隙	有效磁导率 (µe)	初始磁导率 (µi)	磁芯因子 (ΣI/A) mm⁻¹	有效长度 (le) mm	有效面积 (Ae) mm²	最小磁芯横截面积 (Amin) mm²	有效磁体积 (Ve) mm³	表面处理	高度	长度	宽度
E32/6/20/R-3C95 FERRITE CORE E 3C95 Ferroxcube	136	-	立即询价	规格书	-	Bulk	Active	E	E 32 x 6 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250" (6.35mm)	1.250" (31.75mm)	0.800" (20.32mm)

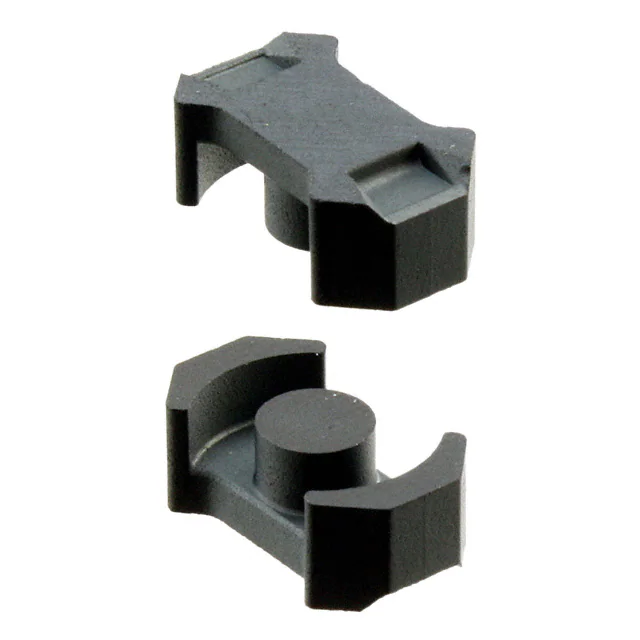

B65803P0000R049 FERRITE CORE RM 950NH N49 2PCS EPCOS - TDK Electronics	845	-	立即询价	规格书	RM4/LP	Box	Active	RM	RM 4 LP	N49	-	950 nH	-20%, +30%	Ungapped	900.0	1500	1.2	17.3	14.5	11.3	251.0	Uncoated	0.154" (3.90mm)	0.433" (11.00mm)	0.181" (4.60mm)

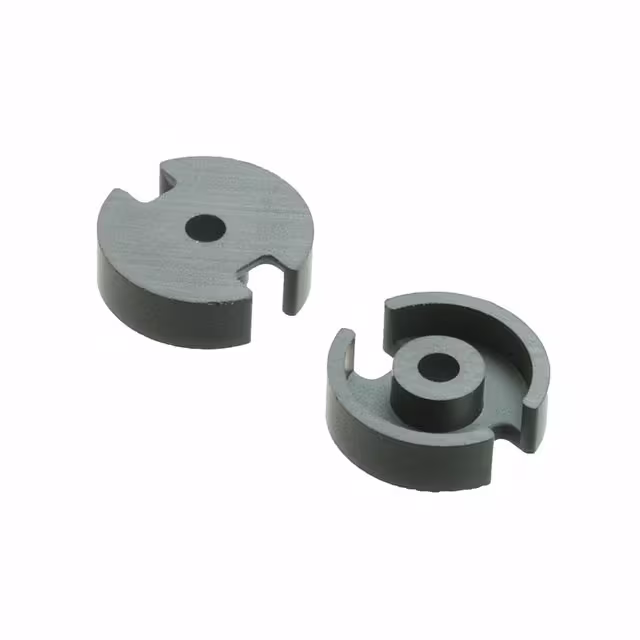

B65531D0000R033 FERRITE CORE P 780NH M33 2PCS EPCOS - TDK Electronics	3,005	-	立即询价	规格书	P11/7	Tray	Active	P (Pot Core)	P 11 x 7	M33	0.445" (11.30mm)	780 nH	-20%, +30%	Ungapped	620.0	750	1.0	15.9	15.9	-	253.0	Uncoated	0.130" (3.30mm)	-	-
B65805J0000R087 FERRITE CORE RM 2UH N87 2PCS EPCOS - TDK Electronics	1,626	-	立即询价	规格书	RM5	Box	Active	RM	RM 5	N87	-	2 µH	-20%, +30%	Ungapped	1480.0	2200	0.93	22.1	23.8	18.0	526.0	Uncoated	0.207" (5.25mm)	0.575" (14.60mm)	0.268" (6.80mm)

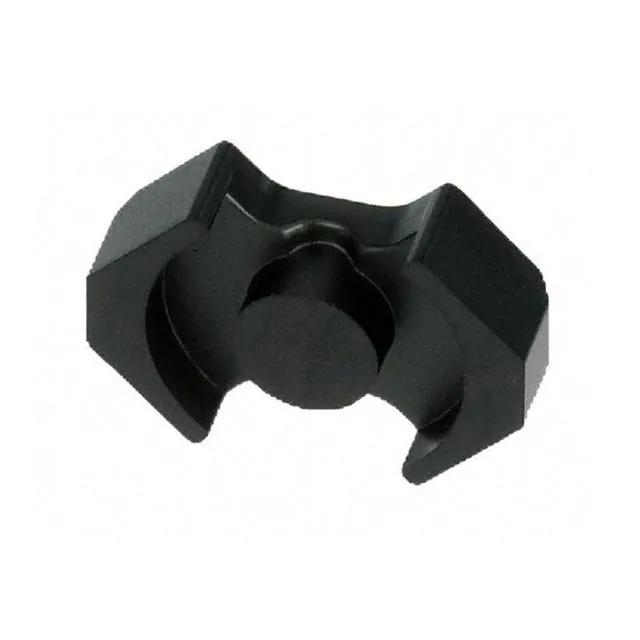

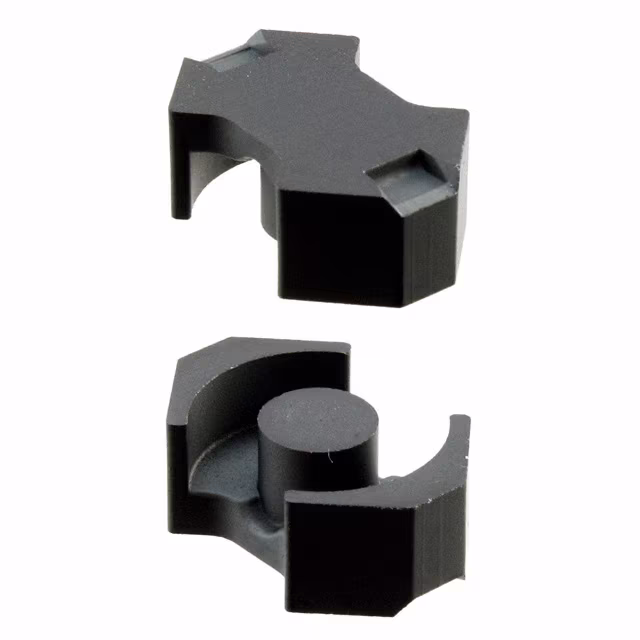

B65805P0000R087 FERRITE CORE N87 2PCS EPCOS - TDK Electronics	1,363	-	立即询价	规格书	RM5/LP	Box	Active	-	-	N87	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B64290L0651X087 FERRITE CORE TOROID 2.63UH N87 EPCOS - TDK Electronics	459	-	立即询价	规格书	TX22/14/13	Box	Active	Toroid	-	N87	0.917" (23.30mm)	2.63 µH	±25%	Ungapped	-	2200	1.05	54.15	51.15	-	2789.0	Epoxy	0.543" (13.80mm)	-	-
B65803P0000R087 FERRITE CORE RM 1.3UH N87 2PCS EPCOS - TDK Electronics	1,104	-	立即询价	规格书	RM4/LP	Box	Active	RM	RM 4 LP	N87	-	1.3 µH	-20%, +30%	Ungapped	1230.0	2200	1.2	17.3	14.5	11.3	251.0	Uncoated	0.154" (3.90mm)	0.433" (11.00mm)	0.181" (4.60mm)

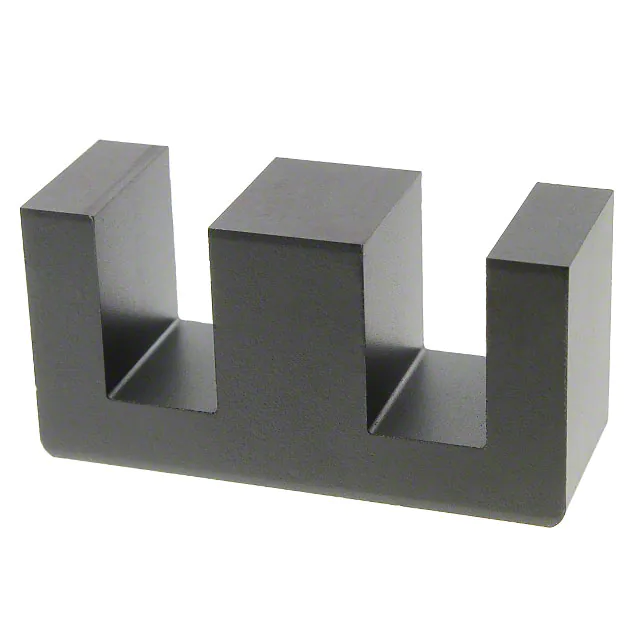

B66325G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,499	-	立即询价	规格书	E42/21/15	Box	Active	E	E 42 x 21 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835" (21.20mm)	1.654" (42.00mm)	0.598" (15.20mm)

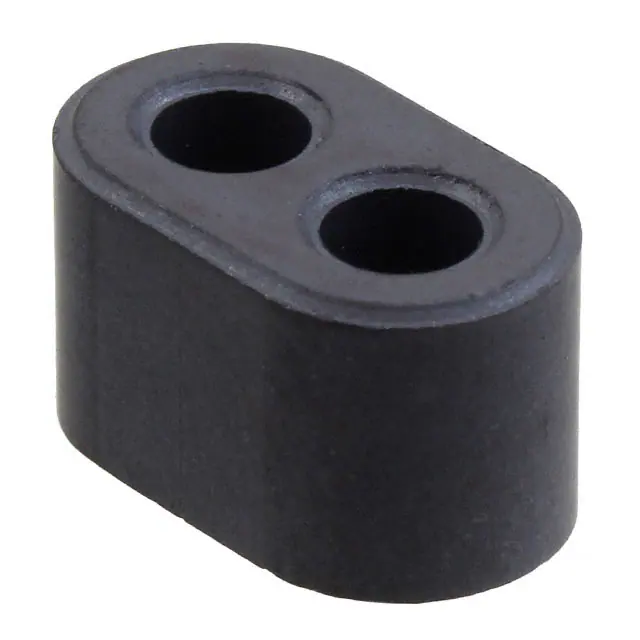

B62152A0004X001 FERRITE CORE 2 HOLE 190NH K1 EPCOS - TDK Electronics	1,634	-	立即询价	规格书	MHB2-14.5/8.5/8.3	Bulk	Active	Multi-Hole (2)	-	K1	-	190 nH	±30%	Ungapped	-	80	0.54	15.3	28.4	-	435.0	Uncoated	0.327" (8.30mm)	0.571" (14.50mm)	0.335" (8.50mm)
ER23/3.6/13-3C92-S FERRITE CORE ER 3C92 2PC SET Ferroxcube	3,687	-	立即询价	规格书	-	Bulk	Active	ER	ER 23 x 3.6 x 13	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.142" (3.60mm)	0.913" (23.20mm)	0.492" (12.50mm)

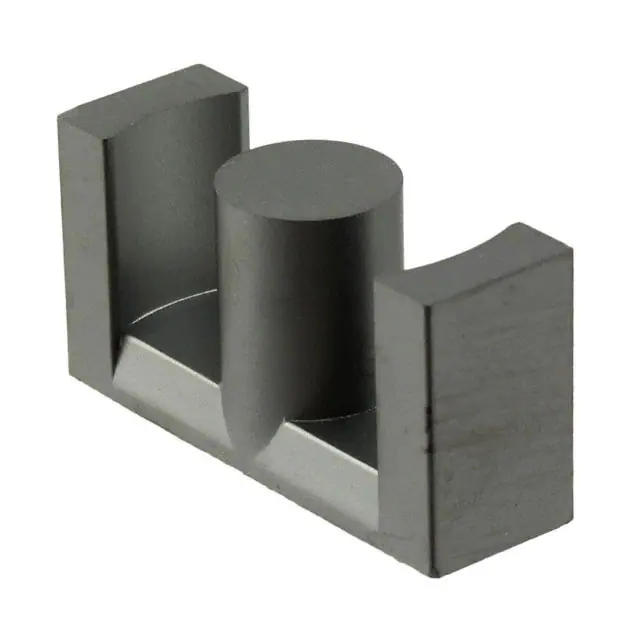

B66363G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	654	-	立即询价	规格书	ETD39/20/13	Box	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787" (20.00mm)	1.531" (38.90mm)	0.504" (12.80mm)
B66363G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	401	-	立即询价	规格书	ETD39/20/13	Box	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787" (20.00mm)	1.531" (38.90mm)	0.504" (12.80mm)
E32/6/20/R-3F36 FERRITE CORE E 3F36 Ferroxcube	598	-	立即询价	规格书	-	Bulk	Active	E	E 32 x 6 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250" (6.35mm)	1.250" (31.75mm)	0.800" (20.32mm)
RM8/I-3C95 FERRITE CORE RM 3C95 2PC SET Ferroxcube	434	-	立即询价	规格书	-	Bulk	Active	RM	RM 8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646" (16.40mm)	0.913" (23.20mm)	0.433" (11.00mm)
B65805J0250A087 FERRITE CORE RM EPCOS - TDK Electronics	966	-	立即询价	规格书	RM5	Bulk	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-	-	-
C058380A2 FERRITE CORE TOROID 89NH HIGH FL Magnetics, a division of Spang & Co.	1,352	-	立即询价	规格书	-	Bulk	Active	Toroid	-	High Flux	0.710" (18.03mm)	89 nH	±8%	Ungapped	-	125	-	41.4	23.2	-	960.0	Coated	0.280" (7.11mm)	-	-

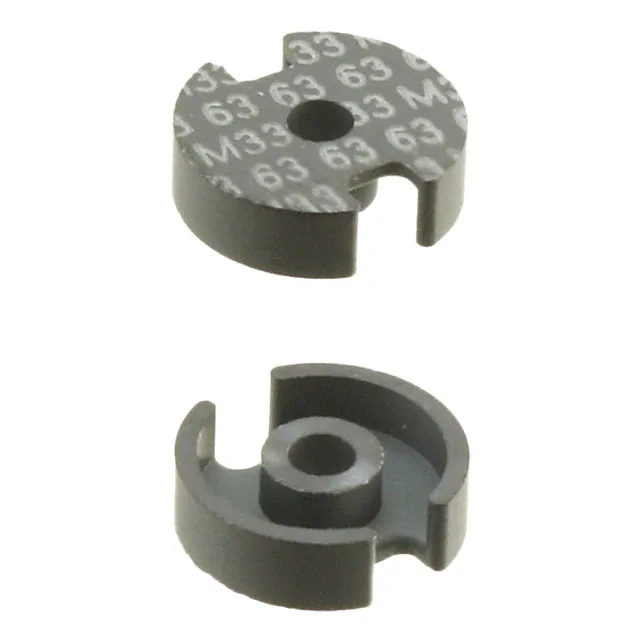

B65517D0063A033 FERRITE CORE P 63NH M33 2PCS EPCOS - TDK Electronics	2,698	-	立即询价	规格书	P9/5	Box	Active	P (Pot Core)	P 9 x 5	M33	0.366" (9.30mm)	63 nH	±3%	Gapped	63.0	750	1.25	12.5	10.0	-	125.0	Uncoated	0.106" (2.70mm)	-	-

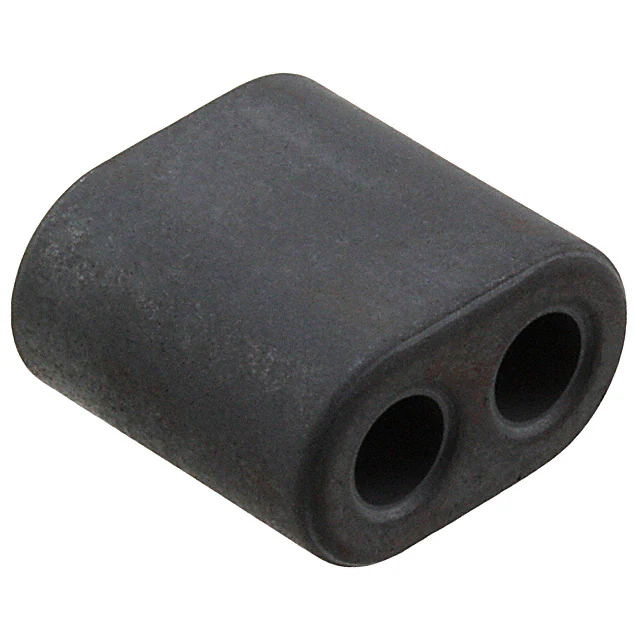

B62152A0001X001 FERRITE CORE 2 HOLE 330NH K1 EPCOS - TDK Electronics	2,522	-	立即询价	规格书	MHB2-14.5/8.5/14.5	Bulk	Active	Multi-Hole (2)	-	K1	-	330 nH	±30%	Ungapped	-	80	0.31	15.3	49.7	-	760.0	Uncoated	0.571" (14.50mm)	0.571" (14.50mm)	0.335" (8.50mm)
B65805J0000Y038 FERRITE CORE RM 6.7UH T38 2PCS EPCOS - TDK Electronics	1,630	-	立即询价	规格书	RM5	Box	Active	RM	RM 5	T38	-	6.7 µH	-30%, +40%	Ungapped	4950.0	10000	0.93	22.1	23.8	18.0	526.0	Uncoated	0.207" (5.25mm)	0.575" (14.60mm)	0.268" (6.80mm)
B65511A0000Y030 FERRITE CORE P 2UH N30 2PCS EPCOS - TDK Electronics	2,896	-	立即询价	规格书	P7/4	Box	Active	P (Pot Core)	P 7 x 4	N30	0.289" (7.35mm)	2 µH	-30%, +40%	Ungapped	2270.0	4300	1.43	10.0	7.0	-	70.0	Uncoated	0.083" (2.10mm)	-	-

共 10616 记录«上一页 1... 18 19 20 212223 24 25...531 下一页»
