购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

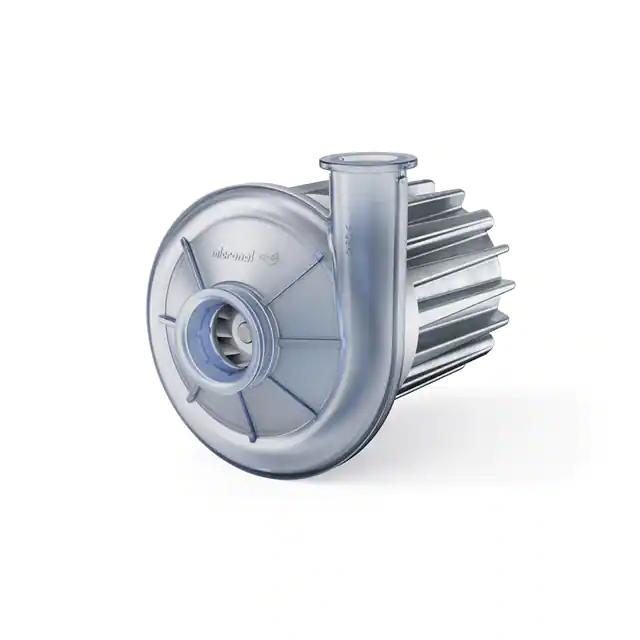

U85HL-024KH-4FAN BLOWER 79.1X102MM 24VDC RECT |
3,919 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 79.1mm L x 76.8mm H | 102.00mm | 31.1 CFM (0.871m³/min) | 51.789 in H2O (12900.0 Pa) | - | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP), NTC Thermistor | 56.0dB(A) | 190 W | 37200 RPM | 6 Position Rectangular Connector | IP40 | 32 ~ 113°F (0 ~ 45°C) | CE | - |
|

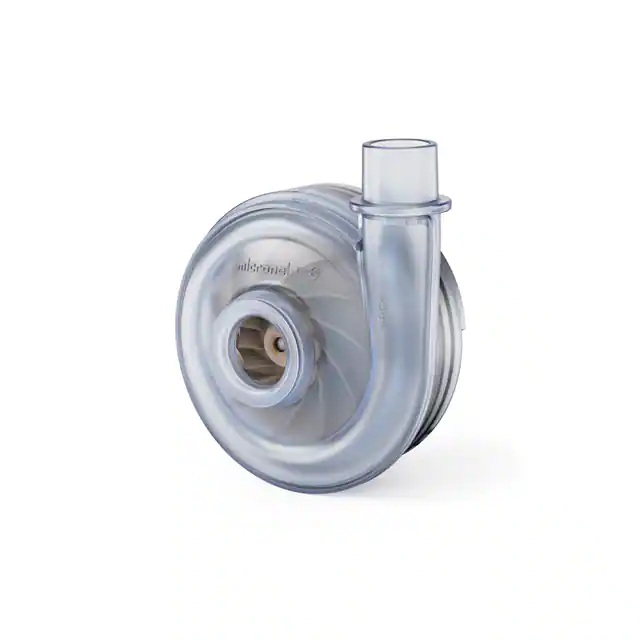

U65ML-024KS-5FAN BLOWER 73.7X44.6MM 24VDC |
1,754 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 73.7mm L x 66.4mm H | 44.60mm | 8.8 CFM (0.246m³/min) | 12.445 in H2O (3100.0 Pa) | - | Blower | Motor Winding | 47.0dB(A) | 20 W | 31000 RPM | 3 Position Rectangular Connector | IP10 | -4 ~ 122°F (-20 ~ 50°C) | CE | - |
|
R1238Y24BPLB2-7FAN AXIAL 120X38MM 24VDC WIRE |
4,013 |
|
规格书 |
R | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 167.7 CFM (4.70m³/min) | 0.706 in H2O (175.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 14.73 W | 4200 RPM | 2 Wire Leads | - | - | CE, cURus | - |
|

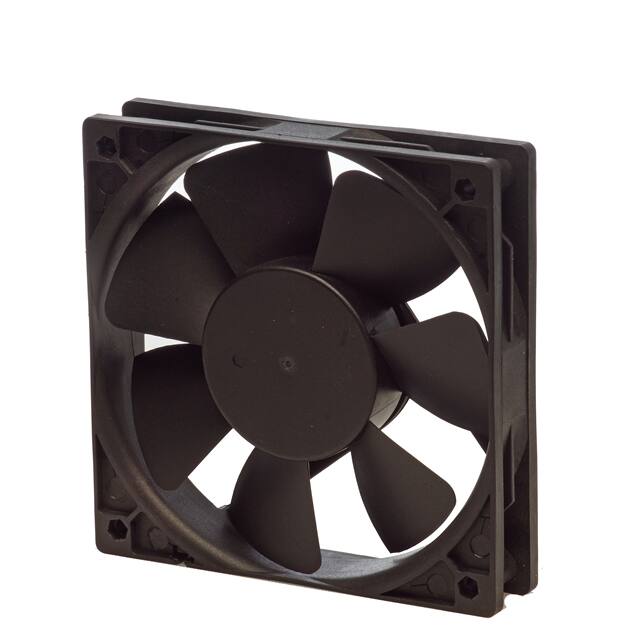

R1225Y12BPLB2-7FAN AXIAL 120X25MM 12VDC WIRE |
1,806 |
|
规格书 |
R | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 129.4 CFM (3.62m³/min) | 0.534 in H2O (133.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 8.64 W | 4200 RPM | 2 Wire Leads | - | - | CE, cURus | - |
|

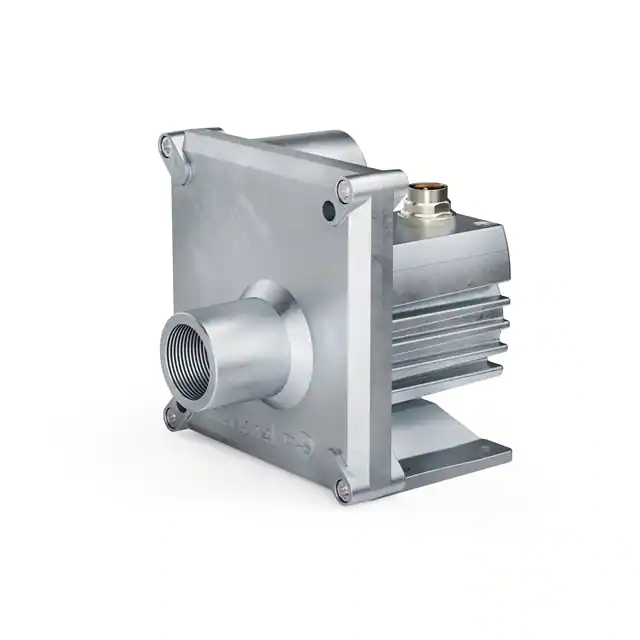

U100UL-024KA-4FAN BLOWER 107X117MM 24VDC 6 POS |
3,992 |
|
规格书 |
- | Box | Active | 24VDC | Rectangular - 107mm L x 106mm H | 117.00mm | 30.5 CFM (0.854m³/min) | 45.767 in H2O (11400.0 Pa) | - | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP) | 55.0dB(A) | 161 W | 43000 RPM | 6 Position Circular Connector | IP67 - Dust Tight, Waterproof | -4 ~ 113°F (-20 ~ 45°C) | CE, cURus | - |
|

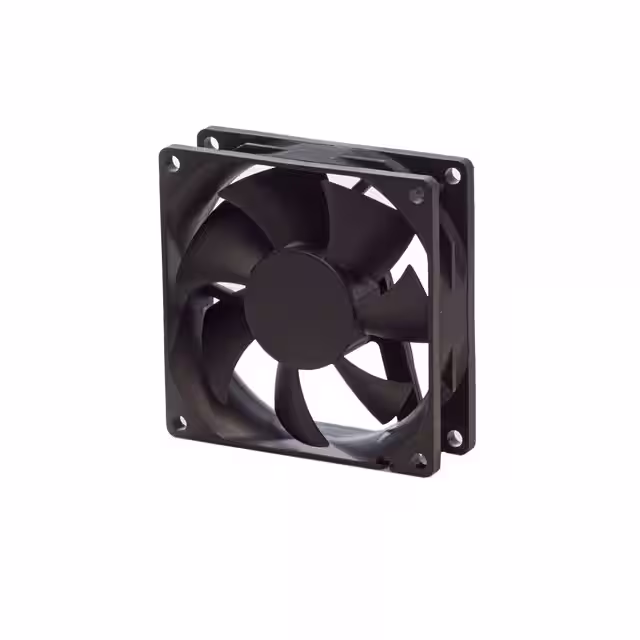

C8025H24BPLB2-7FAN AXIAL 80X25MM 24VDC WIRE |
1,539 |
|
规格书 |
C | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.1dB(A) | 1.6 W | 3000 RPM | 2 Wire Leads | - | - | CE, cURus | - |
|
U85MX-024KX-4FAN BLOWER 79.1X77MM 21VDC RECT |
2,723 |
|
规格书 |
- | Bulk | Active | 21VDC | Rectangular/Rounded - 79.1mm L x 76.8mm H | 77.00mm | 30.4 CFM (0.851m³/min) | 49.38 in H2O (12300.0 Pa) | - | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP), NTC Thermistor | 77.0dB(A) | 183 W | 39000 RPM | 6 Position Rectangular Connector | IP40 | -4 ~ 113°F (-20 ~ 45°C) | CE | - |
|
09225VA-12N-AT-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,997 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB | 4.8 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-12L-AA-00FAN AXL 172.7X25.4MM 12VDC TERM |
2,818 |
|
规格书 |
15025PA | Bulk | Active | 12VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12L-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
1,098 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 61.1 CFM (1.71m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 38.5dB | 2.88 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07525GA-12N-AA-00FAN BLOWER 75.7X25MM 12VDC WIRE |
4,035 |
|
规格书 |
07525GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Auto Restart | 43.0dB | 3 W | 3600 RPM | 2 Wire Leads | - | - | - | - |
|
|
09225VA-12K-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,884 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.5dB | 2.16 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24M-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,313 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24M-EL-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,914 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-12N-AT-00FAN AXL 172.7X25.4MM 12VDC TERM |
2,631 |
|
规格书 |
15025PA | Bulk | Active | 12VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | - | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12M-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,416 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 3.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12N-ET-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,186 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB | 4.8 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24P-ET-D0FAN AXIAL 92X25MM 24VDC WIRE |
1,681 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB | 6.72 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-24Q-EL-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,848 |
|
规格书 |
09225VA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 51.0dB | 9.12 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12M-AT-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,196 |
|
规格书 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB | 3.6 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
