购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P4405H9426DC BLOWER SAN ACE MC |
3,009 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P5412H2026DC BLOWER SAN ACE MC |
3,492 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P5412H2D016DC BLOWER SAN ACE MC |
3,432 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P5412H8016DC BLOWER SAN ACE MC |
1,684 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P4412H8D016DC BLOWER SAN ACE MC |
1,127 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
THD1248BE-00FAN AXIAL 120MM 48V |
3,583 |
|
- |
THD | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
THB1248BFAN AXIAL 120X25.4MM 48VDC WIRE |
1,534 |
|
- |
THB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 186.6 CFM (5.22m³/min) | 0.962 in H2O (239.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
TCA1748ATAGPFAN IMP MTRZD 176.5X69MM 48VDC |
3,920 |
|
- |
TCA | Bulk | Obsolete | 48VDC | Round - 176.5mm Dia | 69.00mm | 382.0 CFM (10.70m³/min) | 2.114 in H2O (526.6 Pa) | Ball | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.8dB(A) | 57.6 W | 4000 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | - |
|
|
EFB1548VHGD8NFAN AXIAL 172X150MM 48V |
1,999 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FFC0948BFAN AXIAL 92MM 48V |
1,235 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3312NU-2013312NU-201 |
3,179 |
|
- |
3300NU | Bulk | Active | 12VDC | - | - | - | - | Ball | Tubeaxial | - | - | - | 2950 RPM | 2 Wire Leads | - | - | - | - |
|
|
W1G300-EC24-03W1G300-EC24-03 |
3,190 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4414FL-5524414FL-552 |
1,415 |
|
- |
* | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 1.2 W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | - |
|

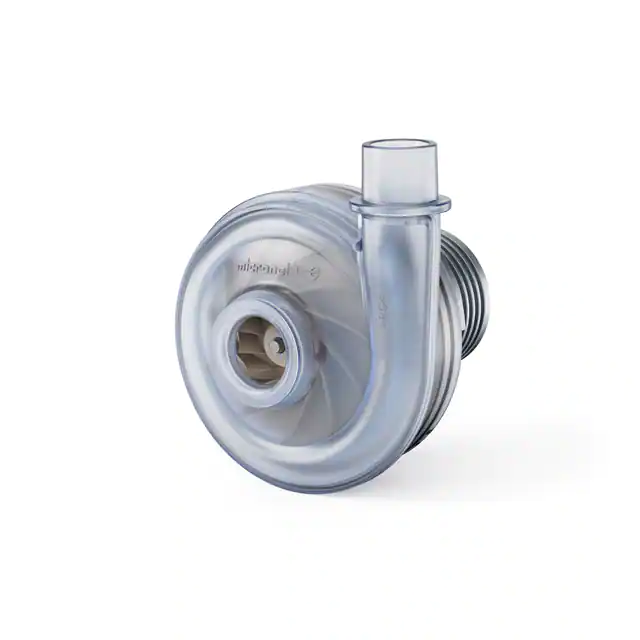

U65HN-024KS-6FAN BLOWER 73.8X66MM 24VDC |
4,506 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 73.8mm L x 66.3mm H | 66.00mm | 15.4 CFM (0.431m³/min) | 38.139 in H2O (9500.0 Pa) | - | Blower | Hall Sensor, Motor Winding, NTC Thermistor | 47.0dB(A) | 90 W | 60000 RPM | 10 Position Rectangular Connector | IP10 | -4 ~ 122°F (-20 ~ 50°C) | CE | - |
|

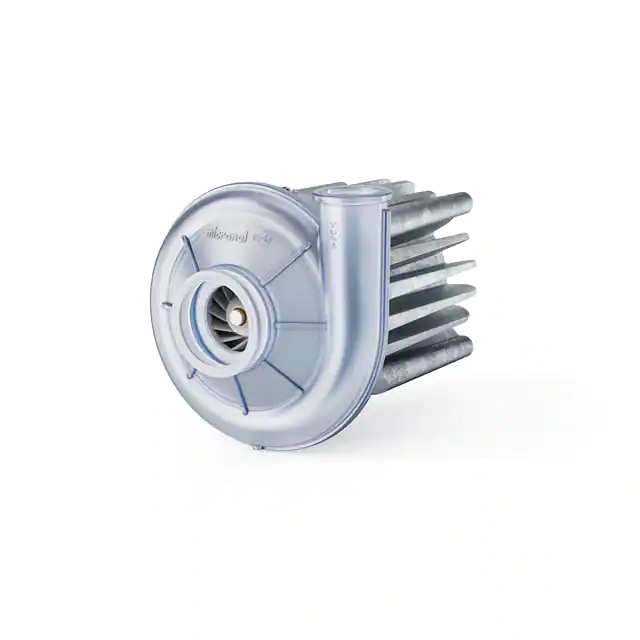

U71HL-024KM-4FAN BLOWER 73X86MM 24VDC WIRE |
1,284 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 73mm L x 69mm H | 86.00mm | 16.6 CFM (0.465m³/min) | 27.701 in H2O (6900.0 Pa) | - | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP) | 63.0dB(A) | 63 W | 36600 RPM | 4 Wire Leads | IP40 | -4 ~ 113°F (-20 ~ 45°C) | CE | - |
|

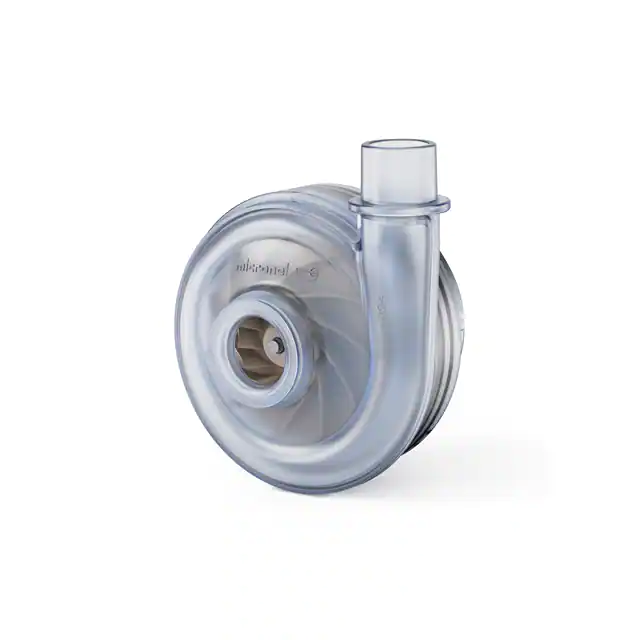

U65MN-024KS-5FAN BLOWER 73.7X44.6MM 24VDC |
3,902 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 73.7mm L x 66.4mm H | 44.60mm | 12.0 CFM (0.336m³/min) | 21.679 in H2O (5400.0 Pa) | - | Blower | Hall Sensor, Motor Winding, NTC Thermistor | 47.0dB(A) | 45 W | 42000 RPM | 10 Position Rectangular Connector | IP10 | -4 ~ 122°F (-20 ~ 50°C) | CE | - |
|
U71MX-024KX-4FAN BLOWER 74.1X59MM 24VDC WIRE |
2,657 |
|
规格书 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 74.1mm L x 69.4mm H | 59.00mm | 13.9 CFM (0.389m³/min) | 16.46 in H2O (4100.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP) | 47.0dB(A) | 25 W | 28900 RPM | 4 Wire Leads | - | -4 ~ 122°F (-20 ~ 50°C) | CE | - |
|

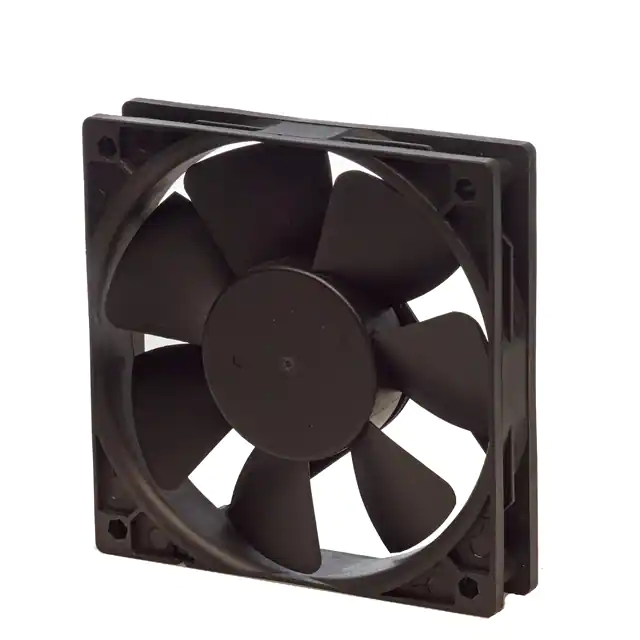

R1225Y24BPLB2-7FAN AXIAL 120X25MM 24VDC WIRE |
4,582 |
|
规格书 |
R | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 129.4 CFM (3.62m³/min) | 0.534 in H2O (133.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 7.92 W | 4200 RPM | 2 Wire Leads | - | - | CE, cURus | - |
|

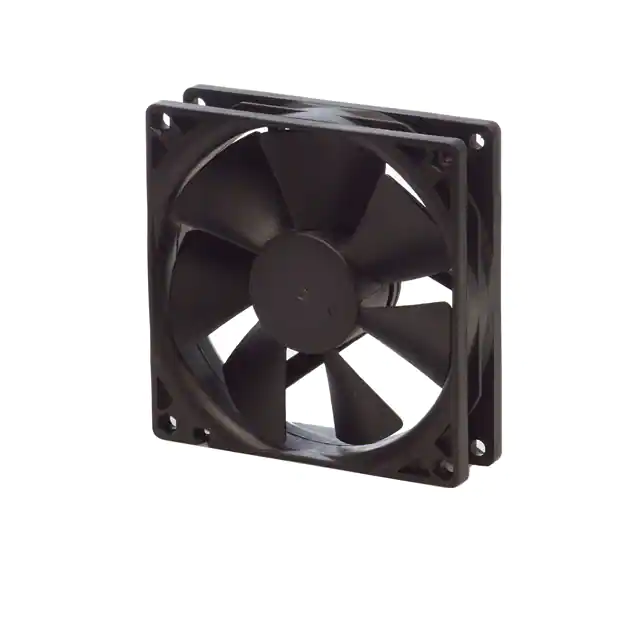

C9225H12BPLB2-7FAN AXIAL 92X25MM 12VDC WIRE |
1,938 |
|
规格书 |
C | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.7dB(A) | 2.67 W | 3000 RPM | 2 Wire Leads | - | - | CE, cURus | - |
|
U85MX-024KX-5FAN BLOWER 79.1X55.4MM 21VDC |
2,947 |
|
规格书 |
- | Bulk | Active | 21VDC | Rectangular/Rounded - 79.1mm L x 76.8mm H | 55.40mm | 30.4 CFM (0.851m³/min) | 49.38 in H2O (12300.0 Pa) | - | Blower | Hall Sensor, Motor Winding | 77.0dB(A) | 183 W | 39000 RPM | 8 Position Rectangular Connector | IP40 | -4 ~ 113°F (-20 ~ 45°C) | CE | - |
