购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BG0903-B052-00L-00FAN BLOWER 97X33MM 24VDC WIRE |
2,309 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Sensor | 47.5dB | 5.04 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B052-00S-00FAN BLOWER 97X33MM 24VDC WIRE |
4,846 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Speed Sensor (Tach) | 47.5dB | 5.04 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B053-00L-00FAN BLOWER 97X33MM 24VDC WIRE |
4,303 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.903 in H2O (225.0 Pa) | Ball | Blower | Locked Rotor Sensor | 51.5dB | 7.92 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B053-00S-00FAN BLOWER 97X33MM 24VDC WIRE |
1,978 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 24.7 CFM (0.692m³/min) | 0.903 in H2O (225.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 51.5dB | 7.92 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG0903-B054-00S-00FAN BLOWER 97X33MM 24VDC WIRE |
3,981 |
|
规格书 |
09533GA | Box | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 54.5dB | 11.8 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
BG1002-B044-000-00FAN BLOWER 101X25MM 12VDC WIRE |
4,972 |
|
规格书 |
BG | Box | Obsolete | 12VDC | Square/Rounded - 101mm L x 107mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.763 in H2O (190.0 Pa) | Ball | Blower | - | 47.0dB | 6.7 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL | 0.375 lb (170.1 g) |
|
|
BG1002-B044-00L-00FAN BLOWER 101X25MM 12VDC WIRE |
3,919 |
|
规格书 |
BG | Box | Obsolete | 12VDC | Square/Rounded - 101mm L x 107mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.763 in H2O (190.0 Pa) | Ball | Blower | Locked Rotor Sensor | 47.0dB | 6.7 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL | 0.375 lb (170.1 g) |
|

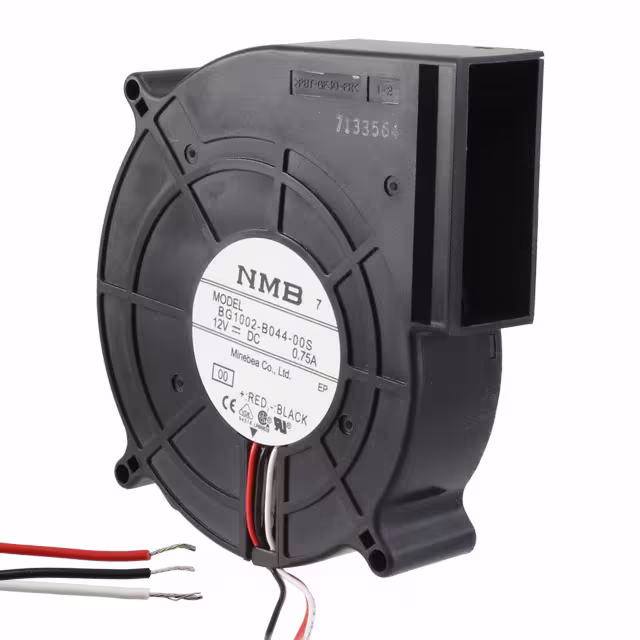

BG1002-B044-00S-00FAN BLOWER 101X25MM 12VDC WIRE |
3,676 |
|
规格书 |
BG | Box | Obsolete | 12VDC | Square/Rounded - 101mm L x 107mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.763 in H2O (190.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 47.0dB | 6.7 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL | 0.375 lb (170.1 g) |
|
|
BG1203-B042-00L-00FAN BLOWER 120X32MM 12VDC WIRE |
1,627 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Locked Rotor Sensor | 41.5dB | 3.6 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B042-00S-00FAN BLOWER 120X32MM 12VDC WIRE |
4,107 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 41.5dB | 3.6 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B043-00L-00FAN BLOWER 120X32MM 12VDC WIRE |
2,653 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | Locked Rotor Sensor | 46.5dB | 5.78 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B043-00S-00FAN BLOWER 120X32MM 12VDC WIRE |
3,947 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 46.5dB | 5.78 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B044-00S-00FAN BLOWER 120X32MM 12VDC WIRE |
2,776 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.702 in H2O (175.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 48.5dB(A) | 7.8 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B045-00L-00FAN BLOWER 120X32MM 12VDC WIRE |
1,037 |
|
规格书 |
12032GA | Box | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | Locked Rotor Sensor | 54.0dB | 11.2 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B052-00L-00FAN BLOWER 120X32MM 24VDC WIRE |
3,858 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Locked Rotor Sensor | 46.0dB | 4.08 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B052-00S-00FAN BLOWER 120X32MM 24VDC WIRE |
3,182 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 22.2 CFM (0.622m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 46.0dB | 4.08 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B053-00L-00FAN BLOWER 120X32MM 24VDC WIRE |
3,334 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | Locked Rotor Sensor | 50.5dB | 6 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B053-00S-00FAN BLOWER 120X32MM 24VDC WIRE |
2,127 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 26.1 CFM (0.731m³/min) | 0.582 in H2O (145.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 50.5dB | 6 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B054-00S-00FAN BLOWER 120X32MM 24VDC WIRE |
3,630 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.702 in H2O (175.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 52.0dB | 7.2 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
|
BG1203-B055-00L-00FAN BLOWER 120X32MM 24VDC WIRE |
2,773 |
|
规格书 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | Locked Rotor Sensor | 55.0dB | 11.5 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
