购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

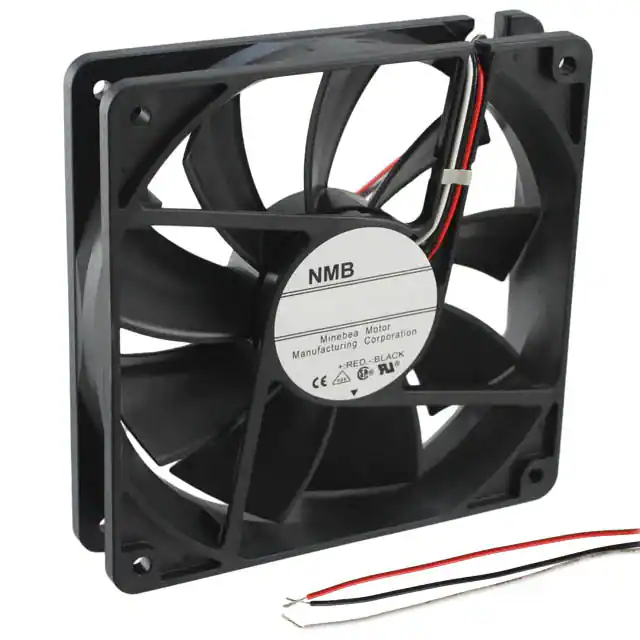

4710KL-04W-B49-E50FAN AXIAL 119X25.5MM 12VDC WIRE |
4,110 |
|
规格书 |
4710KL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.5dB | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B59-B00FAN AXIAL 119X25.5MM 12VDC WIRE |
4,653 |
|
规格书 |
4710KL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB | 6.6 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B59-E50FAN AXIAL 119X25.5MM 12VDC WIRE |
1,932 |
|
规格书 |
4710KL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 6.6 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B39-B00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,703 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 88.2 CFM (2.47m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.6 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B39-E00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,720 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 88.2 CFM (2.47m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.6 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B49-B00FAN AXIAL 119X25.5MM 24VDC WIRE |
4,490 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 5.28 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B49-B50FAN AXIAL 119X25.5MM 24VDC WIRE |
1,291 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.5dB | 5.28 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B49-E00FAN AXIAL 119X25.5MM 24VDC WIRE |
3,986 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 5.28 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B49-E50FAN AXIAL 119X25.5MM 24VDC WIRE |
3,058 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.5dB | 5.28 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B59-B00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,333 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB | 6.96 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B59-E50FAN AXIAL 119X25.5MM 24VDC WIRE |
1,489 |
|
规格书 |
4710KL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 6.96 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
4715SL-05W-B49-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,447 |
|
规格书 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 141.9 CFM (3.97m³/min) | 0.546 in H2O (136.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.5dB | 12.5 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-05W-B69-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,767 |
|
规格书 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.5dB | 22.4 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-05W-B69-D50FAN AXIAL 119X38.4MM 24VDC WIRE |
3,496 |
|
规格书 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 59.5dB | 22.4 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B59-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
1,179 |
|
规格书 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.5dB | 17.8 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B69-D50FAN AXIAL 119X38.4MM 48VDC WIRE |
2,409 |
|
规格书 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 59.5dB | 23.5 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
5910PL-05W-B49-L50FAN AXIAL 172X25.4MM 24VDC WIRE |
3,507 |
|
规格书 |
5910PL | Box | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 230.0 CFM (6.44m³/min) | 0.566 in H2O (141.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.5dB | 20.6 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
|
5910PL-07W-B19-L50FAN AXIAL 172X25.4MM 48VDC WIRE |
1,310 |
|
规格书 |
5910PL | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 170.0 CFM (4.76m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.1dB | 10.6 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
|
5910PL-07W-B49-L00FAN AXIAL 172X25.4MM 48VDC WIRE |
3,028 |
|
规格书 |
5910PL | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 230.0 CFM (6.44m³/min) | 0.566 in H2O (141.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 61.5dB | 21.6 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
|
5910PL-07W-B59-L50FAN AXIAL 172X25.4MM 48VDC WIRE |
2,211 |
|
规格书 |
5910PL | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB | 24.5 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
