购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110KL-04W-B50-L00FAN AXIAL 80X25MM 12VDC WIRE |
4,750 |
|
规格书 |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.76 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B60-L00FAN AXIAL 80X25MM 12VDC WIRE |
4,688 |
|
规格书 |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.12 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B60-P00FAN AXIAL 80X25MM 12VDC WIRE |
4,190 |
|
规格书 |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.12 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B70-E00FAN AXIAL 80X25MM 12VDC WIRE |
1,885 |
|
规格书 |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.86 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B70-L00FAN AXIAL 80X25MM 12VDC WIRE |
3,855 |
|
规格书 |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.86 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B10-L00FAN AXIAL 80X25MM 24VDC WIRE |
4,621 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 22.0dB | 1.44 W | 2150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B20-L00FAN AXIAL 80X25MM 24VDC WIRE |
2,541 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B20-P00FAN AXIAL 80X25MM 24VDC WIRE |
1,843 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B30-L00FAN AXIAL 80X25MM 24VDC WIRE |
4,593 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.92 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B30-P00FAN AXIAL 80X25MM 24VDC WIRE |
4,434 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.92 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B40-L00FAN AXIAL 80X25MM 24VDC WIRE |
3,394 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B40-P00FAN AXIAL 80X25MM 24VDC WIRE |
2,668 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B50-L00FAN AXIAL 80X25MM 24VDC WIRE |
2,157 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.88 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B60-L00FAN AXIAL 80X25MM 24VDC WIRE |
1,784 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B60-P00FAN AXIAL 80X25MM 24VDC WIRE |
1,447 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B70-S00FAN AXIAL 80X25MM 24VDC WIRE |
4,886 |
|
规格书 |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3112KL-04W-B30-E00FAN AXIAL 80X32MM 12VDC WIRE |
3,090 |
|
规格书 |
3112KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.141 in H2O (35.1 Pa) | Ball | Tubeaxial | - | 32.0dB | 2.04 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3112KL-04W-B50-E00FAN AXIAL 80X32MM 12VDC WIRE |
3,792 |
|
规格书 |
3112KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 51.5 CFM (1.44m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 41.0dB | 4.2 W | 3850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3112KL-04W-B60-E00FAN AXIAL 80X32MM 12VDC WIRE |
4,692 |
|
规格书 |
3112KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 58.6 CFM (1.64m³/min) | 0.317 in H2O (78.9 Pa) | Ball | Tubeaxial | - | 44.0dB | 5.4 W | 4350 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

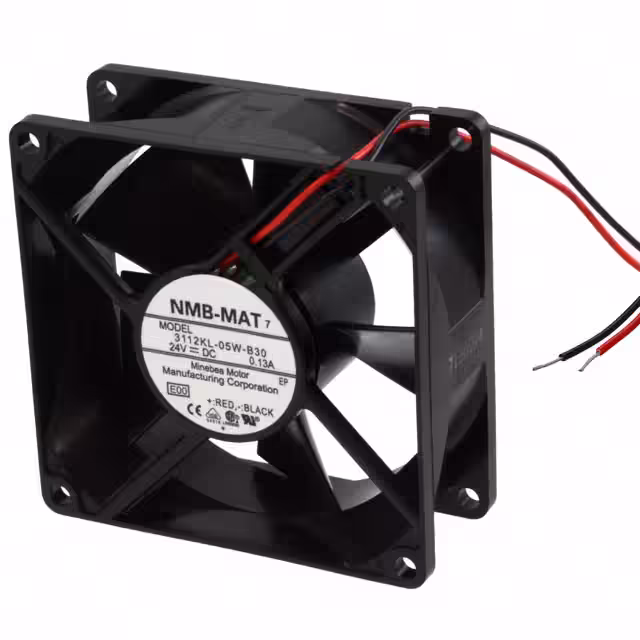

3112KL-05W-B30-E00FAN AXIAL 80X32MM 24VDC WIRE |
3,082 |
|
规格书 |
3112KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.141 in H2O (35.1 Pa) | Ball | Tubeaxial | - | 32.0dB | 2.4 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
