购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OD172AP-24MBThermal Products |
4,299 |
|
- |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.3dB(A) | 13 W | 2475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-48MBThermal Products |
2,823 |
|
- |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 41.3dB(A) | 14.5 W | 2475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172AP-12HBThermal Products |
4,216 |
|
- |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 51.00mm | 230.0 CFM (6.44m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 52.7dB(A) | 23 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
4112N/2H4PDC TUBEAXIAL FAN |
3,614 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448S1D0011140X38MM 48VDC LOW NOISE RBLS LC |
4,424 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448S1D001140X38MM 48VDC LOW NOISE LCKRTRS |
2,276 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17000297AFAN AXIAL 162.1X50.8MM MFXE48Z |
1,107 |
|
规格书 |
Mixtus | Box | Active | 48VDC | Round - 162mm Dia | 50.80mm | 394.0 CFM (11.03m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 68.7dB(A) | 74.4 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|

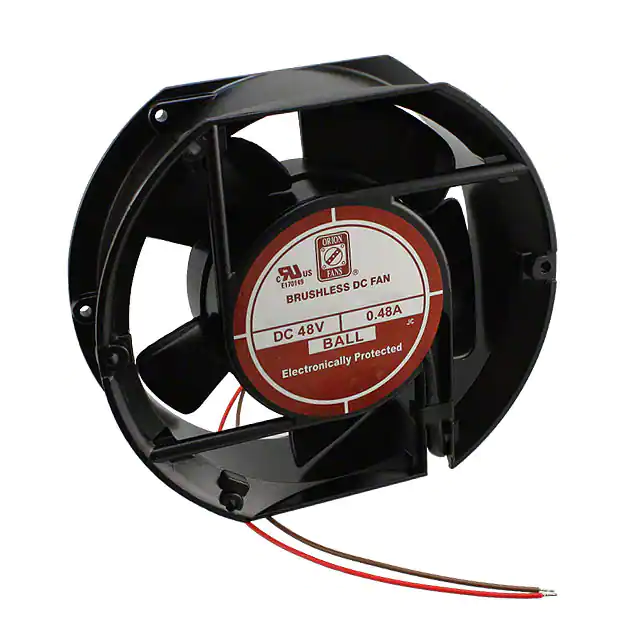

OD172SAP-48HBFAN AXIAL 172X50.8MM 48VDC WIRE |
1,709 |
|
规格书 |
OD172S | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAP-48LBThermal Products |
4,225 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172SAP-48MBThermal Products |
2,999 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8314/2HU-507FAN AXIAL 80X32MM 24VDC WIRE |
1,321 |
|
- |
8300U | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 47.1 CFM (1.32m³/min) | 0.554 in H2O (138.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, EAC, UL, VDE | - |
|
|
9GV1448P1H001FAN AXIAL 140X38MM 48VDC WIRE |
4,607 |
|
规格书 |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.16 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
OD172SAP-12HHBIP68FAN AXIAL 172X51MM 12VDC WIRE |
2,072 |
|
规格书 |
OD172SAP | Box | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 50.4 W | 3800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9RA1448H1D0011140X38MM 48VDC LOW NOISE RBLS LC |
3,541 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448H1D001140X38MM 48VDC LOW NOISE LCKRTRS |
2,488 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448M1D0011140X38MM 48VDC LOW NOISE RBLS LC |
4,819 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1448M1D001140X38MM 48VDC LOW NOISE LCKRTRS |
3,631 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17000296AFAN AXIAL 162X50.8MM MFXE24Z 24V |
2,698 |
|
规格书 |
Mixtus | Box | Active | 24VDC | Round - 162mm Dia | 50.80mm | 394.0 CFM (11.03m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 68.7dB(A) | 74.4 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
19039849AFAN MOTOR IMP 175X69MM 48V TTL |
1,598 |
|
规格书 |
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 68.58mm | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.2 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19039852AFAN MOTOR IMP 175X69MM 48V TTL |
2,897 |
|
规格书 |
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 45.1 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
