购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L1724H5D01FAN AXIAL 172X51MM 24VDC WIRE |
1,563 |
|
规格书 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1724M5D01FAN AXIAL 172X51MM 24VDC WIRE |
2,982 |
|
规格书 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1712M501FAN AXIAL 172X51MM 12VDC WIRE |
1,220 |
|
规格书 |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 5.76 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1724M501FAN AXIAL 172X51MM 24VDC WIRE |
4,157 |
|
规格书 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
LPC17KM99-BTLREC FAN 162X55MM 90-264VAC |
4,125 |
|
规格书 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4184NXHUFAN AXIAL 119X38MM 24VDC WIRE |
3,154 |
|
- |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | - | - | - | 0.86 lb (390.09 g) |
|

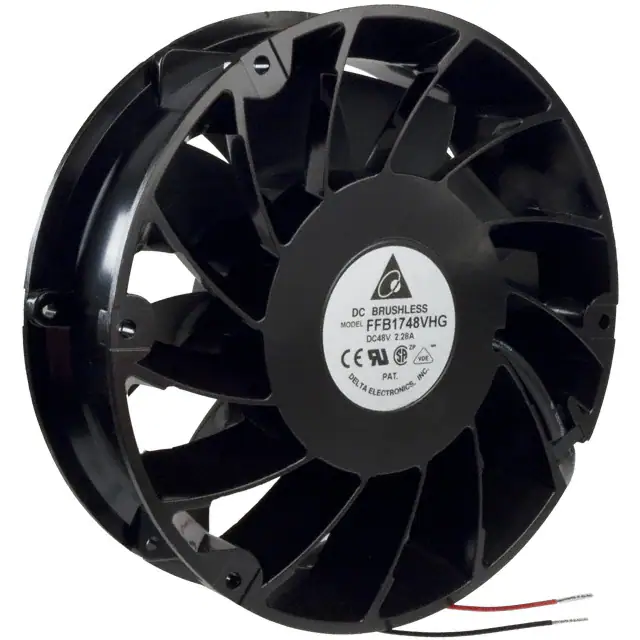

FFB1748VHGFAN AXIAL 172X50.8MM 48VDC WIRE |
2,395 |
|
规格书 |
FFB | Tray | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 432.8 CFM (12.12m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 91.2 W | 4600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 2.1 lbs (952.5 g) |
|
|

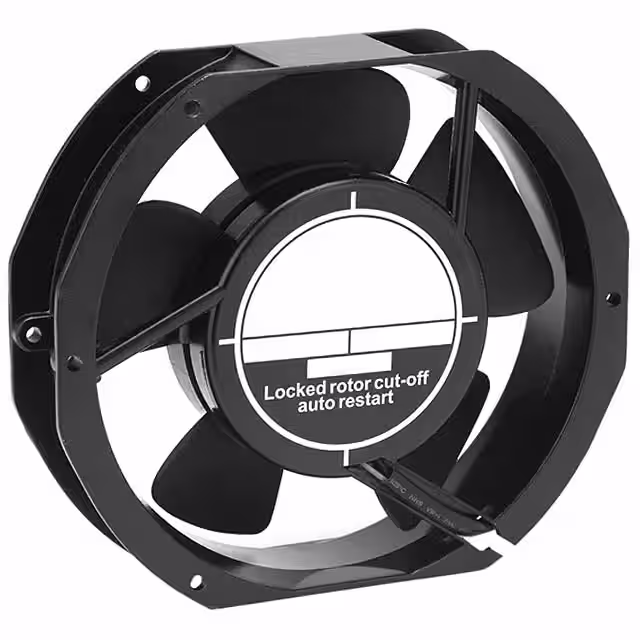

OD172SAP-12MBDC FAN 12V 172X150X51MM |
1,513 |
|
规格书 |
OD172SAP | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 13.2 W | 2500 RPM | 2 Wire Leads | - | -13 ~ 149°F (-25 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172SAP-12LBThermal Products |
3,380 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19040799AFAN MIXTUS 24VDC 96W 5050RPM |
3,364 |
|
规格书 |
Mixtus | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 390.0 CFM (10.92m³/min) | - | Ball | Tubeaxial | - | - | 96 W | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
19041040AFAN MIXTUS 48VDC 96W 5050RPM |
1,681 |
|
规格书 |
Mixtus | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 390.0 CFM (10.92m³/min) | - | Ball | Tubeaxial | - | - | 96 W | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
19040719AFAN MIXTUS 24VDC 96W 5050RPM |
1,310 |
|
- |
Mixtus | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 390.0 CFM (10.92m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 69.1dB(A) | 96.5 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
19040720AFAN MIXTUS 48VDC 96W 5050RPM |
4,511 |
|
- |
Mixtus | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 390.0 CFM (10.92m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 69.1dB(A) | 96.5 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 2 lbs (907.2 g) |
|

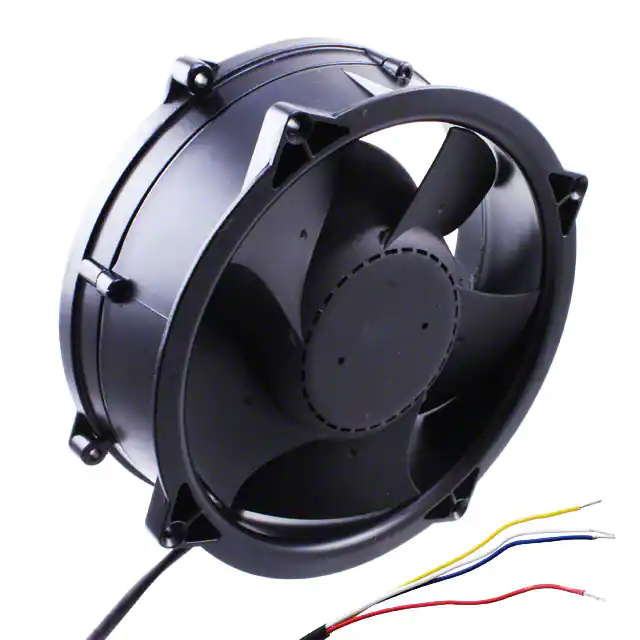

19044008AFAN AXIAL 200.7X69.9MM MFSE24Z |
1,624 |
|
规格书 |
Mixtus | Bulk | Active | 24VDC | Round - 200.7mm Dia | 70.00mm | 530.0 CFM (14.84m³/min) | 2.820 in H2O (702.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.4dB(A) | 108 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CCC, CE, UL | 4 lbs (1.8 kg) |
|
OD172SAP-24HB01FAN AXIAL 172X50.8MM 24VDC WIRE |
1,588 |
|
规格书 |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 52.0dB | - | 3300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAP-24MBThermal Products |
2,068 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172SAP-24LBThermal Products |
4,577 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L5748H502FAN AXIAL 172X51MM 48VDC WIRE |
3,680 |
|
规格书 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 13.44 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109L5748M502FAN AXIAL 172X51MM 48VDC WIRE |
3,670 |
|
规格书 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 5.28 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109L1748H502FAN AXIAL 172X51MM 48VDC WIRE |
2,312 |
|
规格书 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 13.44 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
