购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA280AP-22-1TB1868FAN 230AC 280X280X89MM IP68 TERM |
3,584 |
|
规格书 |
OA280AP | Box | Active | 230VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|

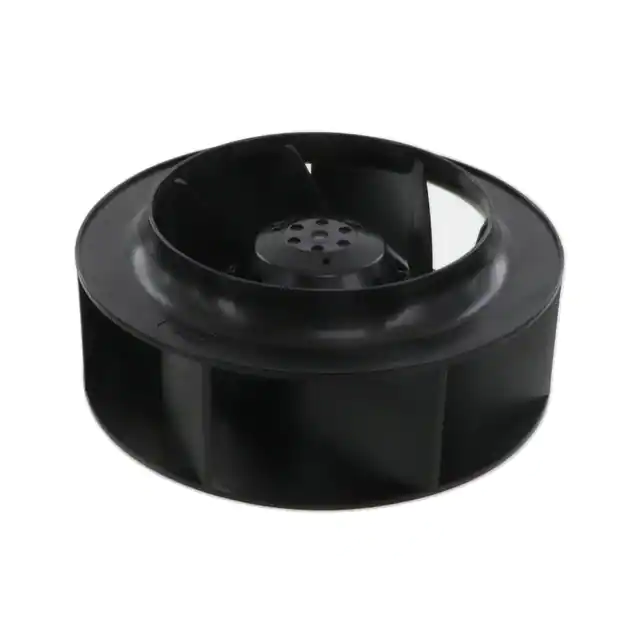

R2E225-BD92-37MOTORIZED IMPELLER |
1,404 |
|
规格书 |
R2E225 | Bulk | Active | 230VAC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 200W | 2950 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CCC, CE, CSA, EAC | - |
|

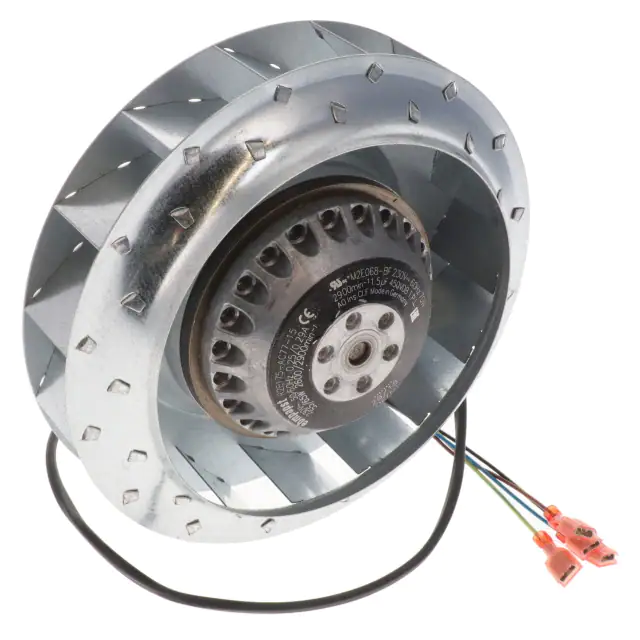

R2E175-AC77-15MOTORIZED IMPELLER |
3,371 |
|
规格书 |
R2E175 | Bulk | Active | 230VAC | Round - 175mm Dia | - | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 70.0W | 2900 RPM | 4 Wire Leads with QC Receptacles | IP44 | -13°F (-25°C) | CCC, CE, CSA, EAC, UL | - |
|
D2E097-BI56-48BLOWER |
2,424 |
|
规格书 |
D2E097 | Bulk | Active | 230VAC | Rectangular/Rounded - 162mm L x 165mm H | 180.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 100W | 1850 RPM | 4 Wire Leads | IP20 | -13 ~ 95°F (-25 ~ 35°C) | CCC, CE, EAC | - |
|

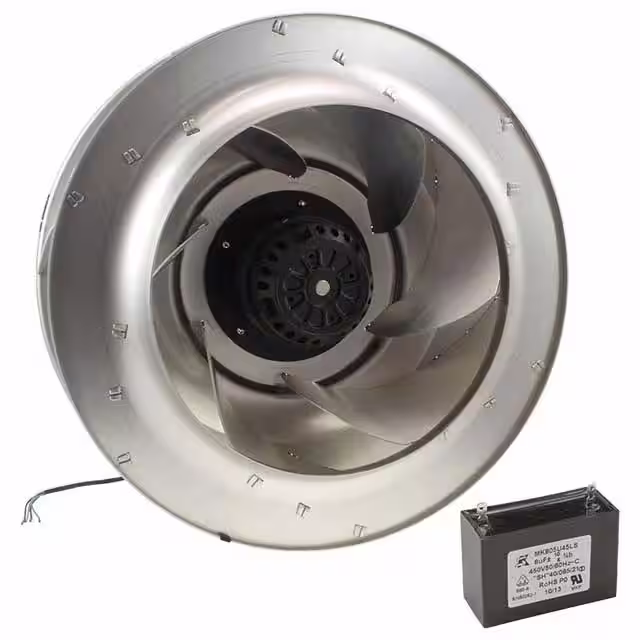

UF360AAA12-H1C4AIMPELLER 360X167MM 115VAC |
2,769 |
|
规格书 |
UF360AAA | Bulk | Active | 115VAC | Round - 360mm Dia | 167.3mm | 1645.0 CFM (46.06m³/min) | 2.200 in H2O (548.0 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor | 70.0dB(A) | 270W | 1600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 11 lbs (5 kg) |
|
OA280AP-22-1TB1869KAC FAN, IP69K, 280X280X89MM, 230 |
4,496 |
|
规格书 |
OA280AP-IP69K | Box | Active | 230VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|
|
OA280AP-22-1WB1869KAC FAN, IP69K, 280X280X89MM, 230 |
4,771 |
|
规格书 |
OA280AP-IP69K | Box | Active | 230VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|
|
OA280AP-11-1WB1869KAC FAN, IP69K, 280X280X89MM, 115 |
2,369 |
|
规格书 |
OA280AP-IP69K | Box | Active | 115VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|
|
OA280AP-11-1TB1869KAC FAN, IP69K, 280X280X89MM, 115 |
4,531 |
|
规格书 |
OA280AP-IP69K | Box | Active | 115VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|

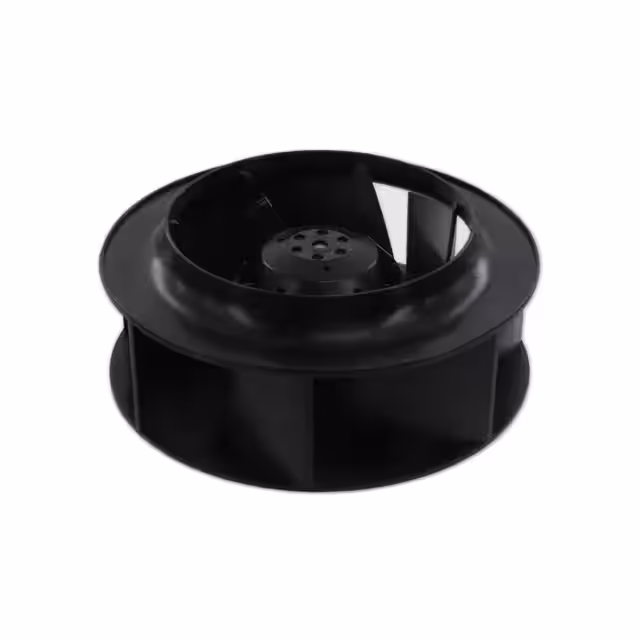

R2E225-BD40-28MOTORIZED IMPELLER |
4,453 |
|
规格书 |
R2E225 | Bulk | Active | 115VAC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 195W | 3050 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA, UL | - |
|
G2E108-AG63-01MOTORIZED IMPELLER |
4,898 |
|
规格书 |
G2E108 | Bulk | Active | 230VAC | Rectangular/Rounded - 159mm L x 168mm H | 115.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 35.00W | 1850 RPM | 4 Wire Leads | IP44 | -13 ~ 176°F (-25 ~ 80°C) | CCC, CE, EAC | - |
|
A4E330-AP18-13AC AXIAL FAN |
4,265 |
|
规格书 |
A4E330 | Bulk | Active | 230VAC | Round - 330mm Dia | 91.00mm | - | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 140W | 1600 RPM | 4 Wire Leads | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, CSA, UL | - |
|

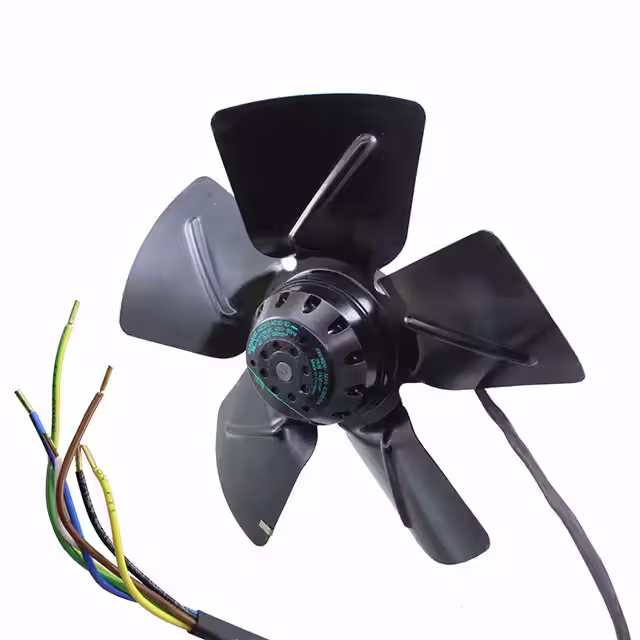

A4D315-AC20-50FAN AXIAL 315MM 230/400VAC |
2,531 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | Tubeaxial | - | - | - | - | - | - | - | CE, CSA, UL | - |
|
R4E250-AH01-05MOTORIZED IMPELLER |
4,093 |
|
规格书 |
R4E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 99.00mm | 547.0 CFM (15.32m³/min) | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 64.0dB(A) | 43.00W | 1600 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, EAC | - |
|
G2E120-AR77-23MOTORIZED IMPELLER |
4,113 |
|
规格书 |
G2E120 | Bulk | Active | 240VAC | Rectangular/Rounded - 178mm L x 193.5mm H | 115.0mm | - | 0.201 in H2O (50.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 115W | 2950 RPM | Terminal Block | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CE | - |
|
G2E133-DN77-27MOTORIZED IMPELLER |
2,132 |
|
规格书 |
G2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 171mm L x 180mm H | 81.00mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 110W | 2100 RPM | 4 Wire Leads | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CE, CSA, UL | - |
|

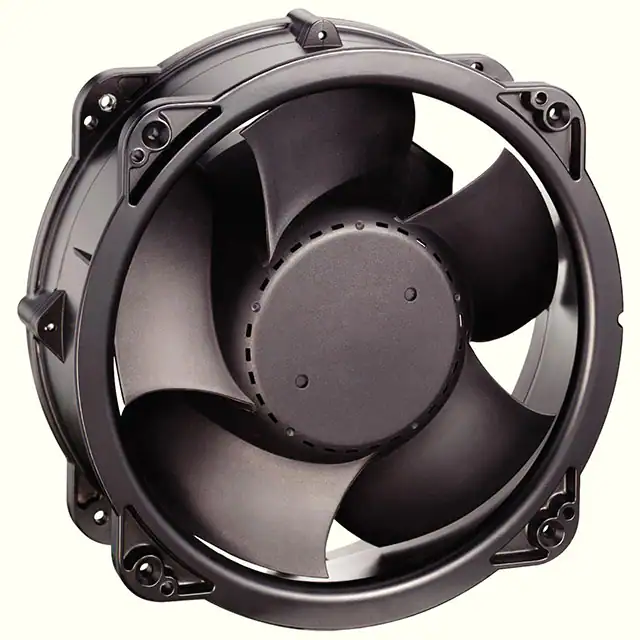

W2E208-BA86-51FAN AXIAL 260X80MM 115VAC TERM |
1,340 |
|
规格书 |
W2E208 | Bulk | Active | 115VAC | Round - 260mm Dia | 80.00mm | 544.0 CFM (15.23m³/min) | - | Ball | Tubeaxial | - | 70.0dB(A) | 87.0W | - | 2 Terminals | - | - | CSA, UL, VDE | 6.4 lbs (2.9 kg) |
|
S2E250-AE31-08FAN AXIAL |
2,550 |
|
规格书 |
S2E250 | Bulk | Active | 115VAC | Round - 300mm Dia | 88.70mm | - | 0.441 in H2O (110.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 166W | 2690 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL | - |
|
G2E140-AL30-48FAN BLWR CENT 226X130MM 115VAC |
3,125 |
|
规格书 |
G2E140 | Bulk | Active | 115VAC | Rectangular - 226mm L x 247mm H (140mm Dia) | 130.0mm | 179.5 CFM (5.03m³/min) | - | Ball | Blower, Centrifugal | - | 60.0dB(A) | 130W | - | 2 Wire Leads | - | - | - | 6.6 lbs (3 kg) |
|

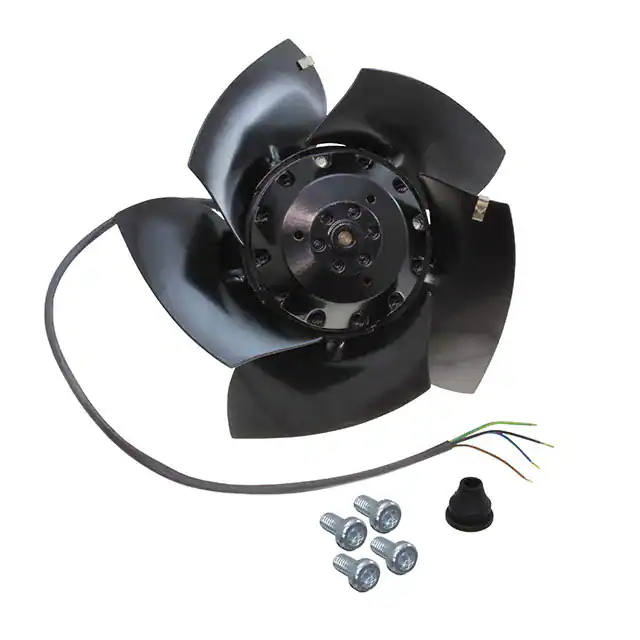

A2D210-AB10-05AC AXIAL FAN |
4,455 |
|
规格书 |
A2D210 | Bulk | Active | 400VAC | Round - 209.5mm Dia | 72.50mm | - | - | Ball | Tubeaxial, 3 Phase | - | - | 86.0W | 3050 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 194°F (-25 ~ 90°C) | CE, CSA, UL | - |
