购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

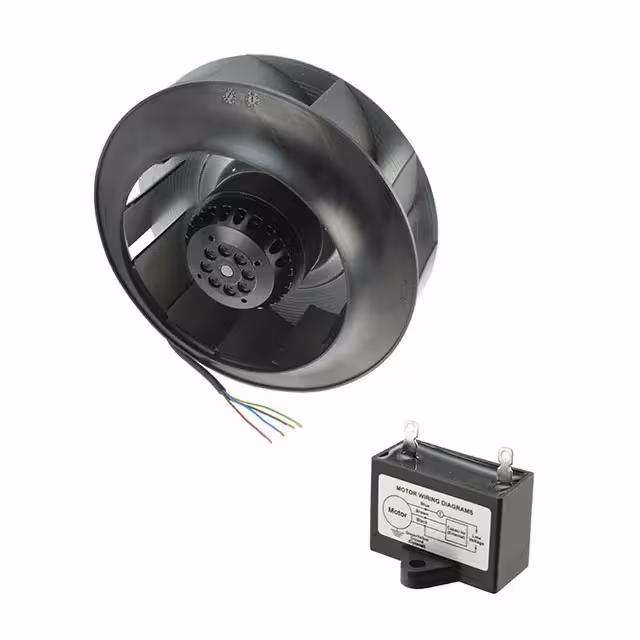

UF250APA23-H1C2AIMPELLER 251X98MM 230VAC |
3,909 |
|
规格书 |
UF250APA | Bulk | Active | 230VAC | Round - 251mm Dia | 98.00mm | 850.0 CFM (23.80m³/min) | 2.900 in H2O (722.4 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 76.0dB(A) | 240W | 2700 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 6.8 lbs (3.1 kg) |
|

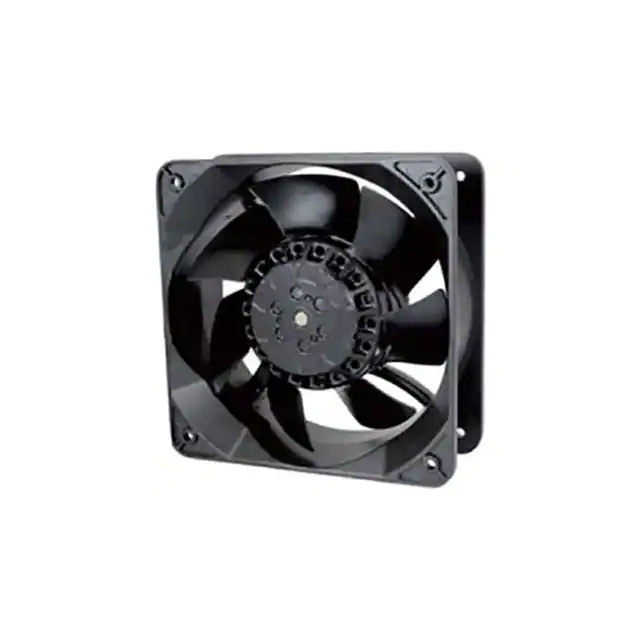

OA180APL-11-1TB1869KAC FAN, IP69K, 180X180X65MM, 115 |
4,468 |
|
规格书 |
OA180APL-IP69K | Box | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 400.0 CFM (11.20m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB | 80.0W | 3250 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|
OA2543AP-11-1WB1869KAC FAN, IP69K, 254X254X89MM, 115 |
4,171 |
|
规格书 |
OA2543AP-IP69K | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
OA2547AN-22-1WB1856FAN AXIAL 254X89MM 230VAC WIRE |
2,370 |
|
规格书 |
OA2547AN | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 5.9 lbs (2.7 kg) |
|

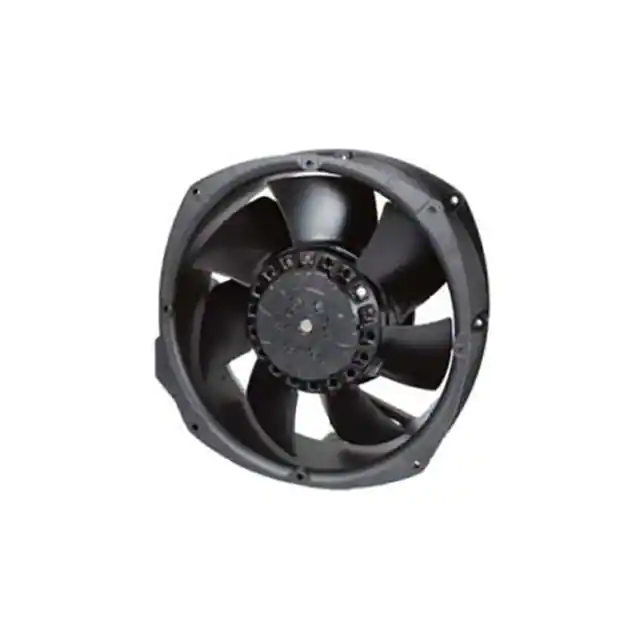

OA200AP-11-1WB1869KAC FAN, IP69K, 220X220X72MM, 115 |
4,007 |
|
规格书 |
OA200AP-IP69K | Box | Active | 115VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|

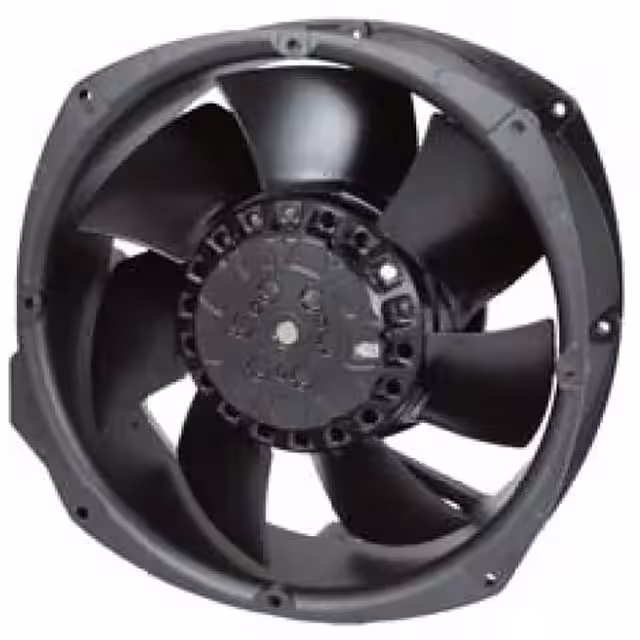

OA200AP-11-1WB1868FAN 115AC 220X220X70MM IP68 WIRE |
1,692 |
|
规格书 |
OA200AP | Box | Active | 115VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
|
OA200AP-11-1TB1868FAN 115AC 220X220X70MM IP68 TERM |
1,754 |
|
规格书 |
OA200AP | Box | Active | 115VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
W2E142-BB01-28FAN AXIAL |
1,373 |
|
规格书 |
W2E142 | Bulk | Active | 230VAC | Rectangular - 172mm L x 150mm H | 38.00mm | - | - | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 28.00W | 3350 RPM | 2 Terminals | IP22 | -13 ~ 149°F (-25 ~ 65°C) | CE, CSA, UL, VDE | - |
|
OA225AP-22-1WB1869KAC FAN, IP69K, 225X225X80MM, 230 |
1,896 |
|
规格书 |
OA225AP-IP69K | Box | Active | 230VAC | Square - 225mm L x 225mm H | 80.00mm | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 66.0dB | 80.0W | 3100 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.8 lbs (2.2 kg) |
|
|
OA225AP-22-1TB1869KAC FAN, IP69K, 225X225X80MM, 230 |
3,145 |
|
规格书 |
* | Box | Active | 230VAC | Square - 225mm L x 225mm H | 80.00mm | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 66.0dB | 80.0W | 3100 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.8 lbs (2.2 kg) |
|
OA225AP-11-1WB1868FAN 115AC 225X240X80MM IP68 WIRE |
2,280 |
|
规格书 |
OA225AP | Box | Active | 115VAC | Square - 225mm L x 225mm H | 80.00mm | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 66.0dB | 80.0W | 3100 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.8 lbs (2.2 kg) |
|
|
OA225AP-11-1TB1868FAN 115AC 225X240X80MM IP68 TERM |
4,472 |
|
规格书 |
OA225AP | Box | Active | 115VAC | Square - 225mm L x 225mm H | 80.00mm | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 66.0dB | 80.0W | 3100 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.8 lbs (2.2 kg) |
|
OA205AP-11-1WB1868FAN 115AC 205X205X72MM IP68 WIRE |
2,361 |
|
规格书 |
OA205AP | Box | Active | 115VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
R87T-A4A05HFAN AXIAL 150X38MM 200VAC WIRE |
1,372 |
|
规格书 |
R87T | Bulk | Active | 200VAC | Round - 150mm Dia | 38.00mm | 203.4 CFM (5.70m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 58.0dB | 48.00W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 1.9 lbs (861.8 g) |
|

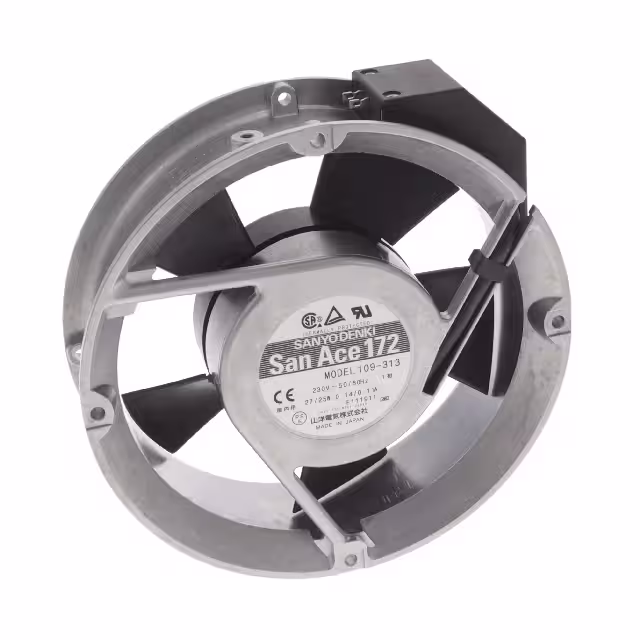

109-313FAN 172X51MM 230VAC RND |
2,543 |
|
规格书 |
San Ace 172 | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 25.00W | 3500 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.3 lbs (1 kg) |
|
OA2547AP-22-1TB1868FAN 230AC 254X254X89MM IP68 TERM |
1,040 |
|
规格书 |
OA2547AP | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.6 lbs (2.5 kg) |
|
|
OA2547AP-22-1WB1868FAN 230AC 254X254X89MM IP68 WIRE |
1,319 |
|
规格书 |
OA2547AP | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.6 lbs (2.5 kg) |
|
OA205AP-11-1WB1869KAC FAN, IP69K, 205X205X72MM, 115 |
3,742 |
|
规格书 |
OA205AP-IP69K | Box | Active | 115VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
|
OA2547AP-11-1WB1868FAN 115AC 254X254X89MM IP68 WIRE |
2,868 |
|
规格书 |
OA2547AP | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.6 lbs (2.5 kg) |
|
OA2543AP-11-1TB1868FAN 115AC 254X254X89MM IP68 TERM |
4,566 |
|
规格书 |
OA2543AP | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
