购物车电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P8-25-252-12-PP8-P Micro Linear Actuator |
3,294 |
|
规格书 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 0.984" (25.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.20mm | - | Integrated Sensor | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-50-252-12-PP8-P Micro Linear Actuator |
2,407 |
|
规格书 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.30mm | - | Integrated Sensor | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-25-165-12-PP8-P Micro Linear Actuator |
1,053 |
|
规格书 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 0.984" (25.00mm) | 24.73lbf (110.0N) | 40.46 lbf (180N) | 0.36 in/s (9.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.20mm | - | Integrated Sensor | 165 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-100-50-6-IL12-I MICRO LINEAR ACTUATOR |
3,868 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
T16-100-256-12-PT16-P MICRO LINEAR ACTUATOR |
1,572 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | - | 256 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
L12-30-100-12-IL12-I MICRO LINEAR ACTUATOR |
3,257 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-50-6-IL12-I MICRO LINEAR ACTUATOR |
2,568 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

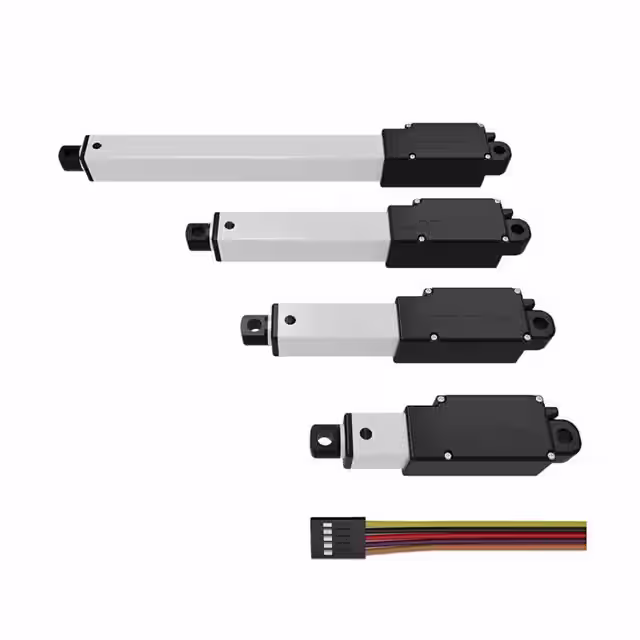

L12-100-100-12-IL12-I MICRO LINEAR ACTUATOR |
2,070 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-50-12-IL12-I MICRO LINEAR ACTUATOR |
1,647 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-210-6-IL12-I MICRO LINEAR ACTUATOR |
1,024 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-50-12-IL12-I MICRO LINEAR ACTUATOR |
3,179 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-50-6-IL12-I MICRO LINEAR ACTUATOR |
3,823 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-210-12-IL12-I MICRO LINEAR ACTUATOR |
4,577 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

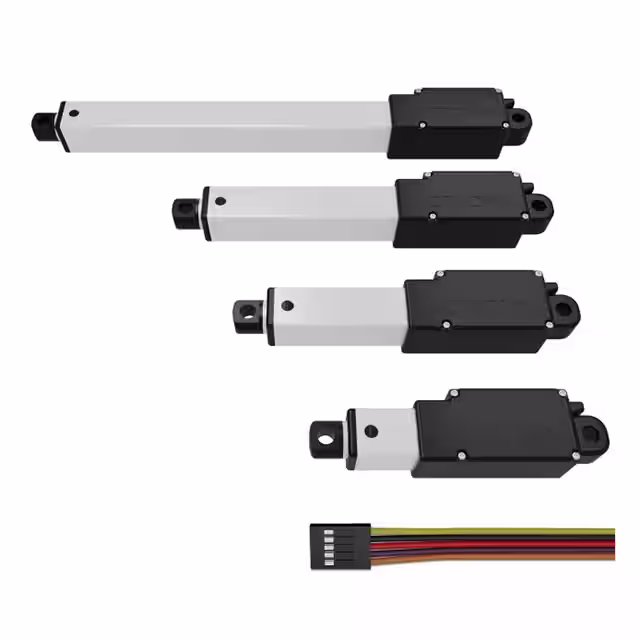

L12-100-100-6-IL12-I MICRO LINEAR ACTUATOR |
2,420 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-100-6-IL12-I MICRO LINEAR ACTUATOR |
1,369 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-50-100-12-IL12-I MICRO LINEAR ACTUATOR |
2,584 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-100-210-12-IL12-I MICRO LINEAR ACTUATOR |
3,815 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
T16-300-64-12-PT16-P MICRO LINEAR ACTUATOR |
2,322 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 11.811" (300.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±1.20mm | - | - | 64 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
L12-50-50-12-IL12-I MICRO LINEAR ACTUATOR |
3,165 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 50 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-210-6-IL12-I MICRO LINEAR ACTUATOR |
3,858 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
