| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

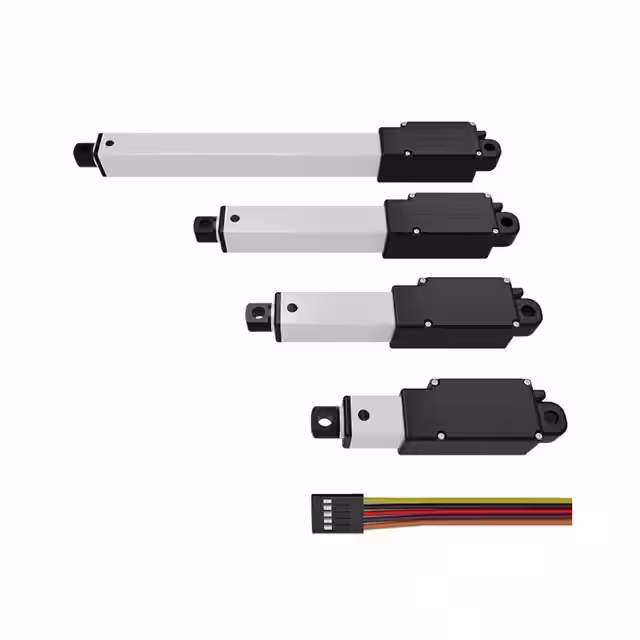

L12-50-210-6-IL12-I MICRO LINEAR ACTUATOR |
4,799 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-100-6-IL12-I MICRO LINEAR ACTUATOR |
3,419 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
L12-30-210-12-IL12-I MICRO LINEAR ACTUATOR |
1,698 |
|
规格书 |
L12 | Retail Package | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | Integrated Controller | 210 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-50-38-BS20 Micro Stepper Actuator |
1,233 |
|
规格书 |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.969" (50.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-100-38-BS20 Micro Stepper Actuator |
4,073 |
|
规格书 |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 3.937" (100.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-30-38-BS20 Micro Stepper Actuator |
3,666 |
|
规格书 |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.181" (30.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-15-38-BS20 Micro Stepper Actuator |
1,112 |
|
规格书 |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.591" (15.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|

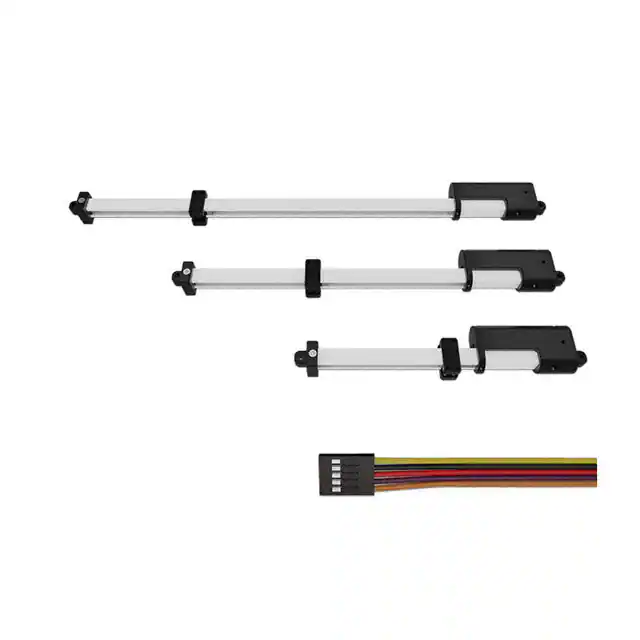

T16-100-22-12-PT16-P MICRO LINEAR ACTUATOR |
2,354 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 122.40lbf (500.0N) | 1.81 in/s (46.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | - | 22 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
T16-100-64-12-PT16-P MICRO LINEAR ACTUATOR |
4,354 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | - | 64 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
T16-200-256-12-PT16-P MICRO LINEAR ACTUATOR |
1,790 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 7.874" (200.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±0.80mm | - | - | 256 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
T16-300-22-12-PT16-P MICRO LINEAR ACTUATOR |
1,061 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 11.811" (300.00mm) | 11.24lbf (50.0N) | 122.40lbf (500.0N) | 1.81 in/s (46.0 mm/s) | 20% | 12VDC | Ball Screw | ±1.20mm | - | - | 22 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
T16-200-22-12-PT16-P MICRO LINEAR ACTUATOR |
2,033 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 7.874" (200.00mm) | 11.24lbf (50.0N) | 122.40lbf (500.0N) | 1.81 in/s (46.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.80mm | - | - | 22 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
|
T16-300-256-12-PT16-P MICRO LINEAR ACTUATOR |
2,108 |
|
规格书 |
T16 | Retail Package | Active | Linear Actuator | Brushed | 11.811" (300.00mm) | 67.44lbf (300.0N) | 122.40lbf (500.0N) | 0.19 in/s (4.8 mm/s) | 20% | 12VDC | Ball Screw | ±1.20mm | - | - | 256 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | - | - |
|
12L-35S-22MICRO LINEAR ACTUATOR LIMIT S/W |
2,954 |
|
- |
12L (Limit Switch) | Retail Package | Active | Linear Actuator | Brushed (Coreless) | 0.866" (22.00mm) | 7.87lbf (35.0N) | 15.74lbf (70.0N) | 1.10 in/s (28.0 mm/s) | 50% | 12VDC | Lead Screw | ±0.50mm | - | Limit Switches | 10 | - | Wire Leads | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12L-100S-22MICRO LINEAR ACTUATOR LIMIT S/W |
4,662 |
|
- |
12L (Limit Switch) | Retail Package | Active | Linear Actuator | Brushed (Coreless) | 0.866" (22.00mm) | 22.48lbf (100.0N) | 44.96lbf (200.0N) | 0.30 in/s (7.7 mm/s) | 50% | 12VDC | Lead Screw | ±0.50mm | - | Limit Switches | 50 | - | Wire Leads | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
6101TLinear Actuator, 1 in travel 110 |
118 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6104TLinear Actuator, 4 in travel 11 |
3,030 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

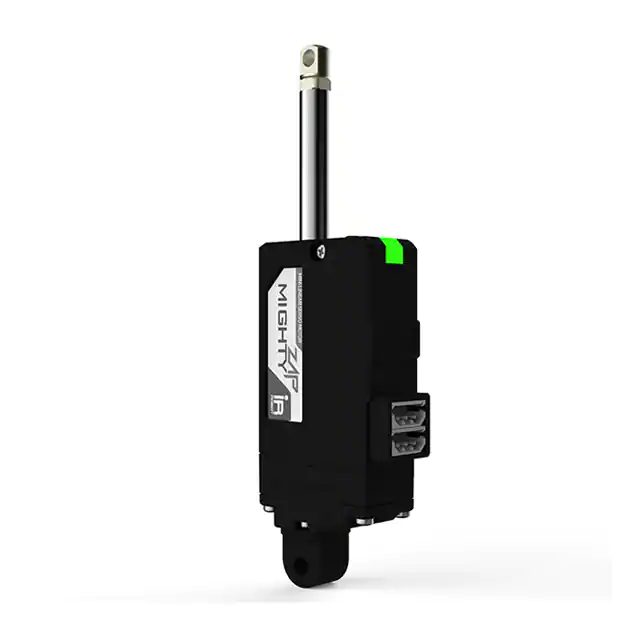

12LF-35F-27Micro/Mini Linear Servo Actuator |
4,655 |
|
规格书 |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.063" (27.00mm) | 15.74lbf (70.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-12PT-27Micro/Mini Linear Servo Actuator |
2,160 |
|
规格书 |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.063" (27.00mm) | 5.40lbf (24.0N) | - | 4.85 in/s (123.2 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-100PT-27Micro/Mini Linear Servo Actuator |
4,789 |
|
规格书 |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.063" (27.00mm) | 44.96lbf (200.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
