购物车电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPCS-BS-60-350-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,997 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 13.780" (350.00mm) | 84.30lbf (375.0N) | - | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGS-TB-KF-45-600-ST-M-H1-PLK-AATOOTHED BELT AXIS UNIT |
3,610 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 23.622" (600.00mm) | 16.86lbf (75.0N) | - | 3.90 ft/s (1.2 m/s) | 100% | 24VDC | Belt Driven | ±0.10mm | 6.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | - | - |
|
|
EPCS-BS-60-400-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
3,061 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 84.30lbf (375.0N) | - | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-60-400-5P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
3,477 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 202.33lbf (900.0N) | - | 3.54 in/s (90.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
ESBF-LS-32-400-2.5PELECTRIC CYLINDER |
3,200 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 134.89lbf (600.0N) | - | 4.92 in/s (125.0 mm/s) | 100% | - | Lead Screw | ±50µm | 2.50 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGC-TB-KF-80-1500TOOTHED BELT AXIS |
4,571 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 59.055" (1500.00mm) | 56.20lbf (250.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGS-TB-KF-60-500-ST-M-H1-PLK-AATOOTHED BELT AXIS UNIT |
4,256 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 19.685" (500.00mm) | 14.61lbf (65.0N) | - | 4.27 f/s (1.3 m/s) | 100% | 24VDC | Belt Driven | ±0.10mm | 6.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | - | - |
|
|
ELGS-BS-KF-45-100-10P-ST-M-H1-PLK-AASPINDLE AXIS UNIT |
2,566 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 3.937" (100.00mm) | 22.48lbf (100.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGC-BS-KF-80-500-16PSPINDLE AXIS |
3,063 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 19.685" (500.00mm) | 78.68lbf (350.0N) | - | 3.30 ft/s (1.0 m/s) | 100% | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
ESBF-LS-40-200-3PELECTRIC CYLINDER |
2,618 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 7.874" (200.00mm) | 224.81lbf (1000.0N) | - | 5.91 in/s (150.0 mm/s) | 100% | - | Lead Screw | ±50µm | 2.50 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
LA15-16-020AUNHOUSED LINEAR CYLINDRICAL VCA |
2,900 |
|
规格书 |
- | Box | Active | Linear Actuator | Voice Coil | 0.400" (10.16mm) | 7.64lbf (34.0N) | 2.61lbf (11.60N) | - | - | 26.2V | - | - | - | - | - | - | Wire Leads | - | - | - |
|

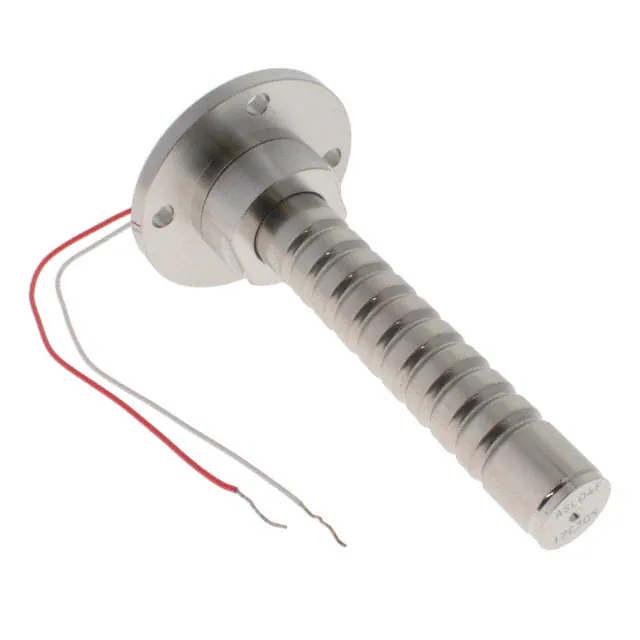

ASL510C801FD0LFASL, METAL SEALD, HIGH TEMPERATU |
1,645 |
|
规格书 |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0023" (58.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
|
|
ELGS-TB-KF-45-800-ST-M-H1-PLK-AATOOTHED BELT AXIS UNIT |
2,529 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 31.496" (800.00mm) | 16.86lbf (75.0N) | - | 3.90 ft/s (1.2 m/s) | 100% | 24VDC | Belt Driven | ±0.10mm | 6.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | - | - |
|
|
ELGS-TB-KF-60-600-ST-M-H1-PLK-AATOOTHED BELT AXIS UNIT |
2,709 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 23.622" (600.00mm) | 14.61lbf (65.0N) | - | 4.27 f/s (1.3 m/s) | 100% | 24VDC | Belt Driven | ±0.10mm | 6.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | - | - |
|

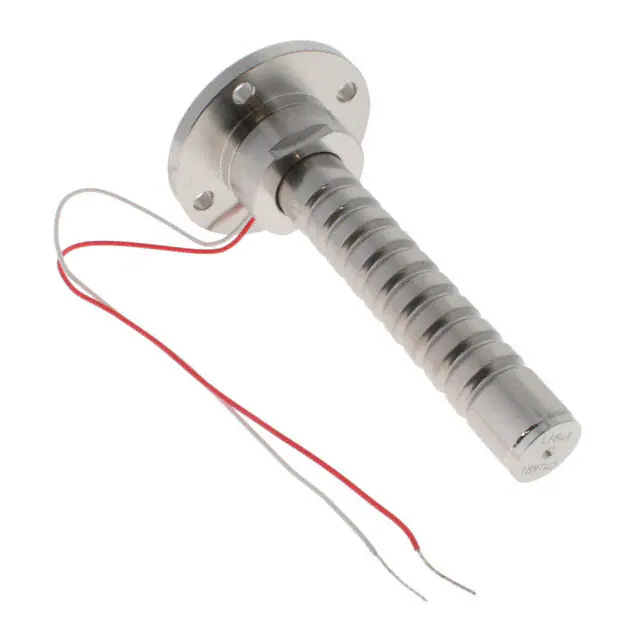

AHB700C801FD0LFAHB, METAL SEALD, 70UM, 800N, FL |
4,958 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0028" (70.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
ELGC-TB-KF-60-1800TOOTHED BELT AXIS |
3,663 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 70.866" (1800.00mm) | 26.98lbf (120.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
LA28-43-000AUNHOUSED LINEAR CYLINDRICAL VCA |
2,442 |
|
规格书 |
- | Box | Active | Linear Actuator | Voice Coil | 0.980" (24.89mm) | 60.00lbf (266.00N) | 17.00lbf (75.60N) | - | - | 31.6V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
EPCS-BS-60-500-5P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
4,222 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 19.685" (500.00mm) | 202.33lbf (900.0N) | - | 3.54 in/s (90.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-60-500-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
4,783 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 19.685" (500.00mm) | 84.30lbf (375.0N) | - | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGS-BS-KF-45-200-10P-ST-M-H1-PLK-AASPINDLE AXIS UNIT |
2,252 |
|
规格书 |
ELGS | Bulk | Active | Linear Axis | Stepper | 7.874" (200.00mm) | 22.48lbf (100.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
