购物车电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELGC-BS-KF-80-100-16PSPINDLE AXIS |
4,825 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 3.937" (100.00mm) | 78.68lbf (350.0N) | - | 3.30 ft/s (1.0 m/s) | 100% | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
LA15-26-000AUNHOUSED LINEAR CYLINDRICAL VCA |
3,106 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 1.000" (25.40mm) | 10.00lbf (44.40N) | 5.50lbf (24.40N) | - | - | 46V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
EPCS-BS-45-250-10P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
4,055 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 9.843" (250.00mm) | 56.20lbf (250.0N) | - | 9.06 in/s (230.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-45-250-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,960 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 9.843" (250.00mm) | 101.16lbf (450.0N) | - | 2.91 in/s (74.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGC-BS-KF-32-400-8PSPINDLE AXIS |
4,633 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 8.99lbf (40.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
ASL510C801WD1-A0LFASL, METAL SEALD, HIGH TEMPERATU |
4,288 |
|
规格书 |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0023" (58.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
|
|
ELGR-TB-55-1000-0HTOOTHED BELT AXIS |
2,540 |
|
规格书 |
ELGR | Bulk | Active | Linear Actuator | Stepper | 39.370" (1000.00mm) | 78.68lbf (350.0N) | - | 9.80 ft/s (3.0 m/s) | 100% | - | Belt Driven | 100µm | 50.00 m/s² | - | - | - | Connector | -10°C ~ 50°C | IP20 | - |
|
|
ELGC-BS-KF-45-600-10PSPINDLE AXIS |
2,835 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 23.622" (600.00mm) | 22.48lbf (100.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
ESBF-LS-32-100-2.5PELECTRIC CYLINDER |
1,556 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 3.937" (100.00mm) | 134.89lbf (600.0N) | - | 4.92 in/s (125.0 mm/s) | 100% | - | Lead Screw | ±50µm | 2.50 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|

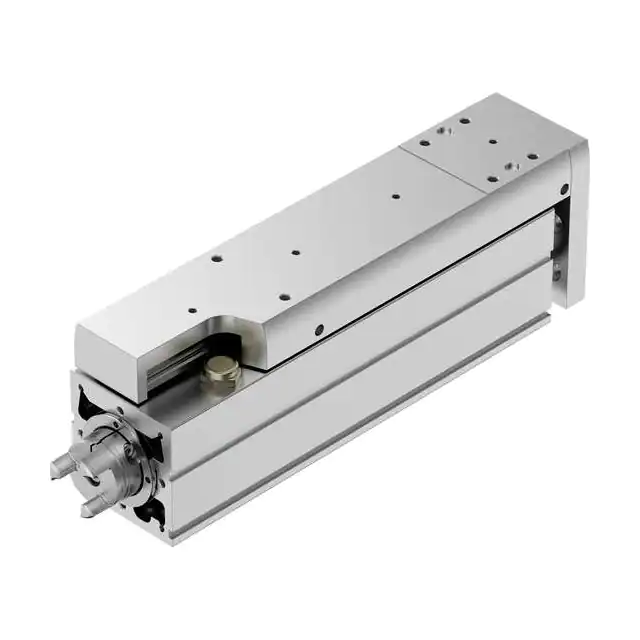

EGSC-BS-KF-60-200-12PMINI SLIDE |
1,704 |
|
规格书 |
Mini slide | Bulk | Active | Linear Actuator (Without Motor) | - | - | 56.20lbf (250.0N) | - | - | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
|
LA05-05-019AUNHOUSED LINEAR CYLINDRICAL VCA |
2,278 |
|
规格书 |
- | Box | Active | Linear Actuator | Voice Coil | 0.0200" (508.00µm) | 116.12ozin (820.0mNm) | 67.97ozin (480.0mNm) | - | - | 3.83V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
EPCS-BS-45-300-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,721 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 101.16lbf (450.0N) | - | 2.91 in/s (74.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-45-300-10P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
4,770 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 56.20lbf (250.0N) | - | 9.06 in/s (230.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
LA16-19-001AUNHOUSED LINEAR CYLINDRICAL VCA |
1,686 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.500" (12.70mm) | 5.00lbf (22.20N) | 2.10lbf (9.30N) | - | - | 26.1V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
ELGC-TB-KF-80-1000TOOTHED BELT AXIS |
1,124 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 39.370" (1000.00mm) | 56.20lbf (250.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCC-BS-60-500-5P-AELECTRIC CYLINDER |
3,563 |
|
规格书 |
EPCC | Bulk | Active | Linear Actuator | Stepper | 19.685" (500.00mm) | 224.81lbf (1000.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ELGC-TB-KF-60-1200TOOTHED BELT AXIS |
1,443 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 47.244" (1200.00mm) | 26.98lbf (120.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
RA68-19-000AROTARY VCA |
3,525 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | - | 1000.00ozin (7.06Nm) | 159.90ozin (1.13Nm) | - | - | 44V | - | - | - | - | - | - | Pin Header | - | - | - |
|
|
ELGC-BS-KF-32-500-8PSPINDLE AXIS |
4,298 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 19.685" (500.00mm) | 8.99lbf (40.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
ELGC-TB-KF-45-1500TOOTHED BELT AXIS |
1,915 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 59.055" (1500.00mm) | 16.86lbf (75.0N) | - | 3.90 ft/s (1.2 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
