| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHB550C302WD1-A0LFAHB, METAL SEALD, 52UM, 3000N, W |
1,319 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0020" (52.00µm) | 674.43lbf (3000.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|

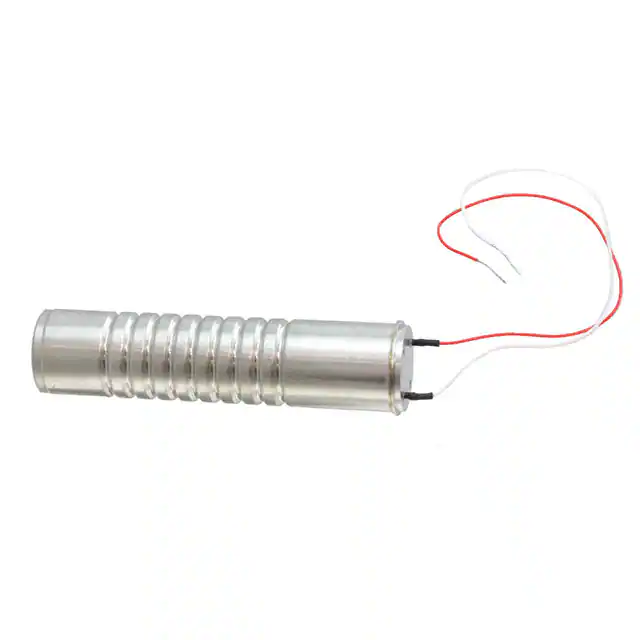

AHB101C362WD1-A0LFAHB, METAL SEALD, 95UM, 3600N, W |
3,064 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0037" (95.00µm) | 809.31lbf (3600.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
LAS04-19-000AHOUSED LINEAR CYLINDRICAL VCA W/ |
2,364 |
|
规格书 |
- | Box | Active | Linear Actuator (Without Motor) | - | 0.079" (2.00mm) | - | - | - | - | - | - | - | 525.00 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads | - | - | - |
|
|
LINEAR-MOTOR-55MMLINEAR ACTUATOR 55MM STROKE 6VDC |
1,405 |
|
- |
- | Bulk | Active | Linear Actuator | - | 2.165" (55.00mm) | - | - | - | - | 6VDC | Ball Screw | - | - | - | - | - | Connector | - | - | - |
|
FIT0257SOLENOID ROTARY 4.5-6V |
3,473 |
|
规格书 |
NanoMuscle | Bulk | Obsolete | Rotary Actuator | Shape Memory Alloy (SMA) | ±60° | 0.17ozin (1.2mN) | - | - | - | 4.5 ~ 6VDC | - | - | - | - | - | - | Solder | - | - | - |
|
FIT0256SOLENOID PUSH 4V |
4,152 |
|
规格书 |
NanoMuscle | Bulk | Obsolete | Linear Actuator | Shape Memory Alloy (SMA) | 0.160" (4.07mm) | 2.00ozf (566.0mN) | - | - | - | 4VDC | - | - | - | - | - | - | Solder | - | - | - |
|
|
FIT0258SOLENOID ROTARY 4.5-6V |
1,340 |
|
规格书 |
NanoMuscle | Bulk | Obsolete | Rotary Actuator | Shape Memory Alloy (SMA) | ±60° | 0.17ozin (1.2mN) | - | - | - | 4.5 ~ 6VDC | - | - | - | - | - | - | Solder | - | - | - |
|
|
LINEAR-MOTOR-60MMLINEAR ACTUATOR 60MM STROKE |
1,246 |
|
- |
- | Bulk | Active | Linear Actuator | - | 2.362" (60.00mm) | - | - | - | - | 5 ~ 12VDC | Ball Screw | - | - | - | - | - | Connector | - | - | - |
|
FIT0259SOLENOID PUSH 7V |
1,210 |
|
规格书 |
Dash4™ | Bulk | Obsolete | Linear Actuator | Shape Memory Alloy (SMA) | 0.228" (5.80mm) | 1.75lbf (7.8N) | - | - | - | 7VDC | - | - | - | - | - | - | Pin Header | -29°C ~ 60°C | - | - |
|
FIT0260SOLENOID PUSH 5-30V |
1,313 |
|
规格书 |
MigaOne® | Bulk | Obsolete | Linear Actuator | Shape Memory Alloy (SMA) | 0.354" (9.00mm) | 2.00lbf (8.9N) | - | - | - | 5 ~ 30VDC | - | - | - | - | - | - | Pin Header | -29°C ~ 60°C | - | - |
|
|
FIT0284SOLENOID PUSH 5-30V |
1,937 |
|
规格书 |
MigaOne® | Bulk | Obsolete | Linear Actuator | Shape Memory Alloy (SMA) | 0.354" (9.00mm) | 2.50lbf (11.1N) | - | - | - | 5 ~ 30VDC | - | - | - | - | - | - | Pin Header | -29°C ~ 60°C | - | - |
|
|
FIT0285SOLENOID PUSH 5-30V |
4,745 |
|
规格书 |
MigaOne® | Bulk | Obsolete | Linear Actuator | Shape Memory Alloy (SMA) | 0.354" (9.00mm) | 4.50lbf (20.0N) | - | - | - | 5 ~ 30VDC | - | - | - | - | - | - | Pin Header | -29°C ~ 60°C | - | - |
|
80910501MOTOR DC LINEAR .033 MM-STEP POS |
4,915 |
|
- |
80910 | Bulk | Active | Linear Actuator | Stepper, Bipolar | - | - | - | - | - | 5.6VDC | - | - | - | - | - | - | Wire Leads | -5°C ~ 75°C | - | - |
|
|
LINEAR-MOTOR-327MMLINEAR ACTUATOR 327MM STROKE |
1,339 |
|
- |
- | Bulk | Active | Linear Actuator | Stepper, Bipolar | 12.874" (327.00mm) | 56.64ozin (400.0mNm) | - | - | - | 12 ~ 24VDC | Ball Screw | - | - | - | - | - | Connector | - | - | - |
|
|
LINEAR-MOTOR-T8X2-300MMLINEAR ACTUATOR 300MM STROKE |
2,951 |
|
- |
- | Bulk | Active | Linear Actuator | Stepper, Bipolar | 11.811" (300.00mm) | 42.48ozin (300.0mNm) | - | - | - | 12 ~ 24VDC | Ball Screw | - | - | - | - | - | Connector | - | - | - |
|
LA08-10-000AUNHOUSED LINEAR CYLINDRICAL VCA |
1,737 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.160" (4.07mm) | 1.50lbf (6.67N) | 1.96lbf (0.44N) | - | - | 7.8V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
ELFC-KF-45-100GUIDE AXIS |
2,833 |
|
规格书 |
ELFC | Bulk | Active | Linear Actuator (Without Motor) | - | 3.937" (100.00mm) | - | - | 4.90 ft/s (1.5 m/s) | 100% | - | Ball Screw | - | 250.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | - | - |
|
LAH04-10-000AHOUSED LINEAR CYLINDRICAL VCA |
3,955 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.157" (4.00mm) | 0.42lbf (1.89N) | 0.25lbf (1.11N) | - | - | 5.1V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
647-99-037ACTUATOR |
2,276 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ELFC-KF-45-200GUIDE AXIS |
2,514 |
|
规格书 |
ELFC | Bulk | Active | Linear Actuator (Without Motor) | - | 7.874" (200.00mm) | - | - | 4.90 ft/s (1.5 m/s) | 100% | - | Ball Screw | - | 250.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | - | - |
