购物车电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELGC-BS-KF-45-500-10PSPINDLE AXIS |
4,648 |
|
规格书 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 19.685" (500.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
EPCC-BS-60-400-12P-AELECTRO-CYLINDER |
2,869 |
|
规格书 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 15.748" (400.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-60-500-12P-AELECTRO-CYLINDER |
3,399 |
|
规格书 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 19.685" (500.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
AHB700C801ND0LFAHB, METAL SEALD, 70UM, 800N, FE |
3,391 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0028" (70.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
EPCS-BS-60-100-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,757 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Stepper | 3.937" (100.00mm) | 123.46lbf (549.2N) | 224.81lbf (1000.0N) | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|

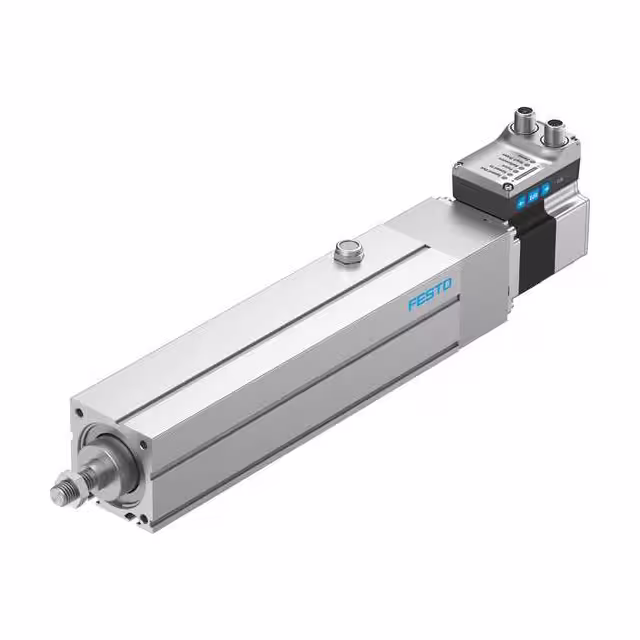

EPCS-BS-60-150-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,614 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Stepper | 5.906" (150.00mm) | 123.46lbf (549.2N) | 224.81lbf (1000.0N) | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-60-500-12PSPINDLE AXIS |
1,799 |
|
规格书 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 19.685" (500.00mm) | - | - | 31.50 in/s (800.0 mm/s) | - | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
EPCS-BS-60-250-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
3,152 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Stepper | 9.843" (250.00mm) | 123.46lbf (549.2N) | 224.81lbf (1000.0N) | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|

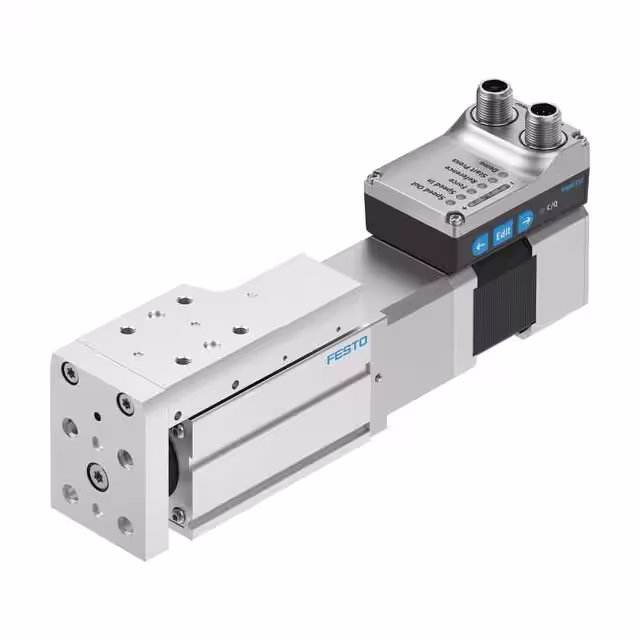

EGSS-BS-KF-45-25-10P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
1,365 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 0.984" (25.00mm) | 26.97lbf (120.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|

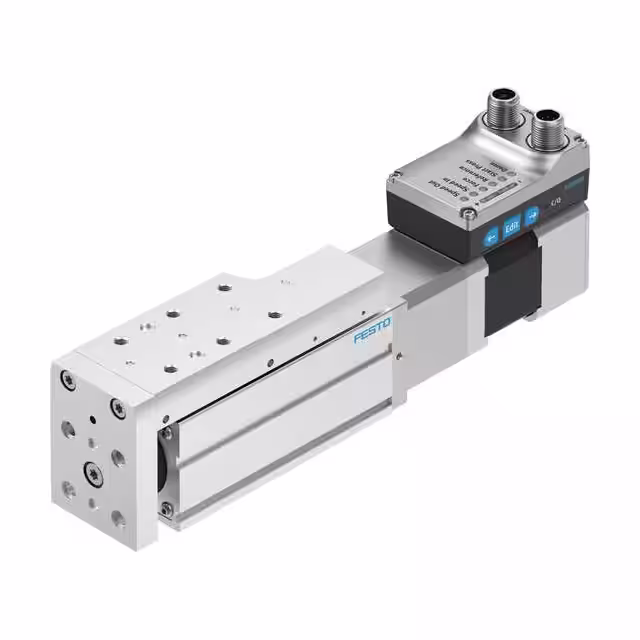

EGSS-BS-KF-45-50-10P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
4,371 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 1.969" (50.00mm) | 26.97lbf (120.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|

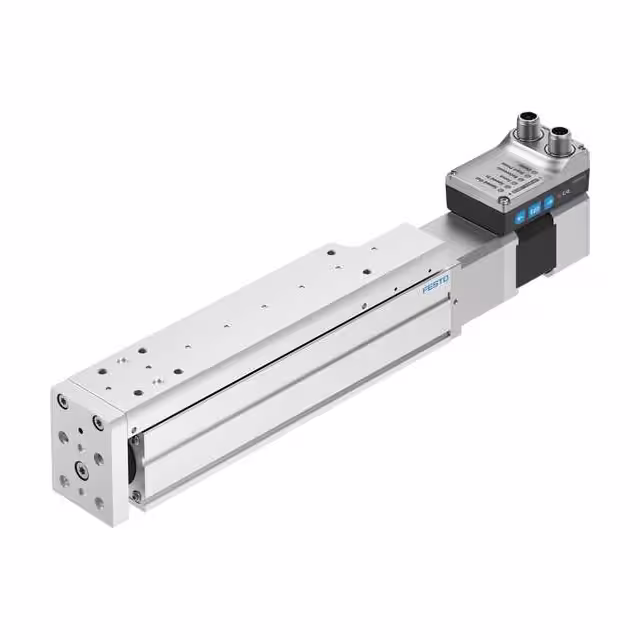

EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
4,757 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 5.906" (150.00mm) | 26.97lbf (120.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-60-50-12P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
1,675 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 2.953" (75.00mm) | 56.20lbf (250.0N) | - | 9.45 in/s (240.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
1,105 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 2.953" (75.00mm) | 56.20lbf (250.0N) | - | 9.45 in/s (240.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|

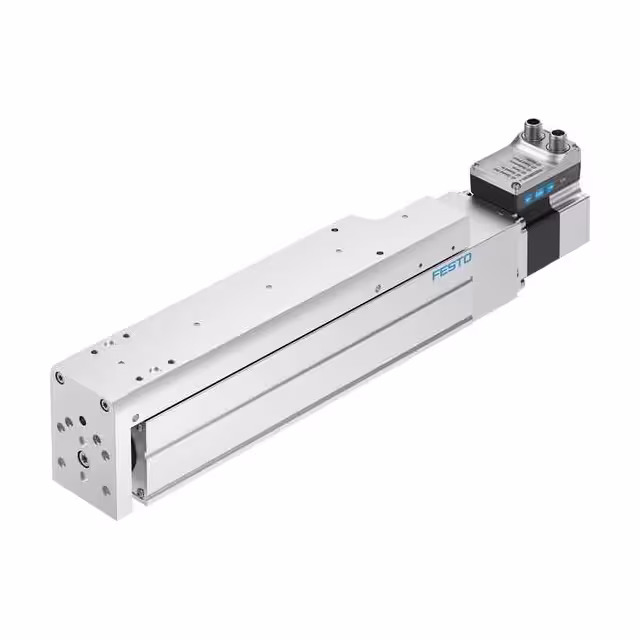

EGSS-BS-KF-60-200-12P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
3,499 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 7.874" (200.00mm) | 56.20lbf (250.0N) | - | 9.45 in/s (240.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
AL0505D08KFPIEZO ACTUATOR AL RESIN 800N |
1,003 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL0505D18KFPIEZO ACTUATOR AL RESIN 800N |
2,838 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AL0505D16KFPIEZO ACTUATOR AL RESIN 800N |
2,184 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASB170C801FD0LFSOLENOID PIEZO 17UM 150V |
1,182 |
|
规格书 |
ASB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0007" (17.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
LAS13-18-000A-P01-3EHOUSED LINEAR CYLINDRICAL VCA W/ |
2,411 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.250" (6.35mm) | 3.50lbf (15.57N) | 1.14lbf (5.07N) | - | - | 27.2V | - | - | - | Integrated Sensor | - | - | Wire Leads | - | - | - |
|

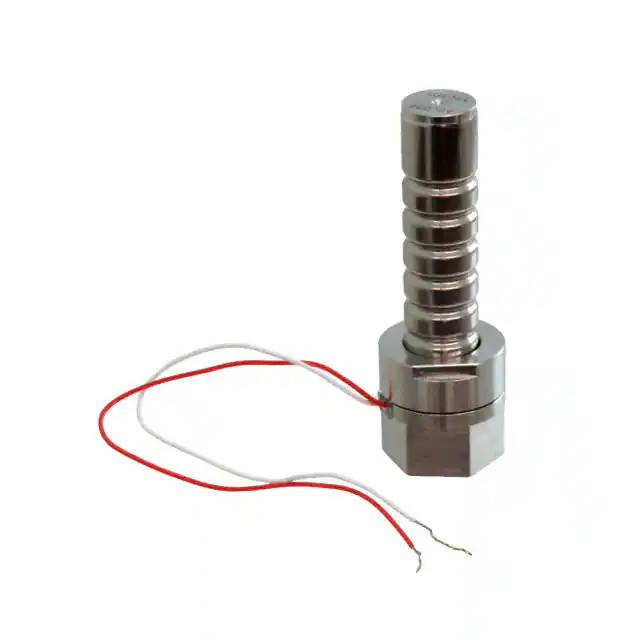

ASL340C801FD0LFASL, METAL SEALD, HIGH TEMPERATU |
3,510 |
|
规格书 |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0015" (39.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
