购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

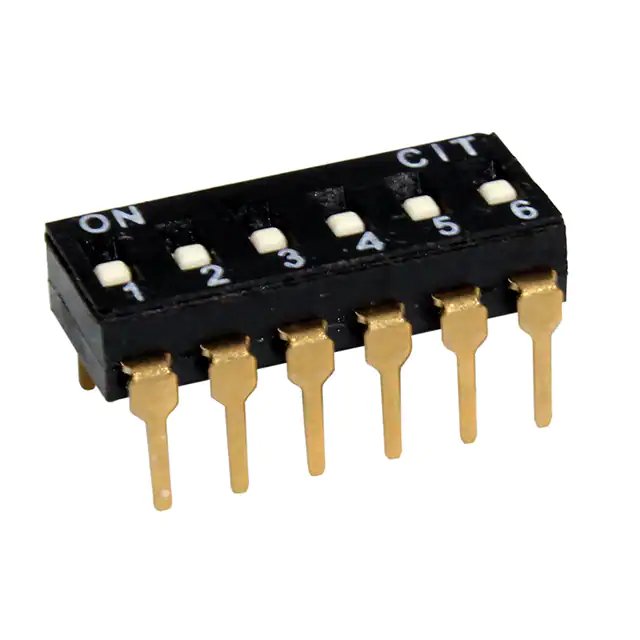

KT06RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
399 |
|
规格书 |
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

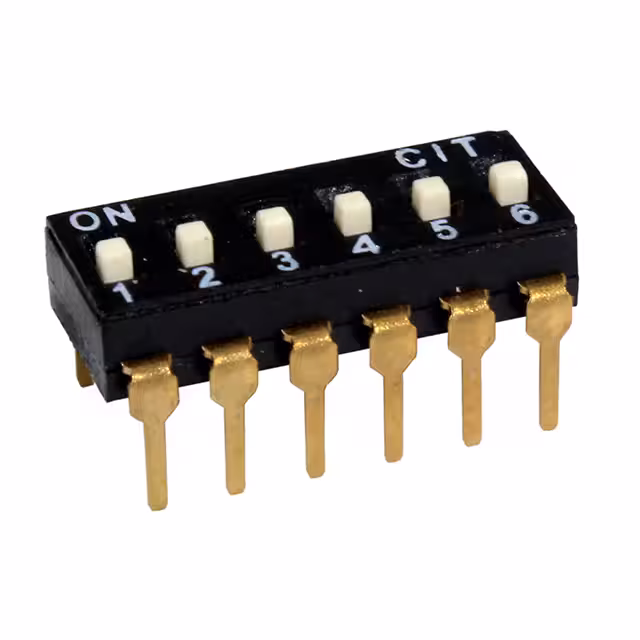

KT06EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
141 |
|
规格书 |
KT | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP08RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
405 |
|
规格书 |
KP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

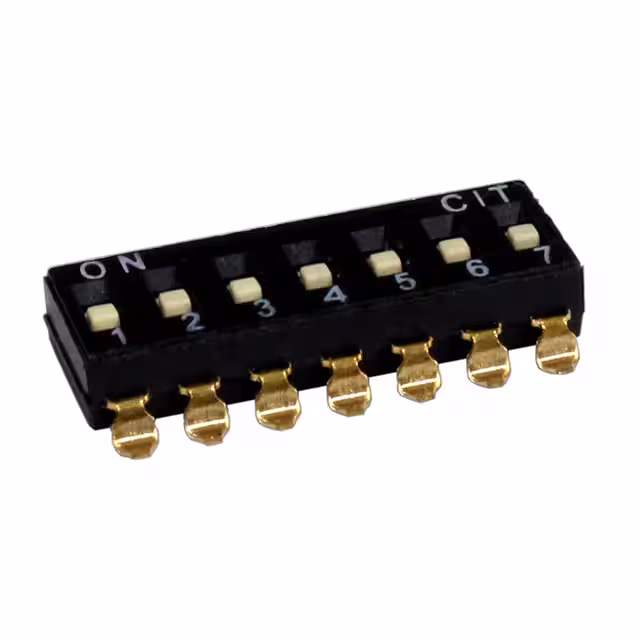

KJ07RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
377 |
|
规格书 |
KJ | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

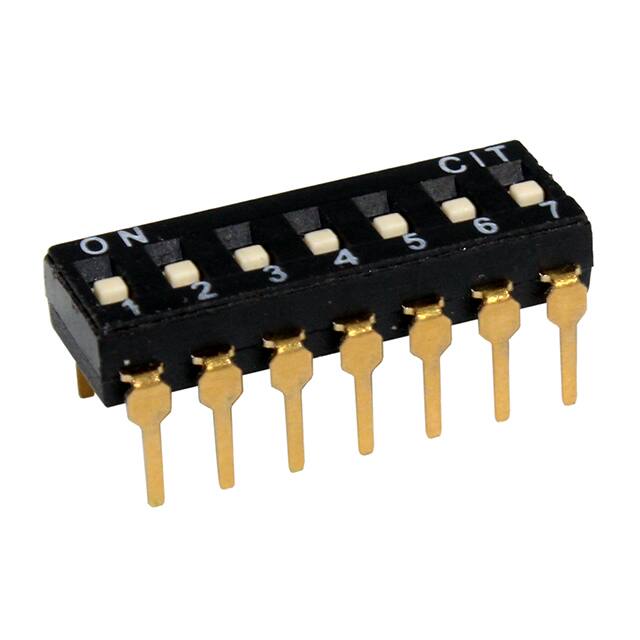

KT07RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
391 |
|
规格书 |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RD07A10RTTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
3,363 |
|
规格书 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA8CTTSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
1,808 |
|
规格书 |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA10CVATSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
3,941 |
|
规格书 |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG03ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
815 |
|
规格书 |
KG | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG05ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
726 |
|
规格书 |
KG | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
