购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD10RA8CGTSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
3,959 |
|
规格书 |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA16RVATSWITCH ROTARY DIP HEX 0.15A 50V CIT Relay and Switch |
4,264 |
|
规格书 |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR03RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
560 |
|
规格书 |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ02RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
548 |
|
规格书 |
KJ | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

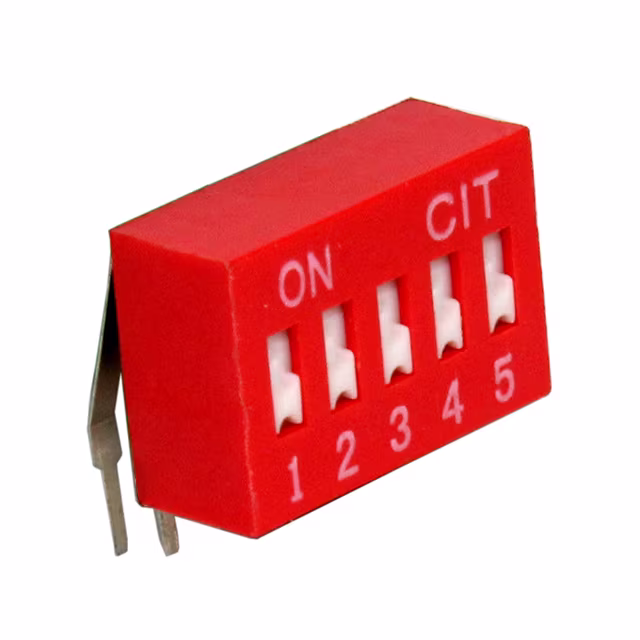

KR05RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
455 |
|
规格书 |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP06RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
476 |
|
规格书 |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR06ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
248 |
|
规格书 |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

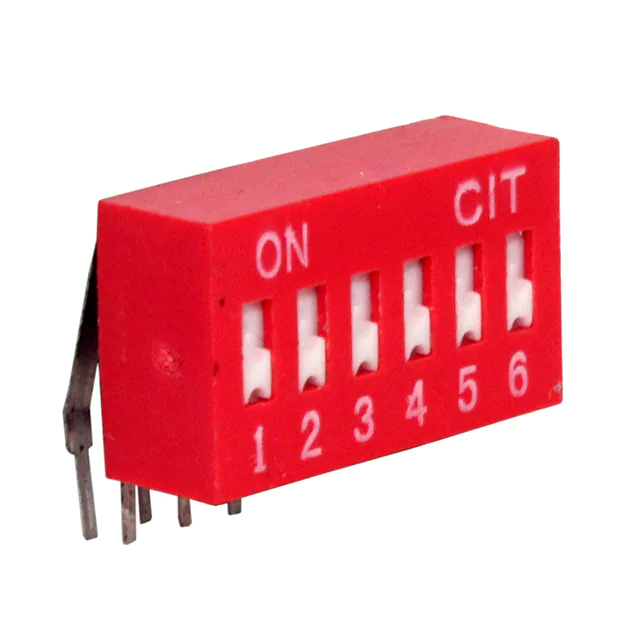

KR06RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
228 |
|
规格书 |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

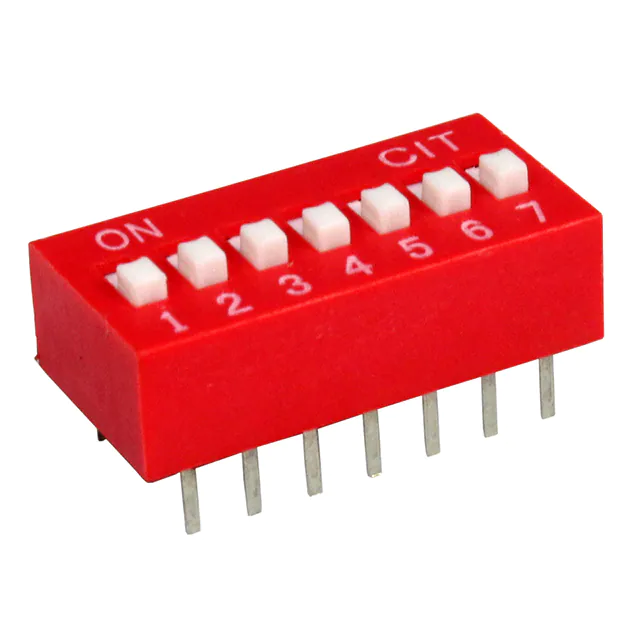

KG07ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
523 |
|
规格书 |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

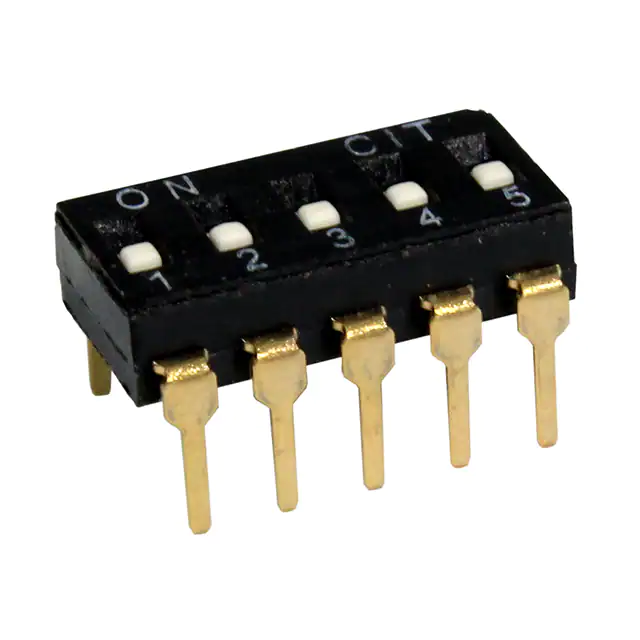

KT05RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
419 |
|
规格书 |
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
