购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HGBW05PTSWITCH SLIDE DIP SPST 0.01A 30V |
3,795 |
|
- |
90HGB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90HGBW06PTSWITCH SLIDE DIP SPST 0.01A 30V |
1,500 |
|
- |
90HGB | Tube | Obsolete | SPST | 6 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90HGBW06TSWITCH SLIDE DIP SPST 0.01A 30V |
3,113 |
|
- |
90HGB | Tube | Obsolete | SPST | 6 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90HGBW08PTSWITCH SLIDE DIP SPST 0.01A 30V |
2,068 |
|
- |
90HGB | Tube | Obsolete | SPST | 8 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90HGBW10PTSWITCH SLIDE DIP SPST 0.01A 30V |
4,001 |
|
- |
90HGB | Tube | Obsolete | SPST | 10 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SRK-10SWITCH ROTARY DIP BCD 0.1A 5V |
4,799 |
|
规格书 |
SRK | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Glass Fabric Epoxy Resin | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -10°C ~ 60°C |
|
RW-108-NS RTSWITCH ROTARY DIP SP8T 0.1A 16V |
2,996 |
|
规格书 |
RW, COMAX | Tape & Reel (TR) | Discontinued at Digi-Key | SP8T | 8 | 100mA | 16VDC | Rotary for Tool | Raised | - | - | 0.165" (4.20mm) | Surface Mount | Gull Wing | 0.083" (2.10mm) | No | - | -20°C ~ 70°C |
|
1393546-1SWITCH DIP SPST TH |
3,582 |
|
规格书 |
DIP-FIX | Bulk | Obsolete | SPST | 1 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
1-1825286-0SW ROCKER DIP SPST 0.025A 24V |
3,921 |
|
规格书 |
GDR | Tube | Active | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.309" (7.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1825013-4SW ROTARY DIP BCD COMP 0.4VA 20V |
3,861 |
|
规格书 |
MRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.295" (7.50mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1977103-3SWITCH SLIDE DIP SPST 0.025A 24V |
2,542 |
|
规格书 |
GDHL | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
1977105-3SWITCH SLIDE DIP SPST 0.01A 5V |
4,128 |
|
规格书 |
STR | Tube | Active | SPST | 6 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

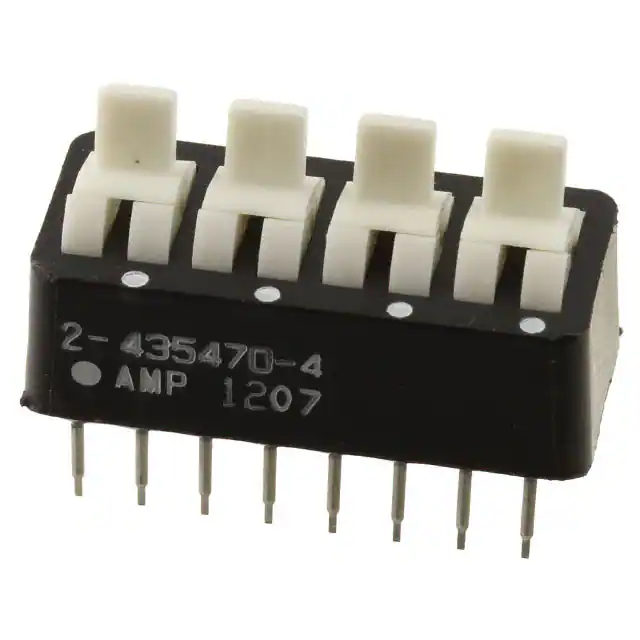

2-435470-4SW TOGGLE DIP SPDT 0.025A 24V |
4,015 |
|
规格书 |
7000 | Tube | Obsolete | SPDT | 4 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

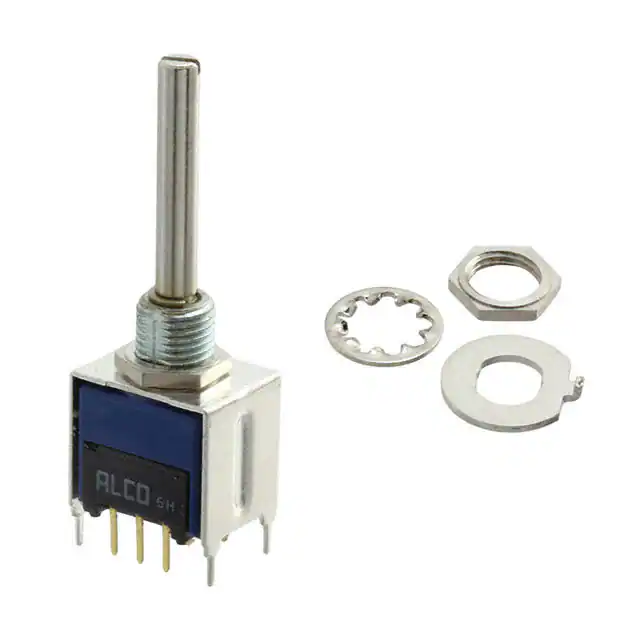

5-1825033-6SW ROTARY DIP HEX COMP 0.4VA 20V |
2,689 |
|
规格书 |
DR | Bulk | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.476" (37.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
1825059-4SWITCH SLIDE DIP SPST 0.025A 24V |
4,402 |
|
规格书 |
ADF | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

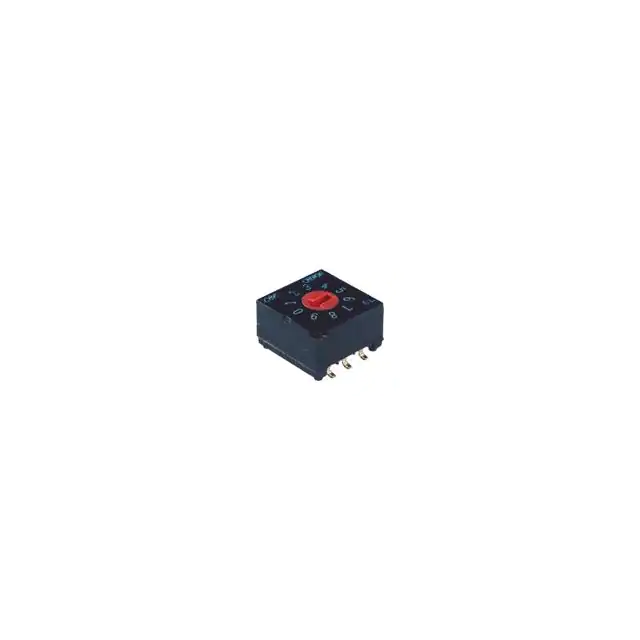

CRD10CL1CBSW ROTARY DIP BCD COMP 0.4VA 20V |
4,942 |
|
规格书 |
CRD | Tray | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
CRD10RL1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
2,505 |
|
规格书 |
CRD | Tray | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

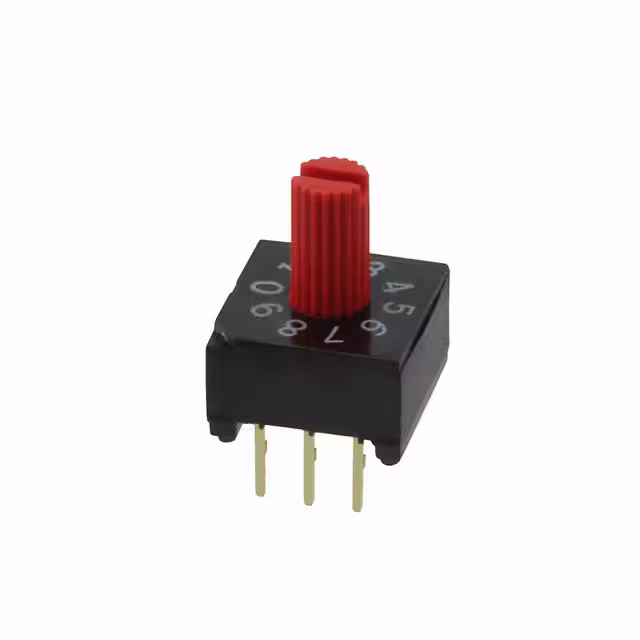

CRD10RL1CBSWITCH ROTARY DIP BCD 0.4VA 20V |
4,700 |
|
规格书 |
CRD | Tray | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
CRD10RW1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
2,987 |
|
规格书 |
CRD | Tray | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
RTE0302G04SWITCH ROTARY DIP SP3T 0.1A 30V |
3,835 |
|
规格书 |
RTE | Bulk | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.322" (8.18mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
