购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

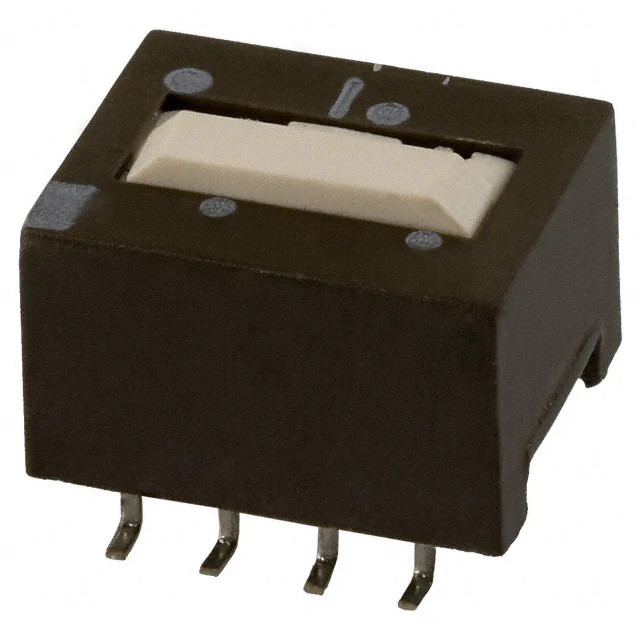

204-221STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
3,701 |
|
规格书 |
204 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

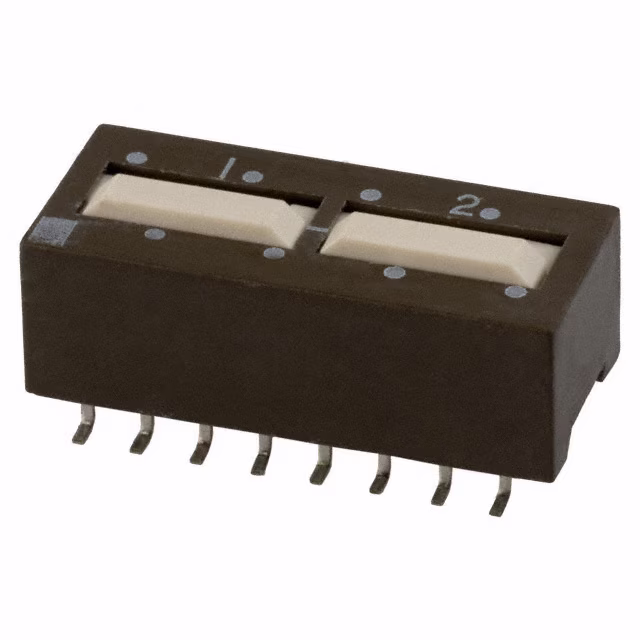

204-222STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
3,964 |
|
规格书 |
204 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-223STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
3,716 |
|
规格书 |
204 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

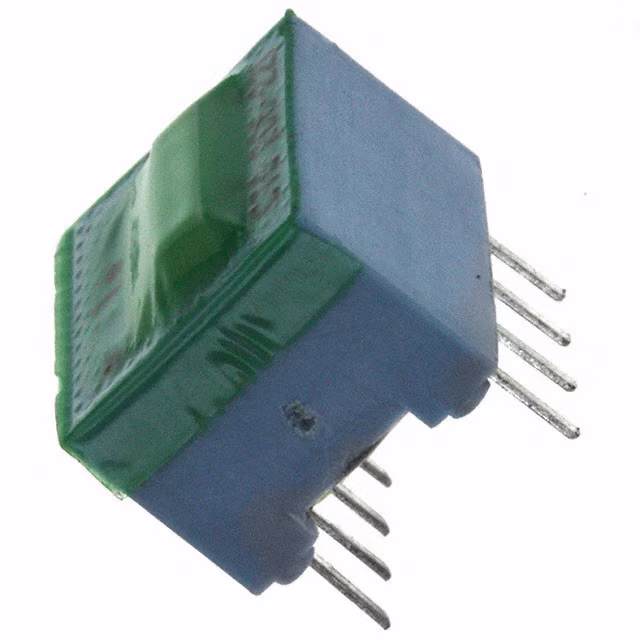

206-221STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
3,239 |
|
规格书 |
206 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-222STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
3,744 |
|
规格书 |
206 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
220ADA10SWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
2,142 |
|
规格书 |
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
220ADA16SWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
3,348 |
|
规格书 |
220 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
220ADA04SWITCH ROTARY DIP SP4T 0.1A 50V CTS Electrocomponents |
1,316 |
|
规格书 |
220 | Tube | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
206-4STPSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,680 |
|
规格书 |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-4LPSTPSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,442 |
|
规格书 |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
