购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-126RASWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,364 |
|
规格书 |
206RA | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-216RASTSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,764 |
|
规格书 |
206RA | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-126RASSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,973 |
|
规格书 |
206RA | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-126RASTSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
3,873 |
|
规格书 |
206RA | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
204-126STRSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
3,590 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
204-313STSWITCH SLIDE DIP 3PST 0.05A 24V CTS Electrocomponents |
2,077 |
|
规格书 |
204 | Tube | Active | 3PST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

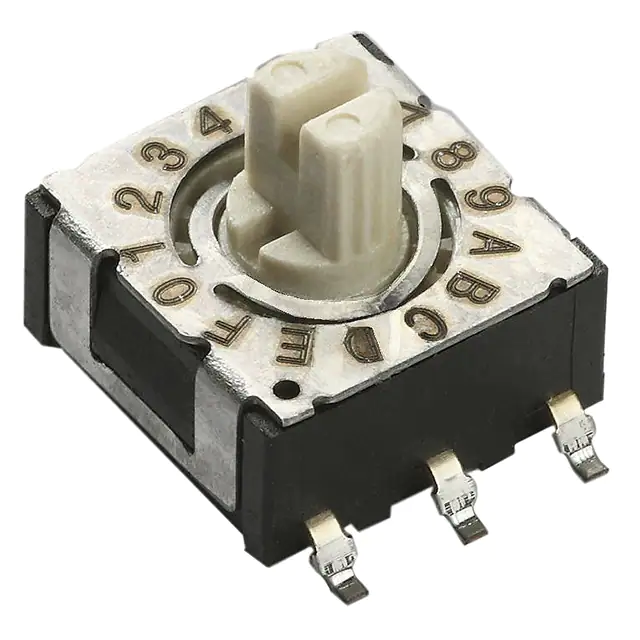

220AMB16RSWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
2,873 |
|
规格书 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

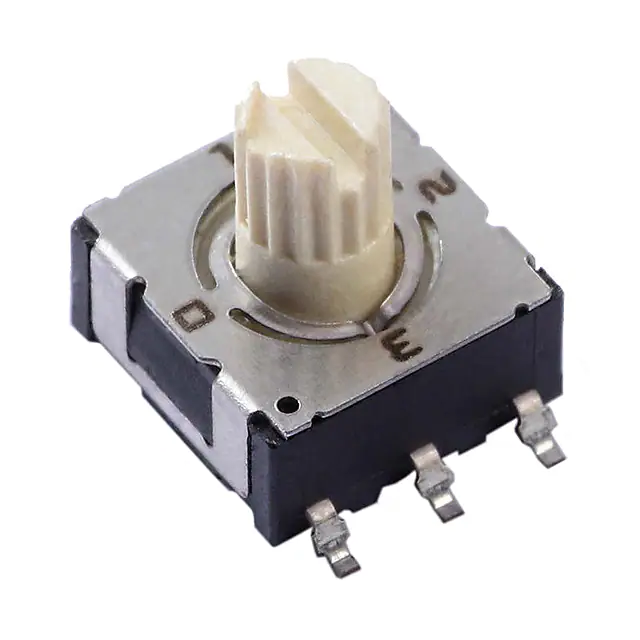

220AMC04RSWITCH ROTARY DIP SP4T 0.1A 50V CTS Electrocomponents |
2,994 |
|
规格书 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

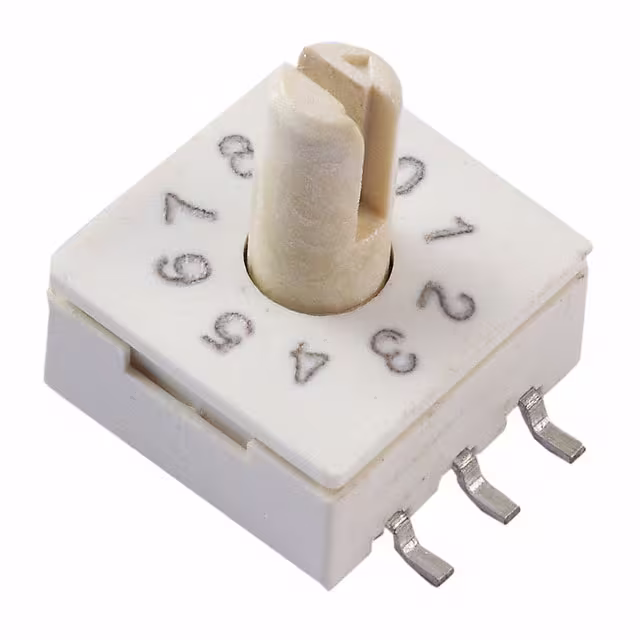

221AMC10RSWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
1,843 |
|
规格书 |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
206-223STSWITCH SLIDE DIP DPDT 0.05A 24V CTS Electrocomponents |
2,589 |
|
规格书 |
206 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
