购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-0104-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,190 |
|
规格书 |
A6S-H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-0102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,547 |
|
规格书 |
A6S-H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

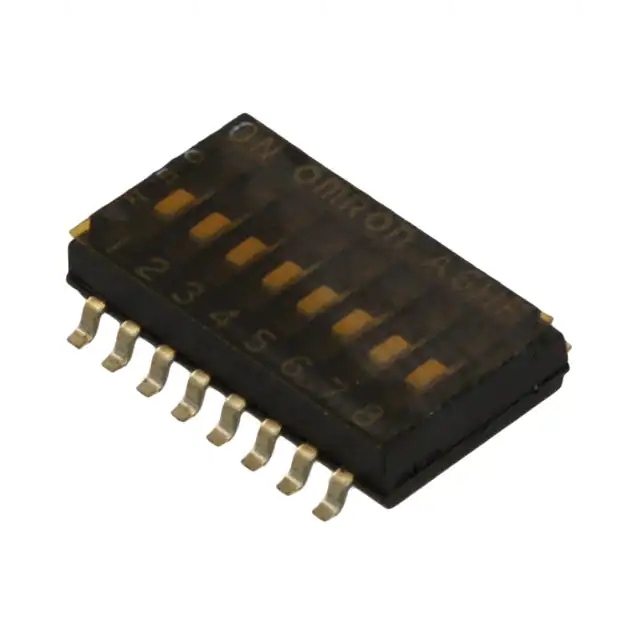

A6HF-8102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,015 |
|
规格书 |
A6HF | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6RS-162RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
4,338 |
|
规格书 |
A6RS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
A6DR-8100SWITCH PIANO DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
1,813 |
|
规格书 |
A6DR | Tray | Active | SPST | 8 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

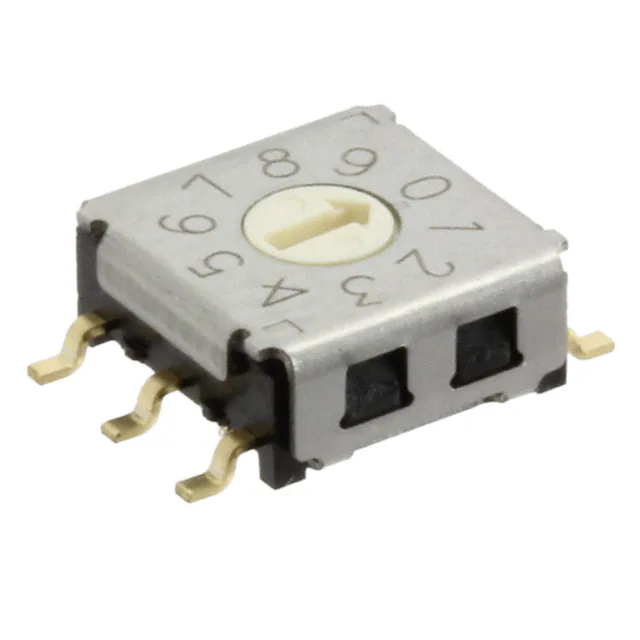

A6KS-102RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
3,253 |
|
规格书 |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6DR-6100SWITCH PIANO DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
2,086 |
|
规格书 |
A6DR | Tube | Active | SPST | 6 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

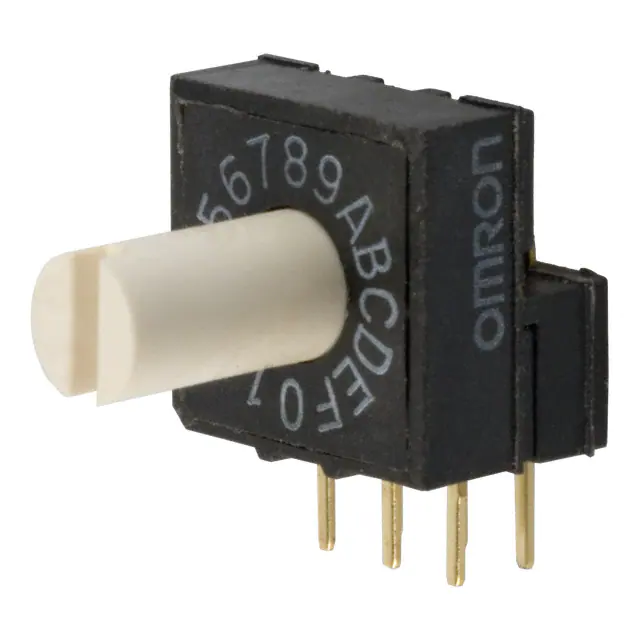

A6RV-162RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
2,424 |
|
规格书 |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

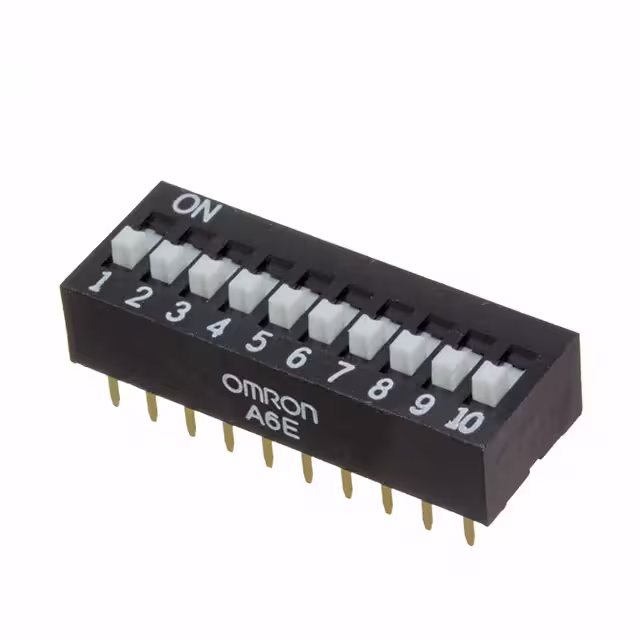

A6E-0104-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,002 |
|
规格书 |
A6E-N | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

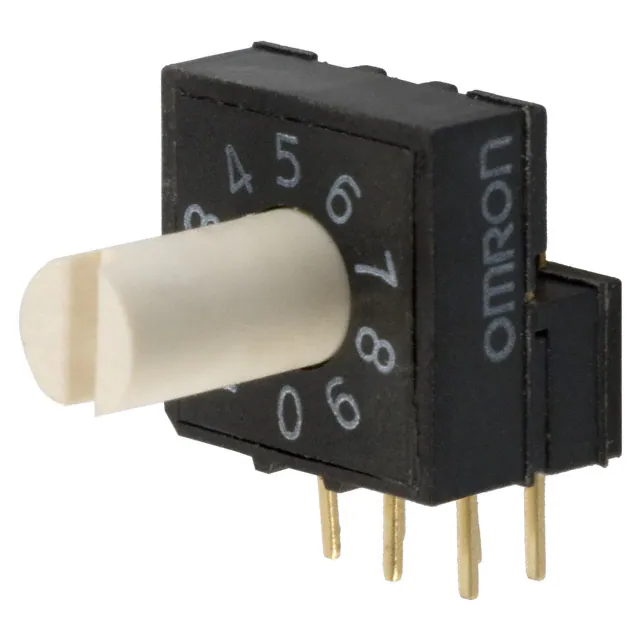

A6RV-102RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
4,831 |
|
规格书 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
