购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6TN-1101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,786 |
|
规格书 |
A6TN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6T-3101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,977 |
|
规格书 |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

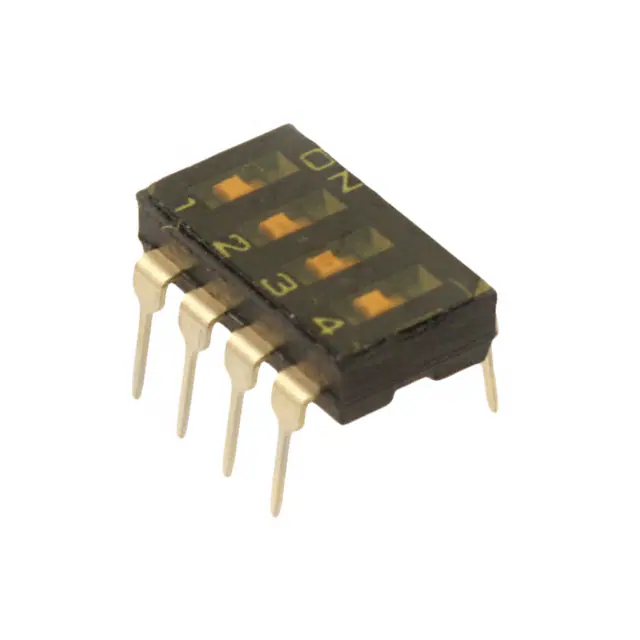

A6T-4101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,675 |
|
规格书 |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-7104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,894 |
|
规格书 |
A6FR | Tube | Active | SPST | 7 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

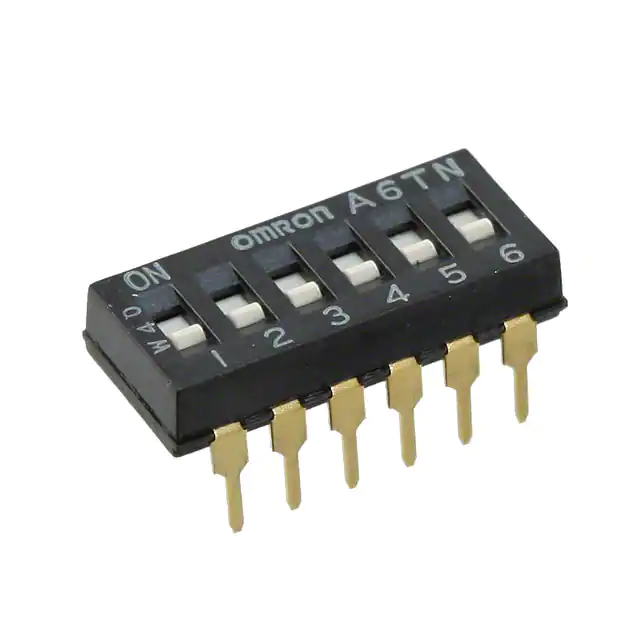

A6TN-6101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,827 |
|
规格书 |
A6TN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6FR-9104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,854 |
|
规格书 |
A6FR | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR-0101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,015 |
|
规格书 |
A6FR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-5104-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,351 |
|
规格书 |
A6E-N | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,580 |
|
规格书 |
A6SN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

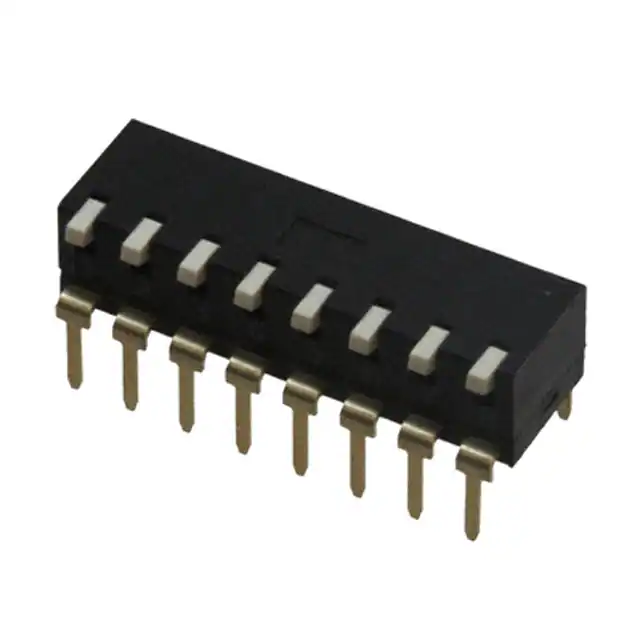

A6TR-8104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,111 |
|
规格书 |
A6TR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
