购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP-0511MCSWITCH PIANO DIP SPST 0.1A 6V |
3,121 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0512MCSWITCH PIANO DIP SPST 0.1A 6V |
1,317 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
1-1825006-9SWITCH SLIDE DIP SPST 0.025A 24V |
4,222 |
|
规格书 |
GDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

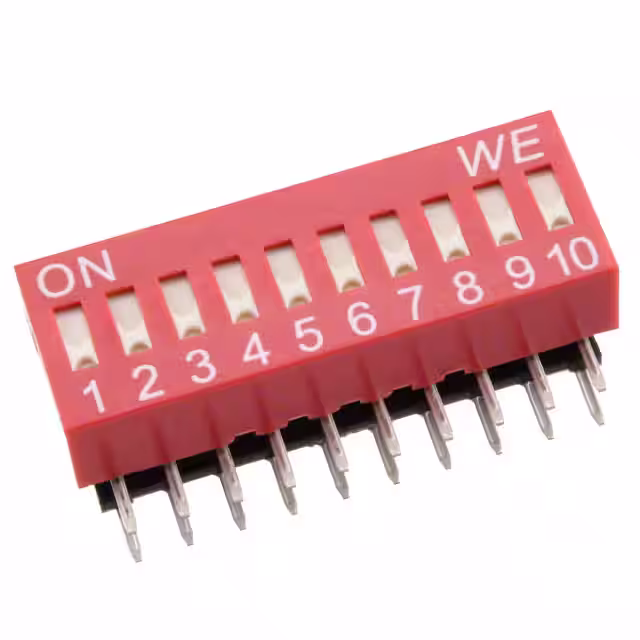

418217170910SWITCH SLIDE DIP SPST 0.025A 24V |
4,162 |
|
规格书 |
WS-DITU | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-2231WBSW ROTARY DIP BCD COMP 0.1A 5V |
3,143 |
|
- |
SD-2000 | Tray | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7111TBSWITCH ROTARY DIP BCD 0.1A 5V |
2,230 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7131TBSW ROTARY DIP BCD COMP 0.1A 5V |
4,719 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7151TBSWITCH ROTARY DIP HEX 0.1A 5V |
3,909 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7171TBSW ROTARY DIP HEX COMP 0.1A 5V |
4,388 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7111TASWITCH ROTARY DIP BCD 0.1A 5V |
1,211 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7131TASW ROTARY DIP BCD COMP 0.1A 5V |
3,893 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7151TASWITCH ROTARY DIP HEX 0.1A 5V |
2,833 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7171TASW ROTARY DIP HEX COMP 0.1A 5V |
1,484 |
|
规格书 |
SA-7000 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
GDH10STRSWITCH SLIDE DIP SPST 0.025A 24V |
1,925 |
|
规格书 |
GDH | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
RDMER10R2TSWITCH ROTARY DIP BCD 0.1A 42V |
4,172 |
|
规格书 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
TDA10H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
2,085 |
|
规格书 |
TDA | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
|
CHS-08ASWITCH SLIDE DIP SPST 0.1A 6V |
4,911 |
|
规格书 |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
CHS-08BSWITCH SLIDE DIP SPST 0.1A 6V |
1,300 |
|
规格书 |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
IKD0403000DIP SWITCH IKD 24VDC |
2,769 |
|
规格书 |
IKD | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
IKD0803101SLIDE SWITCH NK SUBMINIATURE |
4,943 |
|
规格书 |
IKD | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
