购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

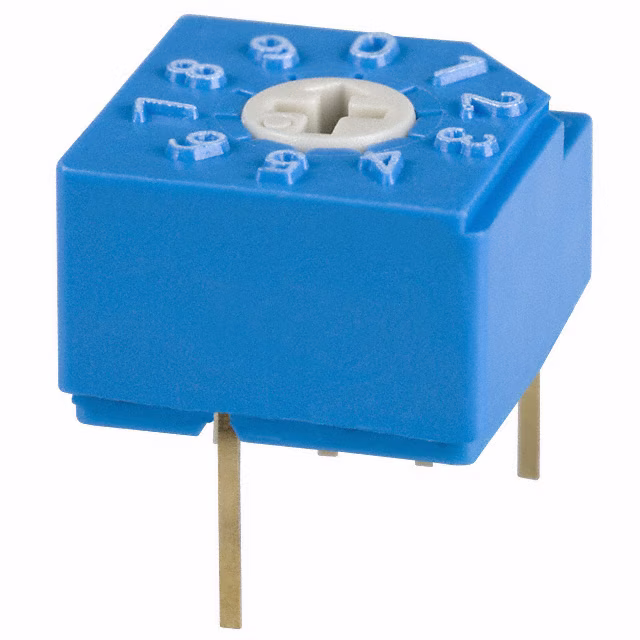

S-2030ASW ROTARY DIP BCD COMP 0.1A 5V |
2,755 |
|
规格书 |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RDTKR04S2TSWITCH ROTARY DIP BCD 0.15A 42V |
2,456 |
|
规格书 |
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Knob | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RTF10C1SSW ROTARY DIP BCD COMP 0.1A 5VDC |
3,013 |
|
规格书 |
RTF | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF10R3SSWITCH ROTARY DIP BCD 100MA 5VDC |
2,698 |
|
规格书 |
RTF | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
GDR06SW ROCKER DIP SPST 0.025A 24V |
3,454 |
|
- |
GDR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

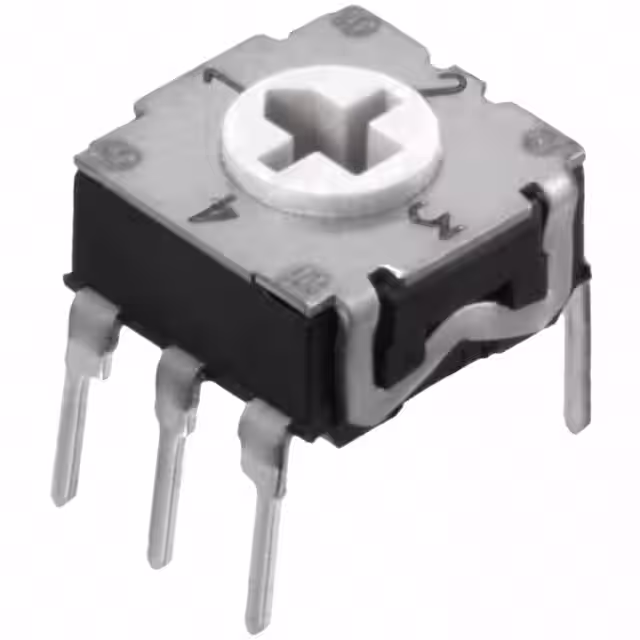

RTE0400N04SWITCH ROTARY DIP SP4T 0.1A 30V |
4,173 |
|
规格书 |
RTE | Tube | Active | SP4T | 4 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTF16R3CSWITCH ROTARY DIP HEX 100MA 5VDC |
1,507 |
|
规格书 |
RTF | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16R1SSWITCH ROTARY DIP HEX 100MA 5VDC |
2,014 |
|
规格书 |
RTF | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF16C1JSW ROTARY DIP HEX COMP 0.1A 5VDC |
4,550 |
|
规格书 |
RTF | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDTBC04R1TSW ROTARY DIP BCD COMP 0.15A 42V |
3,708 |
|
规格书 |
RDT | Tube | Active | BCD Complement | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR06R1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,892 |
|
规格书 |
RDT | Tube | Active | BCD | 6 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR04R1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,337 |
|
规格书 |
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KAC10LGGTSWITCH PIANO DIP SPST 0.025A 24V |
4,009 |
|
规格书 |
KAC | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CFS-0900MASWITCH SLIDE DIP SPST 0.1A 6V |
1,033 |
|
- |
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFS-0900MBSWITCH SLIDE DIP SPST 0.1A 6V |
4,138 |
|
- |
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFS-0900MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,594 |
|
- |
CFS | Tube | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SD-2210BSWITCH ROTARY DIP BCD 0.1A 5V |
1,555 |
|
- |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-1210BSWITCH ROTARY DIP HEX 0.1A 5V |
4,994 |
|
- |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-2010BSWITCH ROTARY DIP BCD 0.1A 5V |
3,306 |
|
- |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-2030BSW ROTARY DIP BCD COMP 0.1A 5V |
4,549 |
|
- |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
