购物车数字隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IL 717DGTL ISO 2500VRMS 4CH GP 16SOIC |
4,197 |
|
规格书 |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|

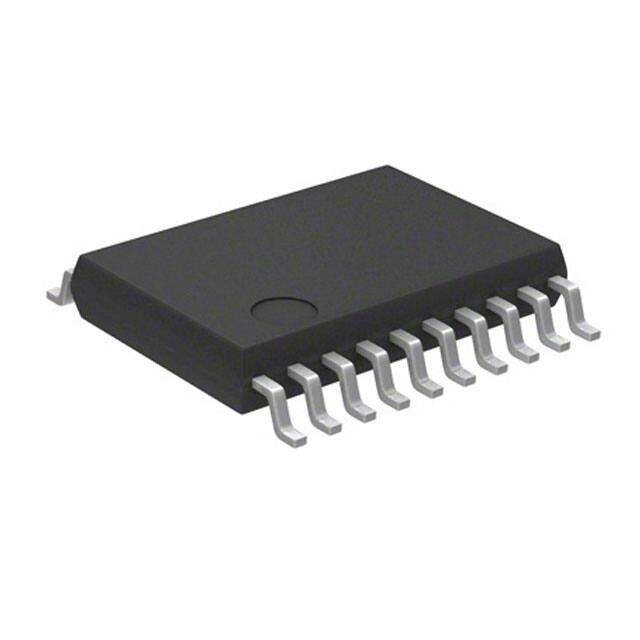

ADN4656BRWZ-RL7DGT ISO 5000VRMS 2CH LVDS 20SOIC |
1,127 |
|
规格书 |
iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1.1Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
SI86S606AE-AS26.0 KVRMS, I2C ISOLATOR, 1 BI- A |
4,046 |
|
规格书 |
Si86S60x | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 4/2 | Bidirectional, Unidirectional | 6000Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S605AE-AS26.0 KVRMS, I2C ISOLATOR, 1 BI- A |
3,847 |
|
规格书 |
Si86S60x | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/3 | Bidirectional, Unidirectional | 6000Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM6404CRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,099 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6403CRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,955 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM6400CRIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,479 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6401CRIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,532 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6402CRIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
3,220 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6404CRIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,505 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
IL 715TDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,866 |
|
规格书 |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
IL 715T-3DGTL ISO 2500VRMS 4CH GP 16SOIC |
4,815 |
|
规格书 |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
IL 716TDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,478 |
|
规格书 |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
HCPL-9030-500EDGTL ISO 2500VRMS 2CH GP 8SO |
3,945 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
HCPL-9030-300EDGTL ISO 2500VRMS 2CH GP 8SO |
2,293 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
ADUM5403WCRWZ-1RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,628 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3400TRWZ-EP-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,262 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3401TRWZ-EP-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,425 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3402TRWZ-EP-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,342 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM1200UR-EP-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
2,433 |
|
规格书 |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 45ns, 45ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SOIC |
