购物车数字隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI88644ED-ISRDGTL ISO 5KV 4CH GEN PURP 24SOIC |
3,254 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 0/4 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
ADUM6201CRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,357 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM6202CRWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,024 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6201CRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
1,052 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6202CRIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,188 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ADUM4472CRIZ-RLDGTL ISO 5000VRMS 4CH GP 20SOIC |
3,783 |
|
规格书 |
IsoPower®, iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SOIC-IC |
|

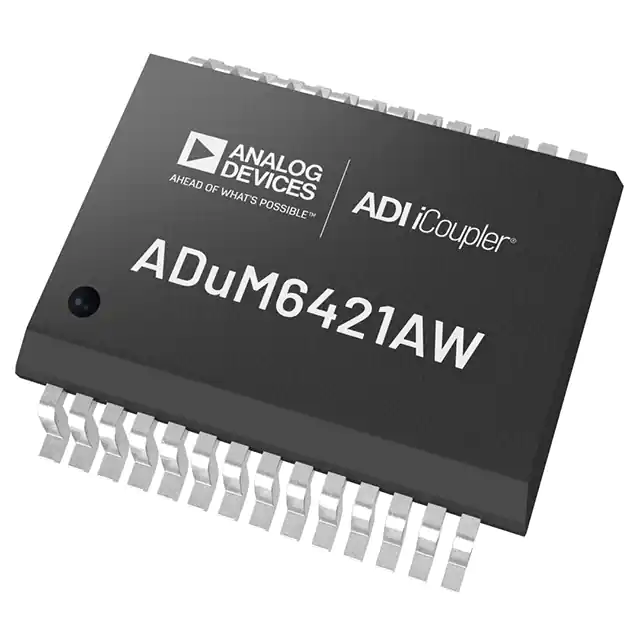

ADUM6421AWBRNZ5-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC |
4,353 |
|
规格书 |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
SI88243BD-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
1,415 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88241BD-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
1,018 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88242BD-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
3,846 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88241EC-ASAUTOMOTIVE 3.75 KV 4-CHANNEL DIG |
3,177 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88244BD-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
3,345 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88240BD-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
2,194 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88241ED-ASAUTOMOTIVE 5 KV 4-CHANNEL DIGITA |
3,938 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
ADUM6403ARWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
4,108 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM6400ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
3,725 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6402ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,301 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6403ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,330 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM6404ARIZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,750 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ISO7840DWWDGTL ISO 5700VRMS 4CH GP 16SOIC |
1,759 |
|
规格书 |
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
