购物车数字隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM3211WBRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
3,131 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM3210WBRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
4,103 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADUM4401BRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
100 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM2400BRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,842 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM4401BRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,770 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM4402CRWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
4,778 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM2400CRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,052 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
ISO7842DWWDGTL ISO 5700VRMS 4CH GP 16SOIC |
3,301 |
|
规格书 |
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
IL 711T-3DGTL ISO 2500VRMS 2CH GP 8SOIC |
4,386 |
|
规格书 |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADM2565EBRNZ3.75KV ISOPWR & ISORS485 25MBPS |
4,128 |
|
规格书 |
iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 1/3 | Unidirectional | 3000Vrms | 250kV/µs | 25Mbps | 25ns, 25ns | - | 4.5ns, 4.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 28-SOIC-W-FP |
|

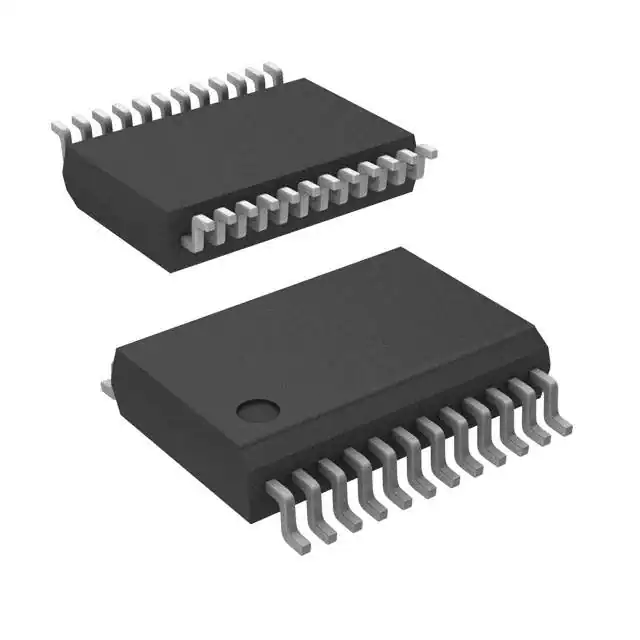

ADUM6411BRSZDGTL ISO 3750VRMS 4CH GP 24SSOP |
1,686 |
|
规格书 |
iCoupler® | 24-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 3750Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 24-SSOP |
|
|
ADUM6421ABRNZ3DGTL ISO 5KV 4CH GEN PRP 28SOIC |
1,535 |
|
规格书 |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
ADUM4150ARIZDGT ISOL 5000VRMS 6CH SPI 20SOIC |
3,672 |
|
规格书 |
iCoupler®, SPIsolator™ | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | SPI | No | 6 | 4/2 | Unidirectional | 5000Vrms | 25kV/µs | 40Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC-IC |
|
|
ADUM6202ARIZDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,206 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM5201WCRWZDGTL ISO 2500VRMS 2CH GP 16SOIC |
3,314 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3.3V, 5V | Automotive | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM6423ABRNZ3DGTL ISO 5KV 4CH GEN PRP 28SOIC |
3,499 |
|
规格书 |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
|
ADUM5400CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,530 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM6421AWBRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
2,803 |
|
规格书 |
IsoPower®, iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
|
ADUM6402ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,305 |
|
规格书 |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADN4655BRWZDGT ISO 5000VRMS 2CH LVDS 20SOIC |
2,137 |
|
规格书 |
iCoupler® | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1.25Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
