| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B40SR12424CCDC/DC CONVERTER 12.4V 298W |
328 |
|
规格书 |
B40SR (200W) | Bag | Active | Enclosed | 18V | 60V | 1 | 12.4V | - | - | - | 24A | 298W | 2.25 kV | ITE (Commercial) | 88.8% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|

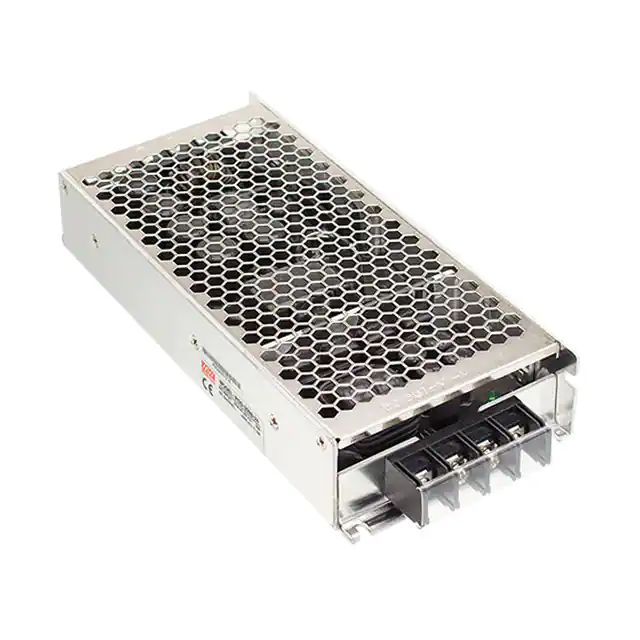

RSD-300B-5DC/DC CONVERTER 5V 210W |
2,361 |
|
规格书 |
RSD-300 (300W) | Box | Active | Enclosed | 16.8V | 31.2V | 1 | 5V | - | - | - | 42A | 210W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
|
B62SR12424CCDC/DC CONVERTER 12.4V 298W |
4,515 |
|
规格书 |
B62SR (240W) | Bag | Active | Enclosed | 18V | 106V | 1 | 12.4V | - | - | - | 24A | 298W | 2.25 kV | ITE (Commercial) | 89% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|
|
RSD-300E-24DC/DC CONVERTER 24V 300W |
1,030 |
|
规格书 |
RSD-300 (300W) | Box | Active | Enclosed | 25.2V | 46.8V | 1 | 24V | - | - | - | 12.5A | 300W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
B62SR13722ACDC/DC CONVERTER 13.7V 300W |
2,304 |
|
规格书 |
B62SR (240W) | Bag | Active | Enclosed | 18V | 106V | 1 | 13.7V | - | - | - | 22A | 300W | 2.25 kV | ITE (Commercial) | 90% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|
|
B62SR24125ACDC/DC CONVERTER 24V 300W |
1,568 |
|
规格书 |
B62SR (240W) | Bag | Active | Enclosed | 18V | 106V | 1 | 24V | - | - | - | 12.5A | 300W | 2.25 kV | ITE (Commercial) | 92% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|

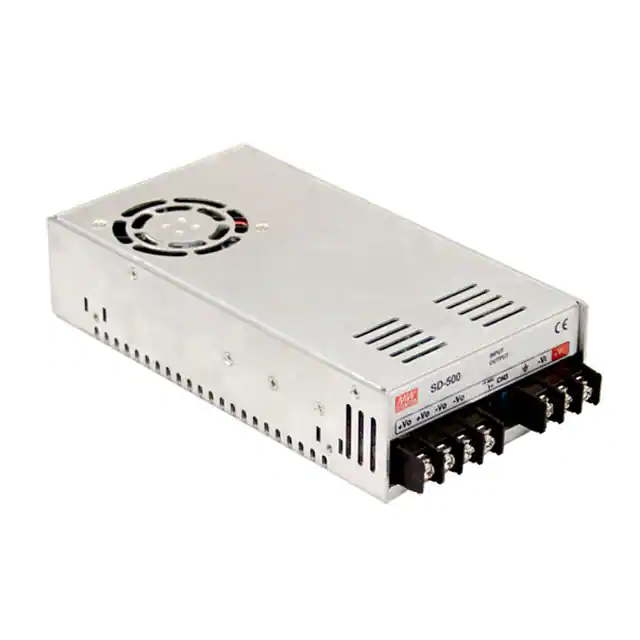

SD-500H-12DC/DC CONVERTER 12V 480W |
2,202 |
|
规格书 |
SD-500 (500W) | Box | Active | Enclosed | 72V | 144V | 1 | 12V | - | - | - | 40A | 480W | 2 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CB, CE | - |
|

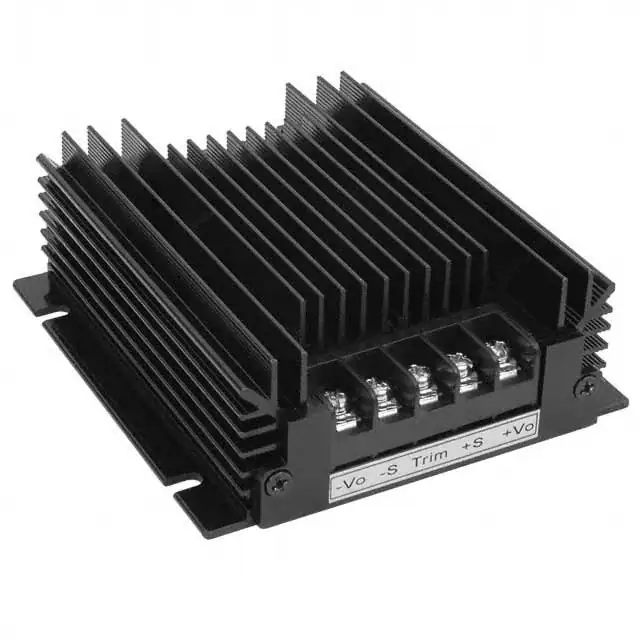

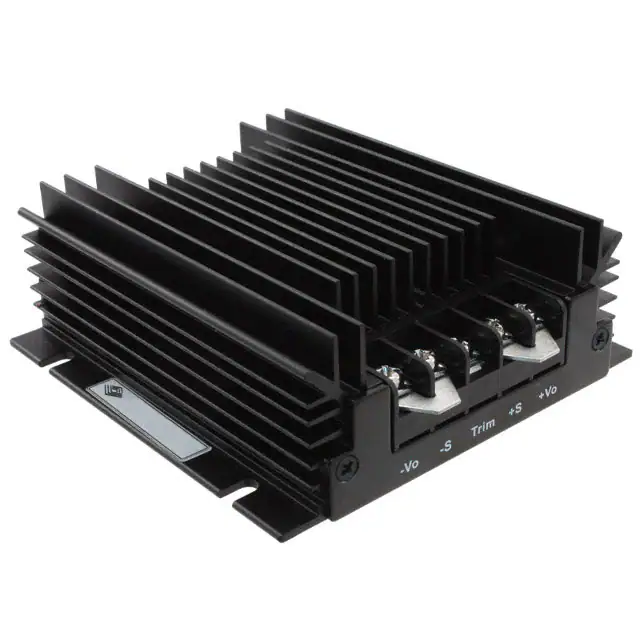

VHK50W-Q48-S12DC/DC CONVERTER 12V 50W |
232 |
|
规格书 |
VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 4.16A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
TEQ 40-2412WIRDC/DC CONVERTER 12V 40W |
3,966 |
|
规格书 |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 1 | 12V | - | - | - | 3.33A | 40W | 1.6 kV | ITE (Commercial), Railway | 91% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
|
VHK50W-Q24-S48DC/DC CONVERTER 48V 50W |
1,990 |
|
规格书 |
VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 1.04A | 50W | - | - | 82% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
B70SP24020ADC/DC CONVERTER 24.5V 515W |
4,998 |
|
规格书 |
B70SP24020A (500W) | Box | Active | Enclosed | 32V | 96V | 1 | 24.5V | - | - | - | 21A | 515W | 2.25 kV | ITE (Commercial) | 91.5% | -40°C ~ 90°C (With Derating) | Chassis Mount | 7.80" L x 4.45" W x 1.77" H (198.0mm x 113.0mm x 45.0mm) | CE | - |
|
B70SP13736ADC/DC CONVERTER 13.7V 500W |
4,944 |
|
规格书 |
B70SP13736 (500W) | Box | Active | Enclosed | 32V | 96V | 1 | 13.7V | - | - | - | 36.5A | 500W | 2.25 kV | ITE (Commercial) | 90% | -40°C ~ 90°C (With Derating) | Chassis Mount | 7.80" L x 4.45" W x 1.77" H (198.0mm x 113.0mm x 45.0mm) | CE | - |
|
VHK75W-Q48-S24DC/DC CONVERTER 24V 75W |
2,219 |
|
规格书 |
VHK75W (75W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 3.12A | 75W | - | - | 84% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
|
|
VHK75W-Q24-S5DC/DC CONVERTER 5V 75W |
1,031 |
|
规格书 |
VHK75W (75W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 15A | 75W | - | - | 80% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
|
VHK200W-Q48-S28DC/DC CONVERTER 28V 200W |
3,202 |
|
规格书 |
VHK200W (200W) | Box | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 7.14A | 200W | - | - | 87% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|
VCCR300-12300W 12V WIDE INPUT RANGE CONDUC |
2,975 |
|
规格书 |
VCCR300 (300W) | Bulk | Active | Enclosed | 33.6V | 160V | 1 | 12V | - | - | - | 25A | 300W | 5.4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 70°C | Chassis Mount | 7.43" L x 4.33" W x 1.00" H (188.7mm x 110.0mm x 25.4mm) | CE, UKCA, UL | 62368-1 |
|
|
VCCR300-36300W 36V WIDE INPUT RANGE CONDUC |
3,882 |
|
规格书 |
VCCR300 (300W) | Bulk | Active | Enclosed | 33.6V | 160V | 1 | 36V | - | - | - | 8.33A | 300W | 5.4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 70°C | Chassis Mount | 7.43" L x 4.33" W x 1.00" H (188.7mm x 110.0mm x 25.4mm) | CE, UKCA, UL | 62368-1 |
|
|
VCCR300-48300W 48V WIDE INPUT RANGE CONDUC |
4,914 |
|
规格书 |
VCCR300 (300W) | Bulk | Active | Enclosed | 33.6V | 160V | 1 | 48V | - | - | - | 6.25A | 300W | 5.4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 70°C | Chassis Mount | 7.43" L x 4.33" W x 1.00" H (188.7mm x 110.0mm x 25.4mm) | CE, UKCA, UL | 62368-1 |
|
VHK150W-Q24-S48DC/DC CONVERTER 48V 150W |
2,252 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 3.12A | 150W | - | - | 84% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.00" W x 1.50" H (107.5mm x 102.0mm x 38.0mm) | - | - |
|

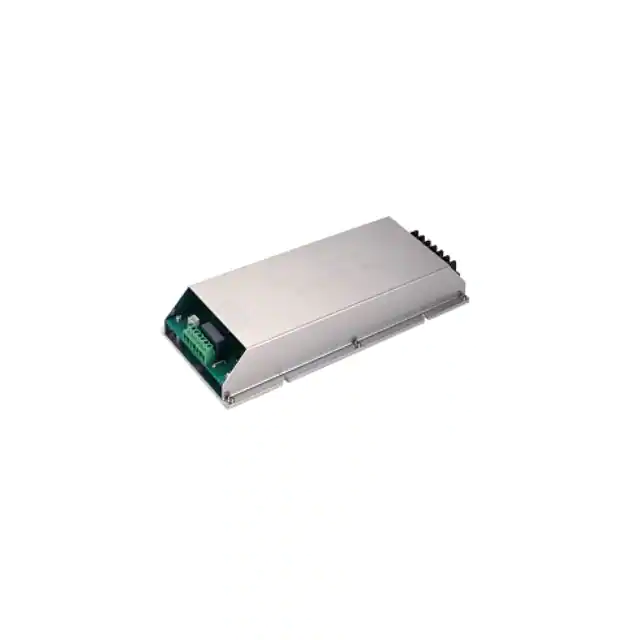

CFB750-300S48-CMFDDC/DC CONVERTER 48V 749W |
1,438 |
|
规格书 |
CFB750-300S-CMFD (750W) | Box | Active | Enclosed | 200V | 425V | 1 | 48V | - | - | - | 15.6A | 749W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm) | CE | 62368-1 |
