购物车直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEP 200-2415WIRCMFDC/DC CONVERTER 24V 180W |
2,450 |
|
规格书 |
TEP 200WIRCMF (200W) | Box | Active | Open Frame | 9V | 36V | 1 | 24V | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|

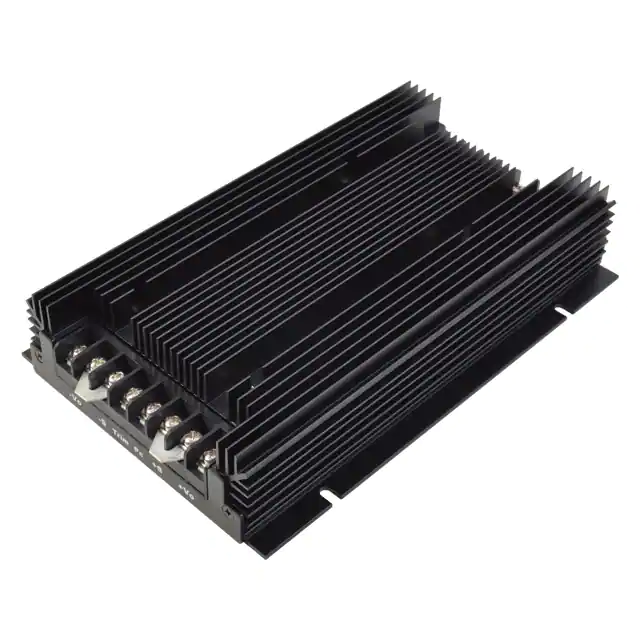

VFK600-D24-S28DC/DC CONVERTER 28V 600W |
2,893 |
|
规格书 |
VFK600 (700W) | Box | Active | Enclosed | 18V | 36V | 1 | 28V | - | - | - | 21.5A | 600W | - | - | 90% | -40°C ~ 100°C | Chassis Mount | 7.84" L x 4.99" W x 1.54" H (199.1mm x 126.8mm x 39.1mm) | - | - |
|
VFK600-D48-S12DC/DC CONVERTER 12V 600W |
3,447 |
|
规格书 |
VFK600 (700W) | Box | Active | Enclosed | 36V | 75V | 1 | 12V | - | - | - | 50A | 600W | - | - | 90% | -40°C ~ 100°C | Chassis Mount | 7.84" L x 4.99" W x 1.54" H (199.1mm x 126.8mm x 39.1mm) | - | - |
|

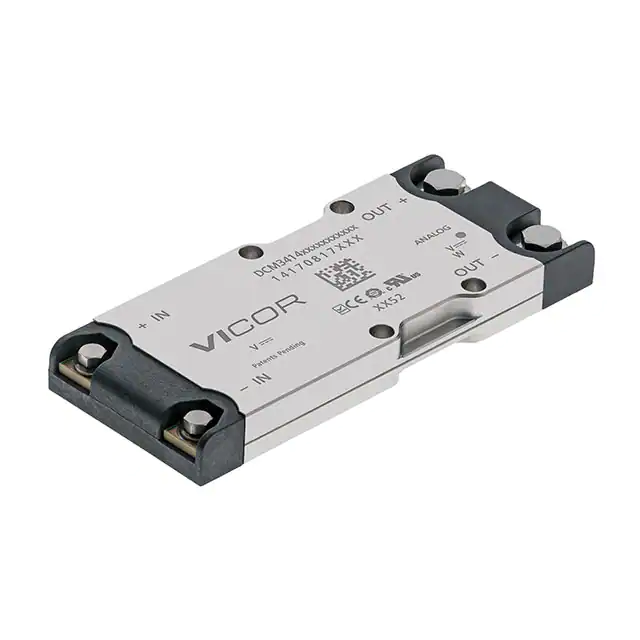

DCM3414V50M31C2C01DC/DC CONVERTER 28V 320W |
2,460 |
|
规格书 |
VI Chip® DCM® (320W) | Box | Active | Enclosed | 16V | 50V | 1 | 28V | - | - | - | 11.43A | 320W | - | ITE (Commercial) | 93.3% | -20°C ~ 100°C | Chassis Mount | 3.38" L x 1.40" W x 0.37" H (85.9mm x 35.5mm x 9.3mm) | CE | - |
|
|
DCM3414V50M26C2C01DC/DC CONVERTER 24V 320W |
2,093 |
|
规格书 |
VI Chip® DCM® (320W) | Box | Active | Enclosed | 16V | 50V | 1 | 24V | - | - | - | 13.33A | 320W | - | ITE (Commercial) | 90.7% | -20°C ~ 125°C | Chassis Mount | 3.38" L x 1.40" W x 0.37" H (85.9mm x 35.5mm x 9.3mm) | CE | - |
|

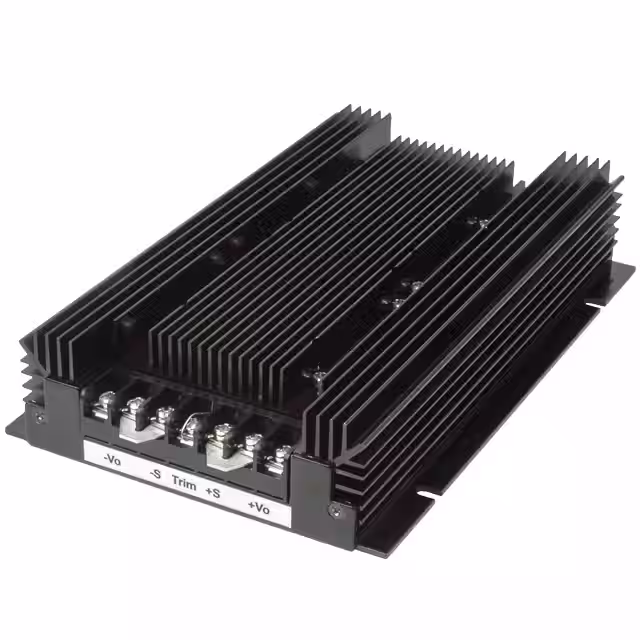

VFK400W-Q48-S24DC/DC CONVERTER 24V 400W |
3,139 |
|
规格书 |
VFK400W (400W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 16.7A | 400W | - | - | 86% | -40°C ~ 100°C | Chassis Mount | 7.84" L x 4.99" W x 1.54" H (199.0mm x 126.8mm x 39.0mm) | - | - |
|
VFK400W-Q24-S24DC/DC CONVERTER 24V 400W |
4,665 |
|
规格书 |
VFK400W (400W) | Box | Active | Enclosed | 10V | 36V | 1 | 24V | - | - | - | 16.7A | 400W | - | - | 86% | -40°C ~ 100°C | Chassis Mount | 7.84" L x 4.99" W x 1.54" H (199.0mm x 126.8mm x 39.0mm) | - | - |
|
|
DFR0952DC-DC BOOST POWER SUPPLY MODULE |
109 |
|
规格书 |
- | Bulk | Active | Open Frame | 2.5V | 12V | 5 | 5V | 8V | 9V | 12V | 1A, 700mA, 600mA, 500mA | - | - | ITE (Commercial) | 80% | - | Chassis Mount | - | - | - |
|
|
N7809-1CWPWR SUPP, BATT & COND |
108 |
|
规格书 |
N78 (9W) | Bulk | Active | Enclosed | 13V | 36V | 1 | 9V | - | - | - | 1A | 9W | - | ITE (Commercial) | 95% | -40°C ~ 85°C (With Derating) | Desktop | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) | CE, EAC, UKCA | - |
|
R-78W3.3-0.5DC/DC CONVERTER 3.3V |
306 |
|
规格书 |
INNOLINE R-78-0.5 | Bulk | Active | Linear Regulator Replacement | 6.5V | 32V | 1 | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | 90% | -40°C ~ 85°C | Chassis Mount | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - |
|
|
R-78W9.0-0.5DC/DC CONVERTER 9V |
287 |
|
规格书 |
INNOLINE R-78-0.5 | Bulk | Active | Linear Regulator Replacement | 11V | 32V | 1 | 9V | - | - | - | 500mA | - | - | ITE (Commercial) | 95% | -40°C ~ 85°C | Chassis Mount | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - |
|
SD-15B-24DC/DC CONVERTER 24V 15W |
406 |
|
规格书 |
SD-15 (15W) | Box | Active | Enclosed | 18V | 36V | 1 | 24V | - | - | - | 625mA | 15W | 1.5 kV | ITE (Commercial) | 77% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - |
|
|
SD-15C-12DC/DC CONVERTER 12V 15W |
178 |
|
规格书 |
SD-15 (15W) | Box | Active | Enclosed | 36V | 72V | 1 | 12V | - | - | - | 1.25A | 15W | 1.5 kV | ITE (Commercial) | 79% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - |
|
|
SD-15C-24DC/DC CONVERTER 24V 15W |
167 |
|
规格书 |
SD-15 (15W) | Box | Active | Enclosed | 36V | 72V | 1 | 24V | - | - | - | 625mA | 15W | 1.5 kV | ITE (Commercial) | 78% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - |
|
SD-50B-12DC/DC CONVERTER 12V 50W |
872 |
|
规格书 |
SD-50 (50W) | Box | Active | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 4.2A | 50W | 1.5 kV | ITE (Commercial) | 75% | -10°C ~ 60°C (With Derating) | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | CE | - |
|
|
SD-50C-12DC/DC CONVERTER 12V 50W |
405 |
|
规格书 |
SD-50 (50W) | Box | Active | Enclosed | 36V | 72V | 1 | 12V | - | - | - | 4.2A | 50W | 1.5 kV | ITE (Commercial) | 78% | -10°C ~ 60°C (With Derating) | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | CE | - |
|
RSD-30H-5DC/DC CONVERTER 5V 30W |
136 |
|
规格书 |
RSD-30 (30W) | Box | Active | Enclosed | 40V | 160V | 1 | 5V | - | - | - | 6A | 30W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm) | CE | - |
|

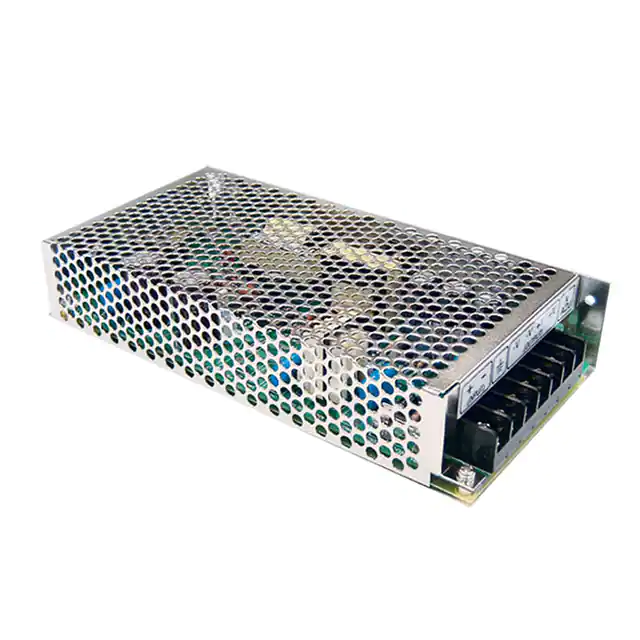

SD-100B-12DC/DC CONVERTER 12V 102W |
120 |
|
规格书 |
SD-100 (100W) | Box | Active | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 8.5A | 102W | 1.5 kV | ITE (Commercial) | 75% | -10°C ~ 60°C (With Derating) | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CE | - |
|
TMDC 06-2411DC/DC CONVERTER 5.1V 6.1W |
119 |
|
规格书 |
TMDC 06 (6W) | Tube | Active | Enclosed | 9V | 36V | 1 | 5.1V | - | - | - | 1.2A | 6.1W | 3 kV | ITE (Commercial) | 81% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
RSD-60G-3.3DC/DC CONVERTER 3.3V 40W |
118 |
|
规格书 |
RSD-60 (60W) | Box | Active | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 12A | 40W | 4 kV | ITE (Commercial), Railway | 86.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) | CE | - |
