电流感应变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	频率范围	类型	电流额定值（安培）	电感	ET（伏特-时间）	初级：次级匝比	电流比	直流电阻 (DCR)	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
ECST1V0805-1020-R CURR SENSE XFMR 20:1 10A SMD Eaton - Electronics Division	2,378	-	立即询价	规格书	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	80 µH	-	20:1	-	700mOhm Primary, 400mOhm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECST1V0805-1125-R CURR SENSE XFMR 125:1 10A SM Eaton - Electronics Division	1,837	-	立即询价	规格书	ECST	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	3 mH	-	125:1	-	700mOhm Primary, 11.5Ohm Secondary Max	-	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing

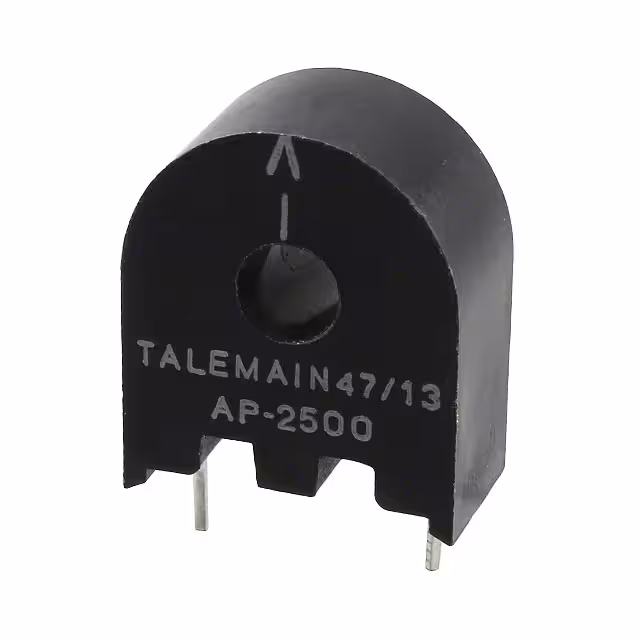

AP-2500 CURR SENSE XFMR 15A T/H Talema Group LLC	1,053	-	立即询价	规格书	AP	Tray	Active	-	Non-Invasive (Solid Core)	15 A	-	-	-	2500:1	330Ohm Max	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
PMS9494.150NLT XFMR SENSE SMT EE8.5 30A 150:1 Pulse Electronics	2,753	-	立即询价	规格书	-	Tape & Reel (TR)	Preliminary	20kHz ~ 1MHz	Invasive	30 A	5 mH	-	1.50:150	150:1.50	0.35mOhm Primary, 8.2Ohm Secondary	-	Surface Mount	0.512" L x 0.413" W (13.00mm x 10.50mm)	0.283" (7.20mm)	Gull Wing
CST25-0500 CURR SENSE XFMR 1:500 25A TH Triad Magnetics	1,609	-	立即询价	规格书	CST	Tube	Active	50kHz ~ 500kHz	Invasive	25 A	470 mH	1750VµS	1:500	-	16Ohm	-	Through Hole	0.669" L x 0.591" W (17.00mm x 15.00mm)	0.472" (12.00mm)	PC Pin
CST25-1000 CURR SENSE XFMR 1:1000 25A TH Triad Magnetics	2,786	-	立即询价	规格书	CST	Bulk	Active	50kHz ~ 500kHz	Invasive	25 A	1.9 H	-	1:1000	-	50Ohm	-	Through Hole	0.669" L x 0.591" W (17.00mm x 15.00mm)	0.472" (12.00mm)	PC Pin
T60404E4627X001 4627X001 VACUUMSCHMELZE	4,102	-	立即询价	-	-	Box	Active	-	Non-Invasive (Solid Core)	200 A	24.6 H	-	1:1000	1000:1	14.2Ohm	-	Free Hanging (In-Line)	1.181" L x 0.689" W (30.00mm x 17.50mm)	1.201" (30.50mm)	Wire Leads
ECSTA1V0805-1030-R CURR SENSE XFMR 30:1 10A SMD Eaton - Electronics Division	3,152	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	180 µH	-	30:1	-	700mOhm Primary, 870mOhm Secondary Max	AEC-Q200	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
T60404E4658X039 CURR SENSE XFMR 1500:1 6A TH VACUUMSCHMELZE	2,456	-	立即询价	规格书	-	Box	Active	50Hz	Non-Invasive (Solid Core)	6 A	8 H	-	1:1500	1500:1	44Ohm	-	Through Hole	0.661" L x 0.354" W (16.80mm x 9.00mm)	0.748" (19.00mm)	PC Pin
AS-200 CURR SENSE XFMR 15A 1:50 VRT Amgis, LLC	1,826	-	立即询价	规格书	AS	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.571" L x 0.772" W (14.50mm x 19.60mm)	0.709" (18.00mm)	-
AS-201 CURR SENSE XFMR 15A 1:100 VRT Amgis, LLC	4,760	-	立即询价	规格书	AS	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.571" L x 0.772" W (14.50mm x 19.60mm)	0.709" (18.00mm)	-
ECSTA1V0805-1020-R CURR SENSE XFMR 20:1 10A SMD Eaton - Electronics Division	1,323	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	80 µH	-	20:1	-	700mOhm Primary, 400mOhm Secondary Max	AEC-Q200	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECSTA1V0805-1070-R CURR SENSE XFMR 70:1 10A SMD Eaton - Electronics Division	3,336	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	980 µH	-	70:1	-	700mOhm Primary, 4.75Ohm Secondary Max	AEC-Q200	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECSTA1V0805-1060-R CURR SENSE XFMR 60:1 10A SMD Eaton - Electronics Division	3,713	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	730 µH	-	60:1	-	700mOhm Primary, 2.3Ohm Secondary Max	AEC-Q200	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
ECSTA1V0805-1040-R CURR SENSE XFMR 40:1 10A SMD Eaton - Electronics Division	3,554	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	10 A	320 µH	-	40:1	-	700mOhm Primary, 1.14Ohm Secondary Max	AEC-Q200	Surface Mount	0.330" L x 0.315" W (8.38mm x 8.00mm)	0.217" (5.50mm)	Gull Wing
T60404E4623X121 4623X121 VACUUMSCHMELZE	1,634	-	立即询价	-	-	Box	Active	-	Non-Invasive (Solid Core)	40 A	6.5 H	-	1:2500	2500:1	60Ohm	-	Free Hanging (In-Line)	1.331" L x 0.665" W (33.80mm x 16.90mm)	1.413" (35.90mm)	Wire Leads
ASM-030 CURR SENSE XFMR 1-30A TH Amgis, LLC	4,510	-	立即询价	规格书	ASM	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.990" L x 0.440" W (25.15mm x 11.18mm)	1.000" (25.40mm)	-
ASM-020 CURR SENSE XFMR 1-20A TH Amgis, LLC	4,646	-	立即询价	规格书	ASM	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.906" L x 0.610" W (23.00mm x 15.50mm)	0.984" (25.00mm)	-
AS-202 CURR SENSE XFMR 15A 1:200 VRT Amgis, LLC	4,700	-	立即询价	规格书	AS	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.571" L x 0.772" W (14.50mm x 19.60mm)	0.709" (18.00mm)	-
AS-300 CURR SENSE XFMR 15A 1:50 VRT Amgis, LLC	4,563	-	立即询价	规格书	AS	Bulk	Active	-	-	-	-	-	-	-	-	-	-	0.701" L x 0.902" W (17.80mm x 22.90mm)	0.701" (17.80mm)	-

共 2059 记录«上一页 1... 54 55 56 575859 60 61...103 下一页»
