电流感应变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	频率范围	类型	电流额定值（安培）	电感	ET（伏特-时间）	初级：次级匝比	电流比	直流电阻 (DCR)	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
TCS-01 CURR SENSE XFMR 1:20 SMD Tamura	2,508	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	80 µH	-	1:20	-	6mOhm Primary, 550mOhm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-02 CURR SENSE XFMR 1:30 SMD Tamura	4,910	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	180 µH	-	1:30	-	6mOhm Primary, 870mOhm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-03 CURR SENSE XFMR 1:40 SMD Tamura	4,025	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	320 µH	-	1:40	-	6mOhm Primary, 1.14Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-05 CURR SENSE XFMR 1:60 SMD Tamura	4,397	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	720 µH	-	1:60	-	6mOhm Primary, 1.75Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-07 CURR SENSE XFMR 1:100 SMD Tamura	4,908	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	2 mH	-	1:100	-	6mOhm Primary, 5.9Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
TCS-08 CURR SENSE XFMR 1:125 SMD Tamura	2,352	-	立即询价	规格书	TCS	Tape & Reel (TR)	Obsolete	250kHz Min	Invasive	-	3 mH	-	1:125	-	6mOhm Primary, 7.7Ohm Secondary	-	Surface Mount	0.276" L x 0.331" W (7.00mm x 8.40mm)	0.205" (5.20mm)	Gull Wing
PA1005.060NL CURR SENSE XFMR 1:60 20A SMD Pulse Electronics	4,037	-	立即询价	规格书	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	720 µH	-	1:60	-	0.75mOhm Primary, 2.5Ohm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.040NL CURR SENSE XFMR 1:40 20A SMD Pulse Electronics	4,127	-	立即询价	规格书	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.030NL CURR SENSE XFMR 1:30 20A SMD Pulse Electronics	3,526	-	立即询价	规格书	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.020NL CURR SENSE XFMR 1:20 20A SMD Pulse Electronics	4,250	-	立即询价	规格书	PA1005.XXXNL	Tray	Active	20kHz ~ 1MHz	Invasive	20 A	80 µH	-	1:20	-	0.75mOhm Primary, 550mOhm Secondary Max	-	Surface Mount	-	0.217" (5.50mm)	Gull Wing
PA1005.040QNL CURR SENSE XFMR 1:40 20A SMD Pulse Electronics	1,673	-	立即询价	规格书	-	Tray	Active	50kHz ~ 1MHz	Invasive	20 A	320 µH	-	1:40	-	0.75mOhm Primary, 1.14Ohm Secondary	AEC-Q200	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
CS-1100-R CURR SENSE XFMR 20A T/H Eaton - Electronics Division	2,613	-	立即询价	规格书	CS	Bulk	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	22.4 mH	-	-	100:1	1.3Ohm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin
CS-1200-R CURR SENSE XFMR 40A T/H Eaton - Electronics Division	3,049	-	立即询价	规格书	CS	Bulk	Obsolete	20kHz ~ 100kHz	Non-Invasive (Solid Core)	40 A	89.7 mH	-	-	200:1	3.3Ohm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin
CS-1050-R CURR SENSE XFMR 10A T/H Eaton - Electronics Division	2,403	-	立即询价	规格书	CS	Bulk	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	5.6 mH	-	-	50:1	600mOhm	-	Through Hole	0.675" L x 0.375" W (17.15mm x 9.53mm)	0.800" (20.32mm)	PC Pin

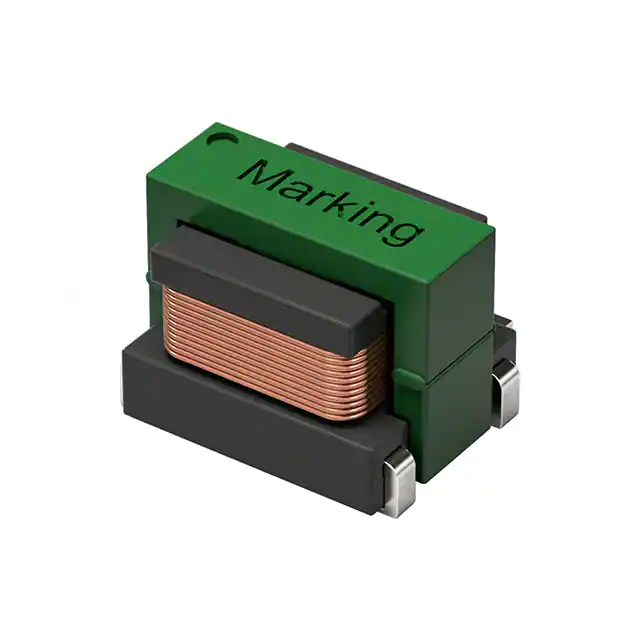

749252070 CURR SENSE XFMR 1:70 7A SMD Würth Elektronik	1,872	-	立即询价	规格书	WE-CST	Tape & Reel (TR)	Active	1MHz	Invasive	7 A	400 µH	31.5VµS	1:70	-	3mOhm Primary, 4.6Ohm Secondary	-	Surface Mount	0.185" L x 0.183" W (4.70mm x 4.65mm)	0.140" (3.55mm)	Gull Wing
AS-101 CURR SENSE XFMR 1:100 15A T/H Talema Group LLC	1,152	-	立即询价	规格书	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	25 mH	350VµS	1:100	-	1.1Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
55050C-R CURR SENSE XFMR 1:1:50 15A SMD Murata Power Solutions Inc.	3,143	-	立即询价	规格书	5500	Tape & Reel (TR)	Obsolete	50kHz ~ 500kHz	Invasive	15 A	3.8 mH	-	1:1:50	-	2.3mOhm Primary, 350mOhm Secondary	-	Surface Mount	0.575" L x 0.496" W (14.60mm x 12.60mm)	0.280" (7.10mm)	-
AS-102 CURR SENSE XFMR 1:200 15A T/H Talema Group LLC	3,258	-	立即询价	规格书	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	700VµS	1:200	-	4.5Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
B82801A0185A150 CURR SENSE XFMR 1:150 7A SMD EPCOS - TDK Electronics	1,865	-	立即询价	规格书	B82801A	Tape & Reel (TR)	Obsolete	50kHz ~ 1MHz	Invasive	7 A	1.84 mH	43.2VµS	1:150	-	2.5mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185" L x 0.138" W (4.70mm x 3.50mm)	0.138" (3.50mm)	J Lead
AS-103 CURR SENSE XFMR 1:300 15A T/H Talema Group LLC	2,548	-	立即询价	规格书	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	15 A	-	900VµS	1:300	-	10Ohm Secondary	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin

共 2059 记录«上一页 1... 50 51 52 535455 56 57...103 下一页»
