购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8HL-1A4P-SI3 12-100RELAY AUTO |
3,888 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 90 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 7 VDC | 0.7 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 100°C |
|
|
G8HL-1A4P-TW2 12-100RELAY AUTO |
2,928 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 90 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 7 VDC | 0.7 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 100°C |
|
|
G8HL-1A4T-H118 DC12RELAY AUTO |
1,978 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 90 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 7 VDC | 0.7 VDC | 10 ms | 15 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 100°C |
|
|
G8HL-1A4T-R-H71RELAY AUTO |
4,105 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.7 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 100°C |
|
|
G8HL-1A4T-R-ISU2 DC12RELAY AUTO |
1,591 |
|
- |
G8HL | Bulk | Obsolete | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.7 VDC | 10 ms | 15 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 100°C |
|
|
G8JN-1A7T-D DC12RELAY MINI ISO AUTO |
2,641 |
|
- |
G8JN | Bulk | Obsolete | Non Latching | 176 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1C2T-R-MM04 DC12RELAY MINI ISO AUTO |
3,430 |
|
- |
G8JN | Bulk | Obsolete | Non Latching | 176 mA | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | Resistor | - | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JN-1C7T-MF-R DC24 BY OMR1RELAY MINI ISO AUTO |
4,231 |
|
- |
G8JN | Bulk | Obsolete | Non Latching | - | 24VDC | SPDT (1 Form C) | 35 A | - | - | - | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8JR-1A2T-R-F1 DC12 BY OBI1RELAY MINI ISO AUTO |
1,866 |
|
- |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A7T-D DC12 BY OKA1RELAY MINI ISO AUTO |
3,637 |
|
- |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A7T-R-GM1 DC12 BY OKA1RELAY MINI ISO AUTO |
3,589 |
|
- |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1A7T-SP-R-CR01 DC12 BY OKRELAY MINI ISO AUTO |
2,033 |
|
- |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JR-1B2T-FT01 DC12 BY OBI1RELAY MINI ISO AUTO |
2,398 |
|
- |
G8JR | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NC (1 Form B) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8QN-1C4 DC12 SI3RELAY AUTO |
4,891 |
|
- |
G8QN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.6 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8QN-1C4-05 DC12RELAY AUTO |
4,261 |
|
- |
G8QN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.6 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8QN-UA-007124 DC12RELAY AUTO |
1,634 |
|
- |
G8QN | Bulk | Obsolete | Non Latching | - | 12VDC | - | 30 A | 16VDC - Max | 6.6 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8QN-UA-007708RELAY AUTO |
2,387 |
|
- |
G8QN | Bulk | Obsolete | Non Latching | - | - | - | 30 A | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
10827961RELAY FOR TIME-DELAYED DEENERG. |
2,034 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

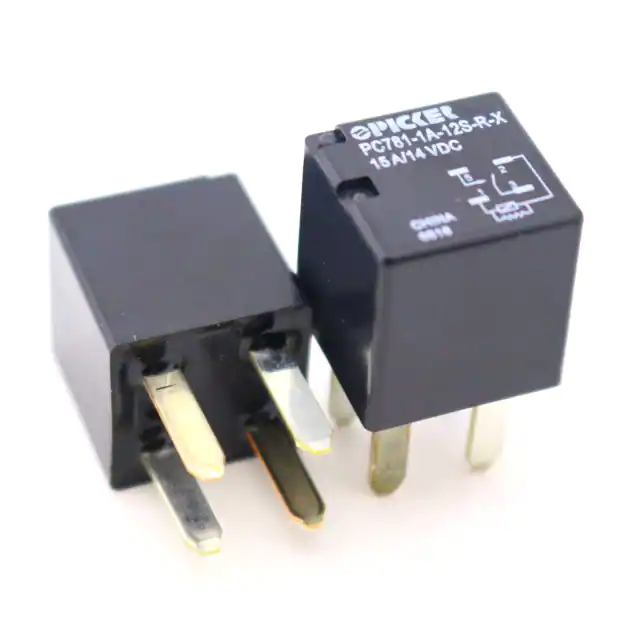

PC781-1A-12S-R-X15 A MICRO ISO AUTOMOTIVE RELAY |
2,009 |
|
规格书 |
- | Tray | Obsolete | Non Latching | 109 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 16VDC - Max | 7.5 VDC | 1 VDC | - | - | Resistor, Sealed - Fully | Socketable | Plug In | -30°C ~ 100°C |
|
CAR1AP80DC12-SCAR80 SERIES, SPST, 80A, DC12V C |
2,943 |
|
规格书 |
CAR80 | Tube | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 14VDC - Max | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
