购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

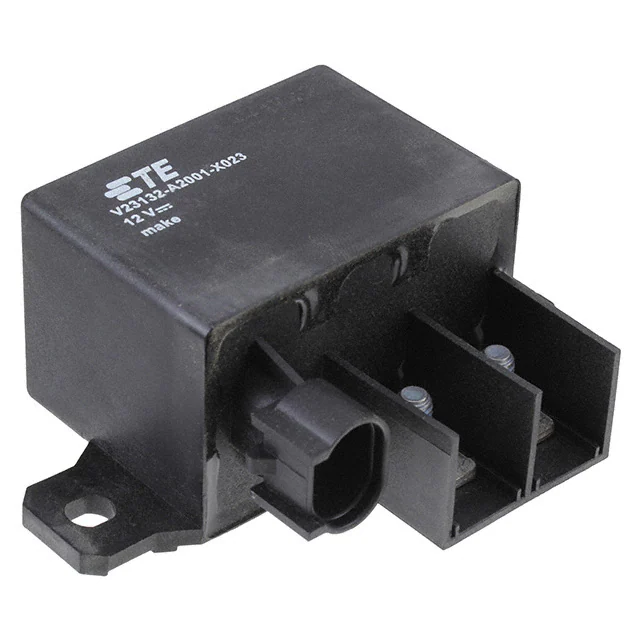

1-1414476-0RELAY AUTOMOTIVE SPST 130A 12V TE Connectivity AMP Connectors |
1,539 |
|
规格书 |
HCR 150 | Bulk | Active | Non Latching | 324 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
4-1393302-1POWER F V23134 TE Connectivity AMP Connectors |
158 |
|
规格书 |
V23134, AXICOM | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
6-1393302-4RELAY AUTOMOTIVE SPDT 60A 24V TE Connectivity AMP Connectors |
173 |
|
规格书 |
F4 | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1393277-4RELAY AUTOMOTIVE SPDT 45A 12V TE Connectivity AMP Connectors |
3,017 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
6-1393302-1V23134A1052X299 TE Connectivity AMP Connectors |
776 |
|
- |
V23134, AXICOM | Box | Active | Non Latching | 133.3 mA | 12VDC | - | - | - | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
1393277-6RELAY AUTOMOTIVE SPDT 40A 12V TE Connectivity AMP Connectors |
3,881 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

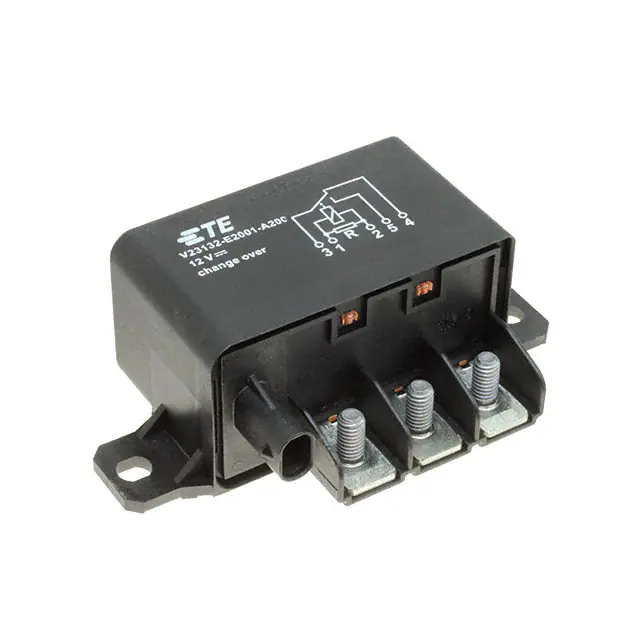

9-1415001-5RELAY AUTOMOTIVE SPDT 130A 12V TE Connectivity AMP Connectors |
3,202 |
|
规格书 |
- | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPDT (1 Form C) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | Resistor | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
3-1414937-3RELAY GEN PURPOSE SPST 70A 24V TE Connectivity AMP Connectors |
4,923 |
|
规格书 |
F7 | Bulk | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
6-1393302-0RELAY GEN PURPOSE SPDT 40A 12V TE Connectivity AMP Connectors |
2,133 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|

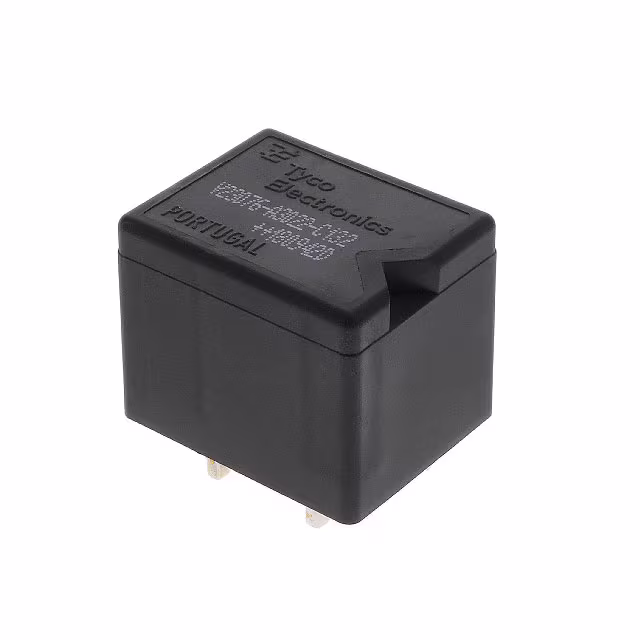

1-1393277-8RELAY AUTOMOTIVE SPST 45A 24V TE Connectivity AMP Connectors |
2,495 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
