购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1904124-3RELAY AUTOMOTIVE SPDT 30A 12V TE Connectivity AMP Connectors |
1,593 |
|
规格书 |
Micro Relay A | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
7-1393302-5RELAY GEN PURPOSE SPST 40A 12V TE Connectivity AMP Connectors |
617 |
|
规格书 |
- | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

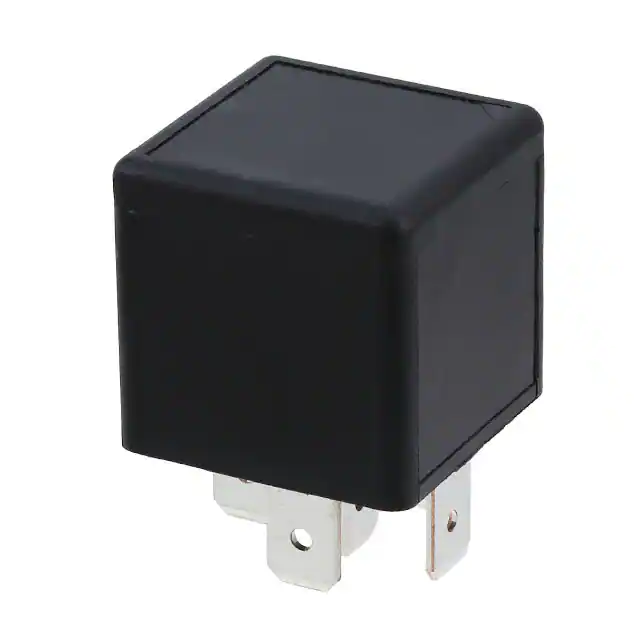

2-1393302-2RELAY AUTOMOTIVE SPDT 60A 12V TE Connectivity AMP Connectors |
2,140 |
|
规格书 |
F4 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

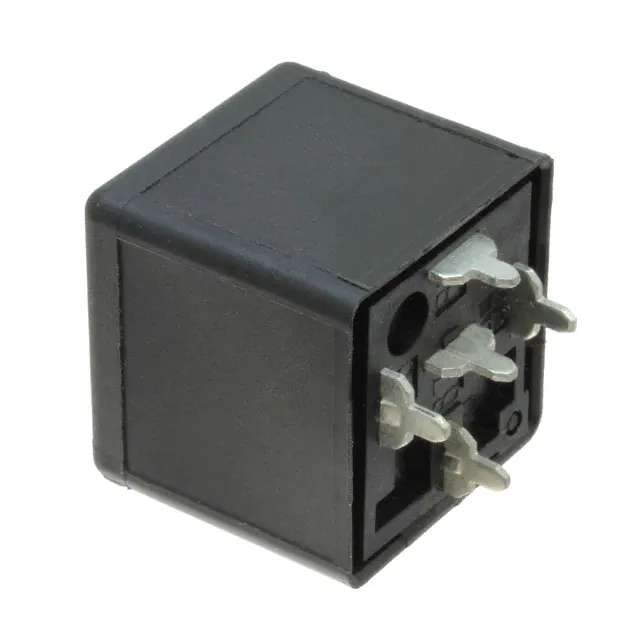

5-1393302-2RELAY GEN PURPOSE SPDT 20A 24V TE Connectivity AMP Connectors |
314 |
|
规格书 |
- | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|

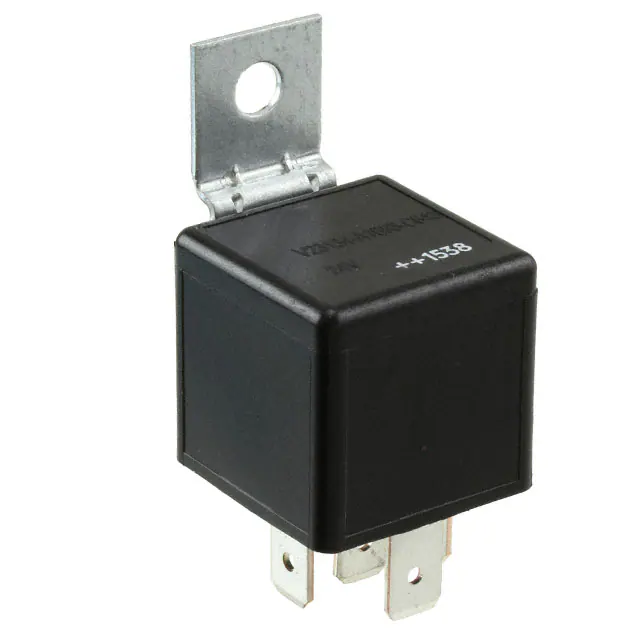

6-1393302-3RELAY AUTOMOTIVE SPDT 60A 24V TE Connectivity AMP Connectors |
283 |
|
规格书 |
F4 | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

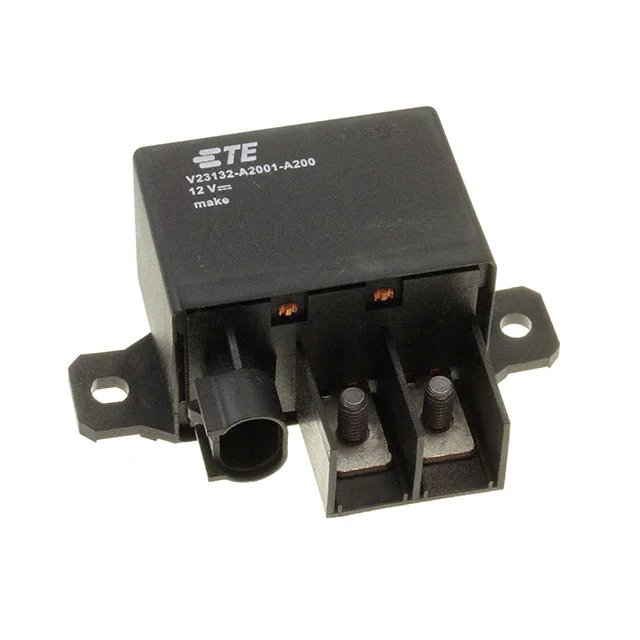

1393315-2RELAY AUTO SPST-NO 130A 12V TE Connectivity AMP Connectors |
354 |
|
规格书 |
HCR 150 | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
1393315-9RELAY AUTO SPST-NO-DM 130A 24V TE Connectivity AMP Connectors |
139 |
|
规格书 |
HCR 150 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
1-1393315-1V23132B2002B200=HCR TE Connectivity AMP Connectors |
1,245 |
|
规格书 |
High Current Relay 150 | Box | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 24VDC - Nom | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
1-1393277-4RELAY AUTOMOTIVE SPST 45A 12V TE Connectivity AMP Connectors |
4,726 |
|
规格书 |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
6-1419137-4RELAY GEN PURPOSE SPDT 25A 12V TE Connectivity AMP Connectors |
431 |
|
规格书 |
- | Bulk | Active | Non Latching | 100.8 mA | 12VDC | SPDT (1 Form C) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 6 ms | 3 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
