购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SVPT560MCAP ALUM POLY 560UF 20% 16V SMD |
315 |
|
规格书 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 16 V | 14mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SEF560MCAP ALUM POLY 560UF 20% 20V TH |
160 |
|
规格书 |
OS-CON™, SEF | Bulk | Active | Polymer | 560 µF | ±20% | 20 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RHS1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD |
3,667 |
|
规格书 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1J390MCL1GSCAP ALUM POLY 39UF 20% 63V SMD |
2,938 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700V477M002PTE009CAP ALUM POLY 470UF 20% 2V SMD |
1,200 |
|
规格书 |
AO-Cap A700 Plus | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875115952001CAP ALUM POLY 6.8UF 20% 100V SMD |
387 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 100 V | 48mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218297003E3CAP ALUM HYBRID 47UF 20% 35V SMD |
9,457 |
|
规格书 |
182 CPHZ | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
PCG1A821MCL1GSCAP ALUM POLY 820UF 20% 10V SMD |
7,171 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0G222MCL1GSCAP ALUM POLY 2200UF 20% 4V SMD |
1,291 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
2R5SVP1500MCAP ALUM POLY 1500UF 20% 2.5V |
178 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 272 mA @ 120 Hz | 5.44 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0J182MCL1GSCAP ALUM POLY 1800UF 20% 6.3V |
2,162 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 1800 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

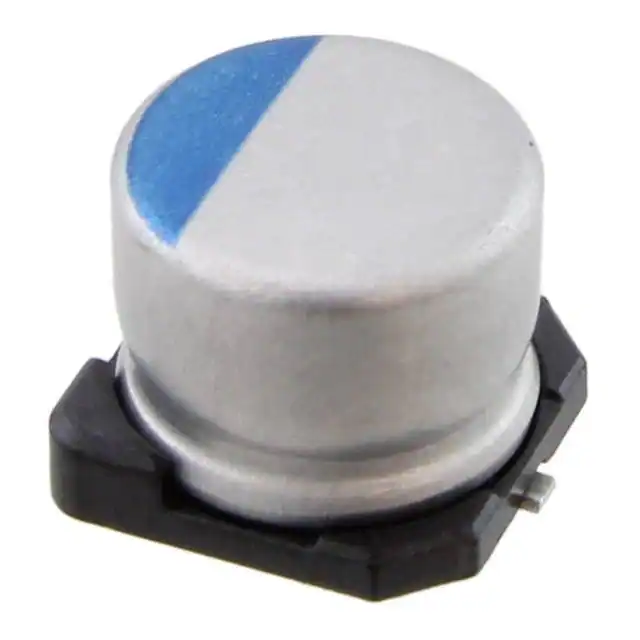

PCX1H100MCL1GSCAP ALUM POLY 10UF 20% 50V SMD |
934 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 50 V | 75mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCG0E272MCL1GSCAP ALUM POLY 2700UF 20% 2.5V |
840 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25SVF330MCAP ALUM POLY 330UF 20% 25V SMD |
835 |
|
规格书 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 79 mA @ 120 Hz | 1.58 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25PHV100M6.3X8CAP ALUMHYB 100UF 20% 25V SMD |
4,568 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
B40920A5477M000CAP ALUMHYB 470UF 20% 25V SMD |
4,015 |
|
规格书 |
B40920 | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
50PHV150M10X12.5CAP ALUMHYB 150UF 20% 50V SMD |
2,918 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 18mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 170 mA @ 100 Hz | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
63PHV68M10X12.5CAP ALUM HYBRID 68UF 20% 63V SMD |
146 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 19mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 160 mA @ 100 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
35PJV390M10X12.5CAP ALUMHYB 390UF 20% 35V SMD |
826 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 175 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
20SVF560MCAP ALUM POLY 560UF 20% 20V SMD |
480 |
|
规格书 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
