购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1E181MDN1KXCAP ALUM POLY 180UF 20% 25V TH |
2,000 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 465 mA @ 120 Hz | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZKE181XUVCAP ALUMHYB 180UF 20% 25V SMD |
267 |
|
规格书 |
ZKU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
AHA1010390M080RCAP ALUM HYBRID 39UF 20% 80V SMD |
5,157 |
|
规格书 |
AHA | Tape & Reel (TR) | Active | Hybrid | 39 µF | ±20% | 80 V | 70mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A767KN336M1JLAE042CAP ALUM POLY 33UF 20% 63V SMD |
3,293 |
|
规格书 |
A767 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 63 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 97.5 mA @ 120 Hz | 1.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

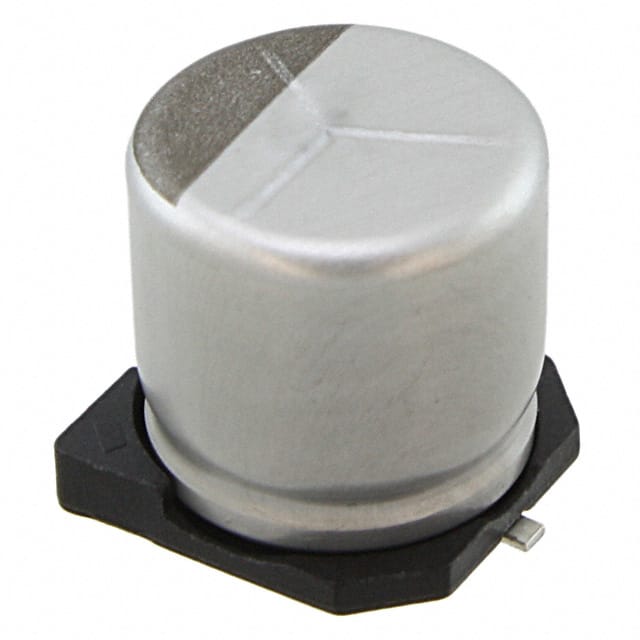

HHXB350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD |
718 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870056175003CAP ALUM POLY 22UF 20% 80V TH |
663 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 80 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
HHXB800ARA390MJA0GCAP ALUM HYBRID 39UF 20% 80V SMD |
624 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 39 µF | ±20% | 80 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCF1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
1,843 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.32 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875075655002CAP ALUM POLY 68UF 20% 35V SMD |
1,142 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1E390MCL1GSCAP ALUM POLY 39UF 20% 25V SMD |
784 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 25 V | 55mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875115852001CAP ALUM POLY 10UF 20% 63V SMD |
146 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZT1J330PCAP ALUM HYBRID 33UF 20% 63V SMD |
958 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 32mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZT1E221PCAP ALUMHYB 220UF 20% 25V SMD |
879 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZT1H680PCAP ALUM HYBRID 68UF 20% 50V SMD |
817 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 405 mA @ 100 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZT1J470PCAP ALUM HYBRID 47UF 20% 63V SMD |
780 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 32mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 360 mA @ 100 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HHXB630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD |
424 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
20SVPK680MCAP ALUM POLY 680UF 20% 20V SMD |
716 |
|
规格书 |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 20 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25PFV330M10X10.5CAP ALUMHYB 330UF 20% 25V SMD |
251 |
|
规格书 |
PFV | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
ECASD41D476M040KA0CAP ALUM POLY 47UF 20% 20V SMD |
6,751 |
|
规格书 |
ECAS | Tape & Reel (TR) | Last Time Buy | Polymer | 47 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
63SXV18MCAP ALUM POLY 18UF 20% 63V SMD |
2,492 |
|
规格书 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 63 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 17 mA @ 120 Hz | 340 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
