购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-V.jpg)
|
HZA157M035F24VT-FCAP ALUMHYB 150UF 20% 35V SMD Cornell Dubilier Knowles |
478 |
|
规格书 |
HZA_V | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
566XMPL020MG19CAP ALUM POLY 56UF 20% 20V SMD Cornell Dubilier Knowles |
3,465 |
|
规格书 |
XMPL | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 2.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
336XMPL025MG19CAP ALUM POLY 33UF 20% 25V SMD Cornell Dubilier Knowles |
3,452 |
|
规格书 |
XMPL | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 2.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
HZC226M050D16T-FCAP ALUM HYBRID 22UF 20% 50V SMD Cornell Dubilier Knowles |
1,831 |
|
规格书 |
HZC | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 75 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
226XMPL035MG19CAP ALUM POLY 22UF 20% 35V SMD Cornell Dubilier Knowles |
3,500 |
|
规格书 |
XMPL | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|

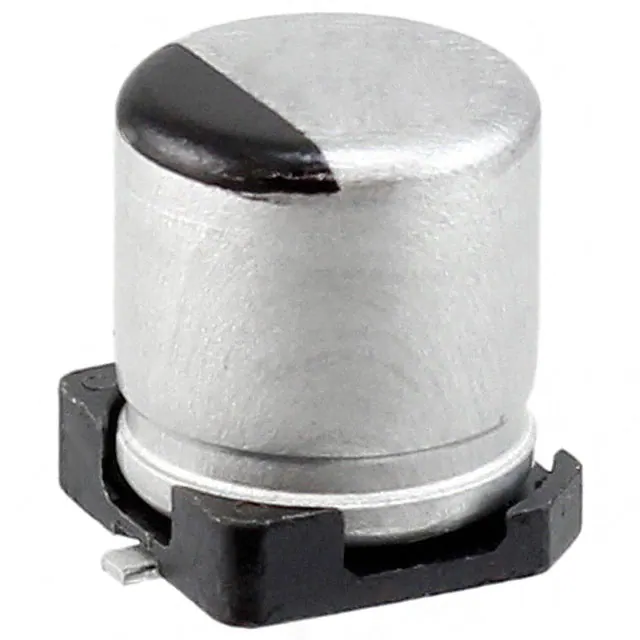

HZA336M025C12T-FCAP ALUM HYBRID 33UF 20% 25V SMD Cornell Dubilier Knowles |
999 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
HZA226M035C12T-FCAP ALUM HYBRID 22UF 20% 35V SMD Cornell Dubilier Knowles |
949 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
475AVG160MFBJCAP ALUM POLY 4.7UF 20% 160V TH Cornell Dubilier Knowles |
3,972 |
|
规格书 |
AVG | Bulk | Active | Polymer | 4.7 µF | ±20% | 160 V | 130mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 36 mA @ 120 Hz | 720 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
|
226AVG100MFBJCAP ALUM POLY 22UF 20% 100V TH Cornell Dubilier Knowles |
3,910 |
|
规格书 |
AVG | Bulk | Active | Polymer | 22 µF | ±20% | 100 V | 40mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 92.5 mA @ 120 Hz | 1.85 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
|
477AVG025MGBJCAP ALUM POLY 470UF 20% 25V TH Cornell Dubilier Knowles |
3,163 |
|
规格书 |
AVG | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 16mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
