购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HZA226M050D16T-FCAP ALUM HYBRID 22UF 20% 50V SMD Cornell Dubilier Knowles |
1,124 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
687AVG025MGBJCAP ALUM POLY 680UF 20% 25V TH Cornell Dubilier Knowles |
37,668 |
|
规格书 |
AVG | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
HZA226M063X16T-FCAP ALUM HYBRID 22UF 20% 63V SMD Cornell Dubilier Knowles |
2,249 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 150 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

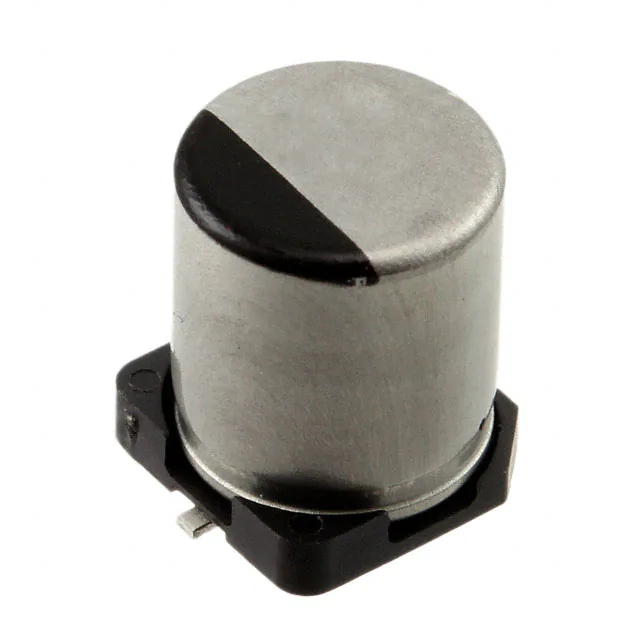

HZA107M025X16T-FCAP ALUMHYB 100UF 20% 25V SMD Cornell Dubilier Knowles |
394 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
-V.jpg)
|
HZA336M080G24VT-FCAP ALUM HYBRID 33UF 20% 80V SMD Cornell Dubilier Knowles |
15,460 |
|
规格书 |
HZA_V | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
106XMPL035MG19CAP ALUM POLY 10UF 20% 35V SMD Cornell Dubilier Knowles |
1,991 |
|
规格书 |
XMPL | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
HZA686M050F24T-FCAP ALUM HYBRID 68UF 20% 50V SMD Cornell Dubilier Knowles |
1,843 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HZA227M025F24T-FCAP ALUMHYB 220UF 20% 25V SMD Cornell Dubilier Knowles |
465 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
126AVG160MGBJCAP ALUM POLY 12UF 20% 160V TH Cornell Dubilier Knowles |
1,715 |
|
规格书 |
AVG | Bulk | Active | Polymer | 12 µF | ±20% | 160 V | 130mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 48 mA @ 120 Hz | 960 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
HZA337M025G24T-FCAP ALUMHYB 330UF 20% 25V SMD Cornell Dubilier Knowles |
724 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
