购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

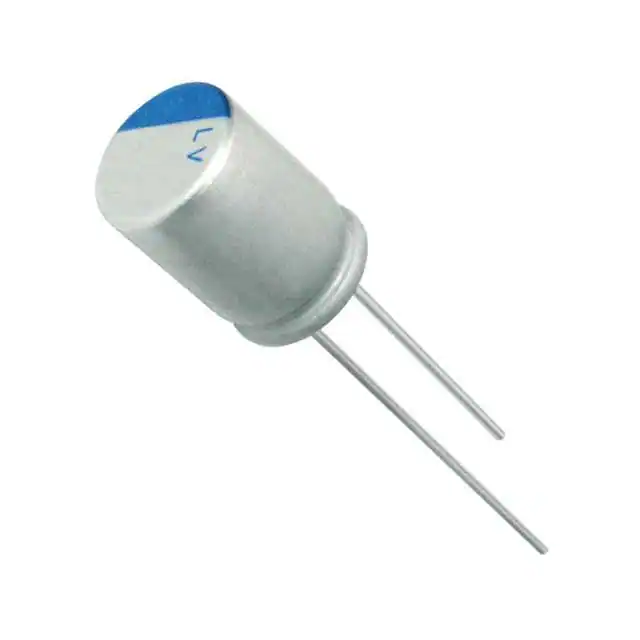

PLV1D151MCL1TDCAP ALUM POLY 150UF 20% 20V TH |
2,230 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 20 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLV1V560MCL1TDCAP ALUM POLY 56UF 20% 35V TH |
4,571 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 56 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLV1H330MCL1TDCAP ALUM POLY 33UF 20% 50V TH |
3,167 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 33 µF | ±20% | 50 V | 32mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLV1J270MDL1TDCAP ALUM POLY 27UF 20% 63V TH |
1,122 |
|
规格书 |
PLV | Tape & Box (TB) | Obsolete | Polymer | 27 µF | ±20% | 63 V | 33mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
ECASD91A157M010K00CAP ALUM POLY 150UF 20% 10V SMD |
3,110 |
|
规格书 |
ECAS | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 10 V | 10mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD41B106M055K00CAP ALUM POLY 10UF 20% 12.5V SMD |
3,184 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 55mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD91B107M012K00CAP ALUM POLY 100UF 20% 12.5V |
1,590 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 12.5 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD41C685M070K00CAP ALUM POLY 6.8UF 20% 16V SMD |
1,400 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 6.8 µF | ±20% | 16 V | 70mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
SPSX271M02RCAP ALUM POLY 270UF 20% 2V SMD |
1,228 |
|
规格书 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLG0E392MD01CAP ALUM POLY 3900UF 20% 2.5V TH |
4,940 |
|
规格书 |
PLG | Bulk | Obsolete | Polymer | 3900 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEF-CD0D101ERCAP ALUM POLY 100UF 20% 2V SMD |
4,019 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0E101ERCAP ALUM POLY 100UF 20% 2.5V SMD |
4,274 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0G820ERCAP ALUM POLY 82UF 20% 4V SMD |
4,315 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 4 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0J100ERCAP ALUM POLY 10UF 20% 6.3V SMD |
3,754 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 6.3 V | 55mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0J330ERCAP ALUM POLY 33UF 20% 6.3V SMD |
4,826 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 6.3 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0J470ERCAP ALUM POLY 47UF 20% 6.3V SMD |
3,867 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0K150ERCAP ALUM POLY 15UF 20% 8V SMD |
3,857 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 8 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD0K220ERCAP ALUM POLY 22UF 20% 8V SMD |
2,685 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 8 V | 28mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
|
EEF-CD1C8R2ERCAP ALUM POLY 8.2UF 20% 16V SMD |
4,853 |
|
规格书 |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 8.2 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
EEF-SL0D100RCAP ALUM POLY 10UF 20% 2V SMD |
3,212 |
|
- |
SP-Cap SL | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 2 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | - | Surface Mount |
